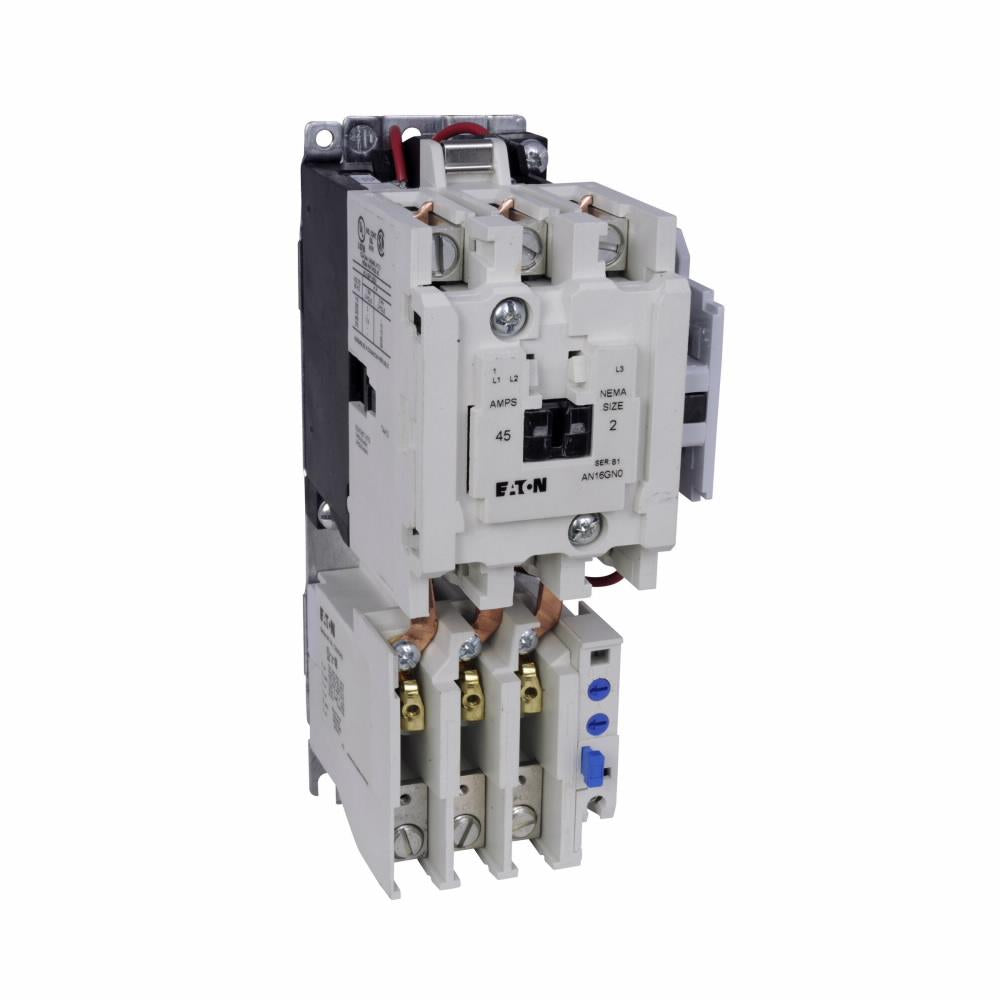

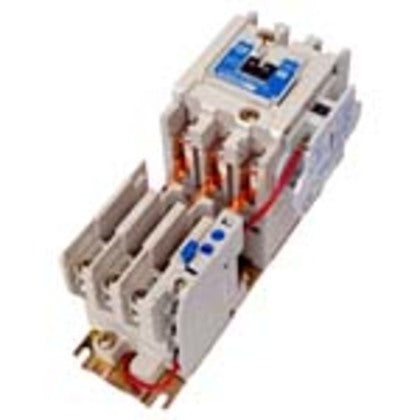

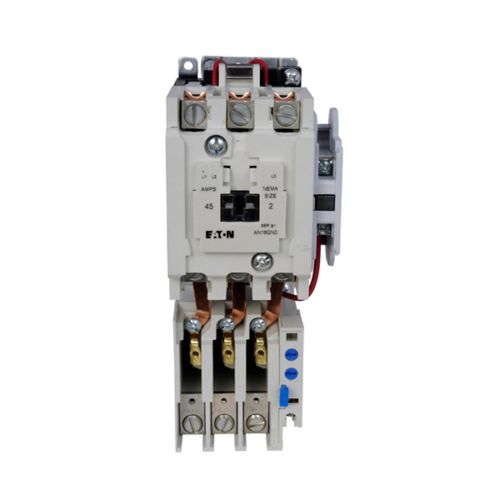

Eaton AN16GN0TB Freedom NEMA Starter 25 hp Size 2

Product Description

The EATON AN16GN0TB Freedom series adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. Features interchangeable heater packs and overload protection up to 900 hp. It also features a full line of snap-on accessories common to both IEC and NEMA devices. The starter has a current rating of 45 Amps and a voltage rating of 600VAC.

• Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring
• Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout

Product Highlights

The EATON AN16GN0TB starter is for use with motor control systems. It is a 3 Pole starter with a current rating of 45 Amps and a voltage rating of 600VAC.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN16GN0TB
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 45 A
• Frequency Rating: 50/60 Hz
• Motor Power: 25 hp
• Overload Relay: C306 Bimetal
• Series: Freedom
• Voltage Rating: 600 VAC
• Type: Full Voltage Open
• Coil Voltage: 24 VDC
• Action: Non-Reversing
• Number of Poles: 3
• Enclosure Type: NEMA 2
• Product Length/Depth: 4.94 in
• Product Height: 3.31 in
• Product Width: 4.38 in
• Certifications: CSA Certified UL Listed
• Catalog Notes: Heater Packs must be purchased separately
• Product Type: Motor control starter
• Special features: Starter w/C306 bi-metal OLR
• HP rating - max: 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
• Phase: Single-phase, three-phase
• Size: 2
• Mounting: Horizontal
• UNSPSC: 39121521
• Application: Electrical Assemblies, Panels and OEMs Applications
• Current Rating: 45 A
• Frame Type: 2 Frame (65mm)
• Motor FLA Range: Heaters Purchased Separately
• Primary Type: DOL Starter
• Poles: 3
• Approval: UL, CSA, NEMA
• For Use With: Motor Control Systems
• Nema Size: 2
• Coil Volts: 24V at 60Hz
• Construction Standard: NEMA 600V AC
• UL Cont. Amps: 45A
• Hp 1-Phase 115V: 3 Hp
• Hp 1-Phase 230V: 7.5 Hp
• Hp 3-Phase 200V: 10 Hp
• Hp 3-Phase 230V: 15 Hp
• Hp 3-Phase 460V: 25 Hp
• Hp 3-Phase 575V: 25 Hp
• Enclosure: Open
• Auxiliary Contacts: (1) NO Side Mounted
• Contact Configuration: 1 NO
