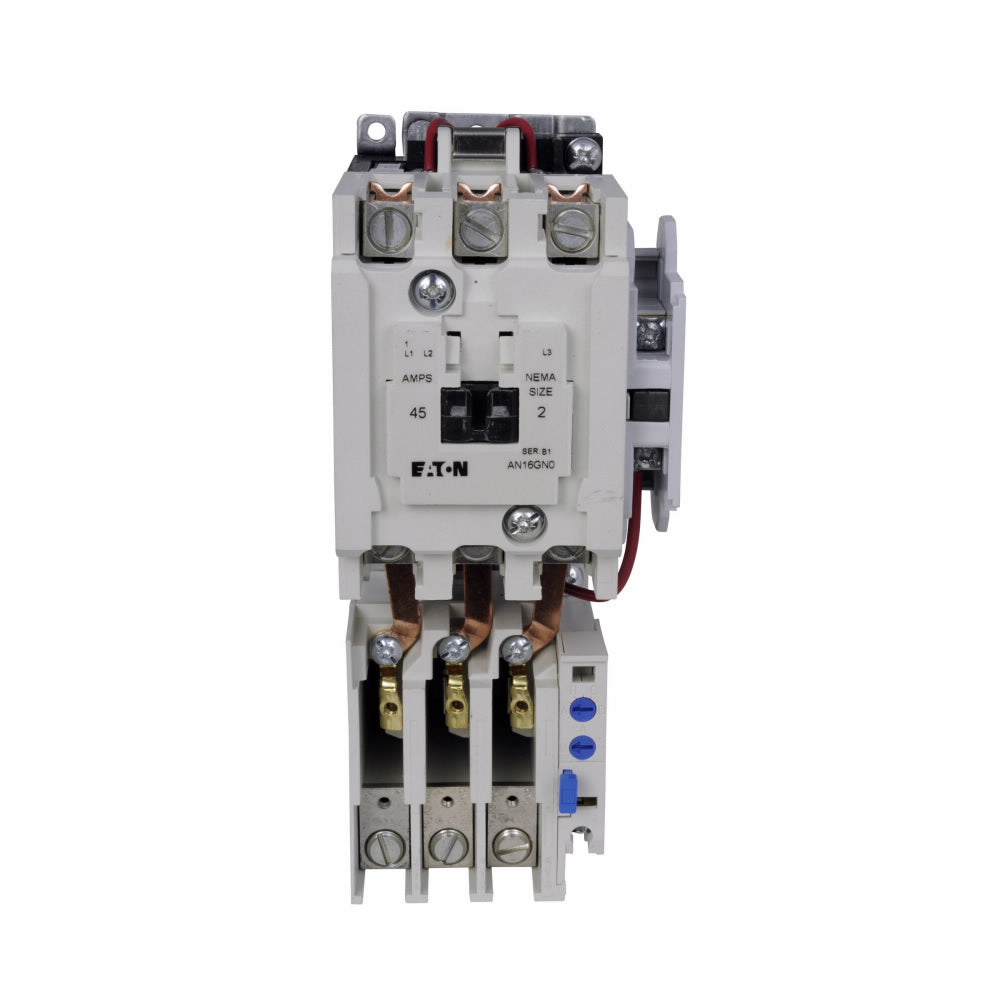

Eaton AN16GN0CB Motor Control Starter Size 2 Non-Reversing

Product Description

Eaton offers the AN16GN0CB, a robust non-reversing motor control starter designed to manage and protect motors in industrial settings. With a size 2 configuration and versatile 480V/60Hz or 440V/50Hz coil voltage, this starter is suitable for a broad range of applications.

• Compact and efficient design, easily integrated into various setups.
• Equipped with a three-pole system providing comprehensive motor control.
• Features a bimetallic overload relay for reliable protection.

Product Highlights

This Eaton motor starter is engineered for peak performance, supporting motors from 3 horsepower at 115 volts to 25 horsepower at 480 volts. Its manual and automatic reset options provide flexible response to faults.

Product Information

Standard Information

• Brand: Eaton
• MPN: AN16GN0CB
Technical Specifications
Amperage
45 Amp
Motor Power Range
Up to 25 HP
Coil Voltage
480V/60Hz, 440V/50Hz
Size
2
Mounting Type
Horizontal
Number of Poles
3
Phase
3
Standards
UL Listed, CSA Certified
