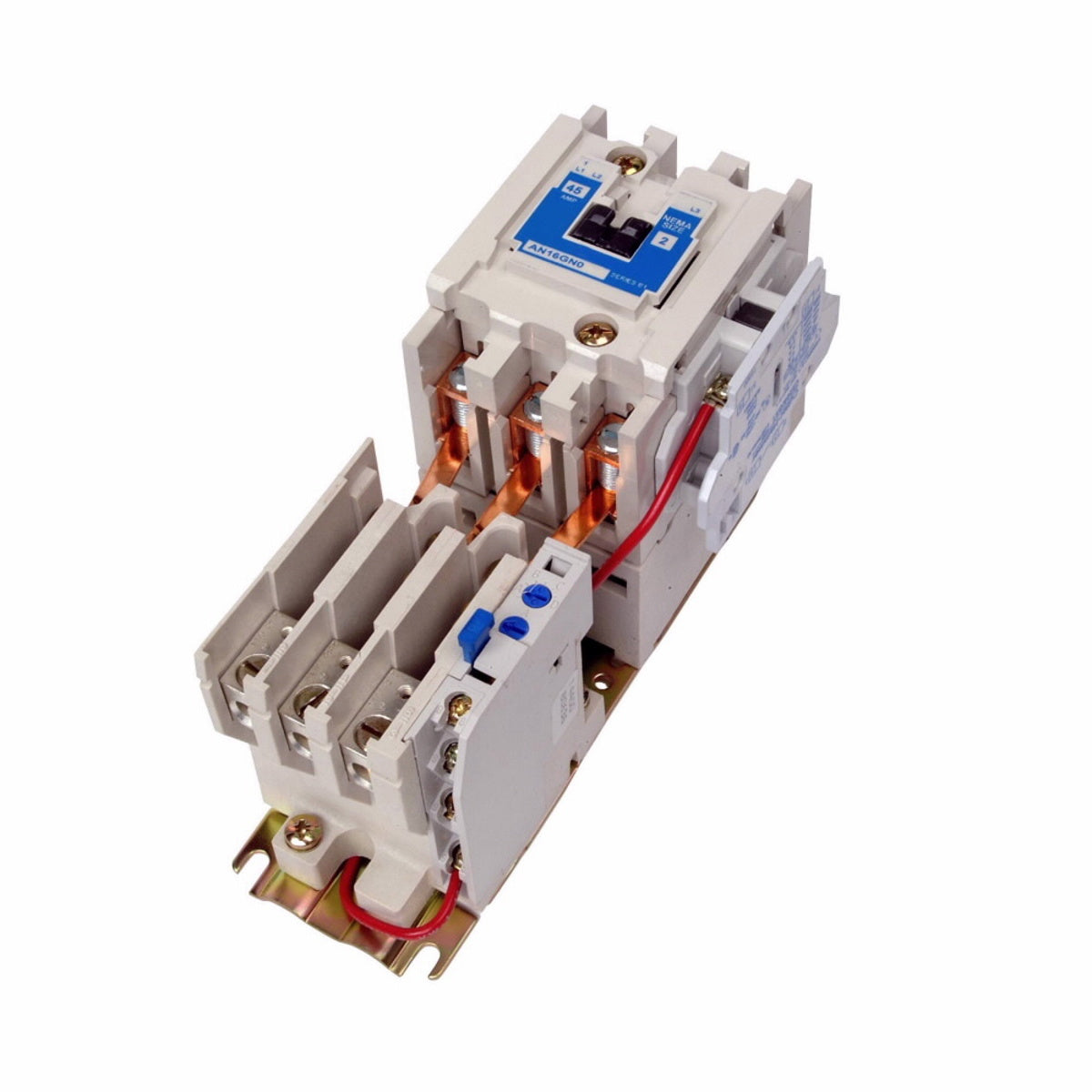

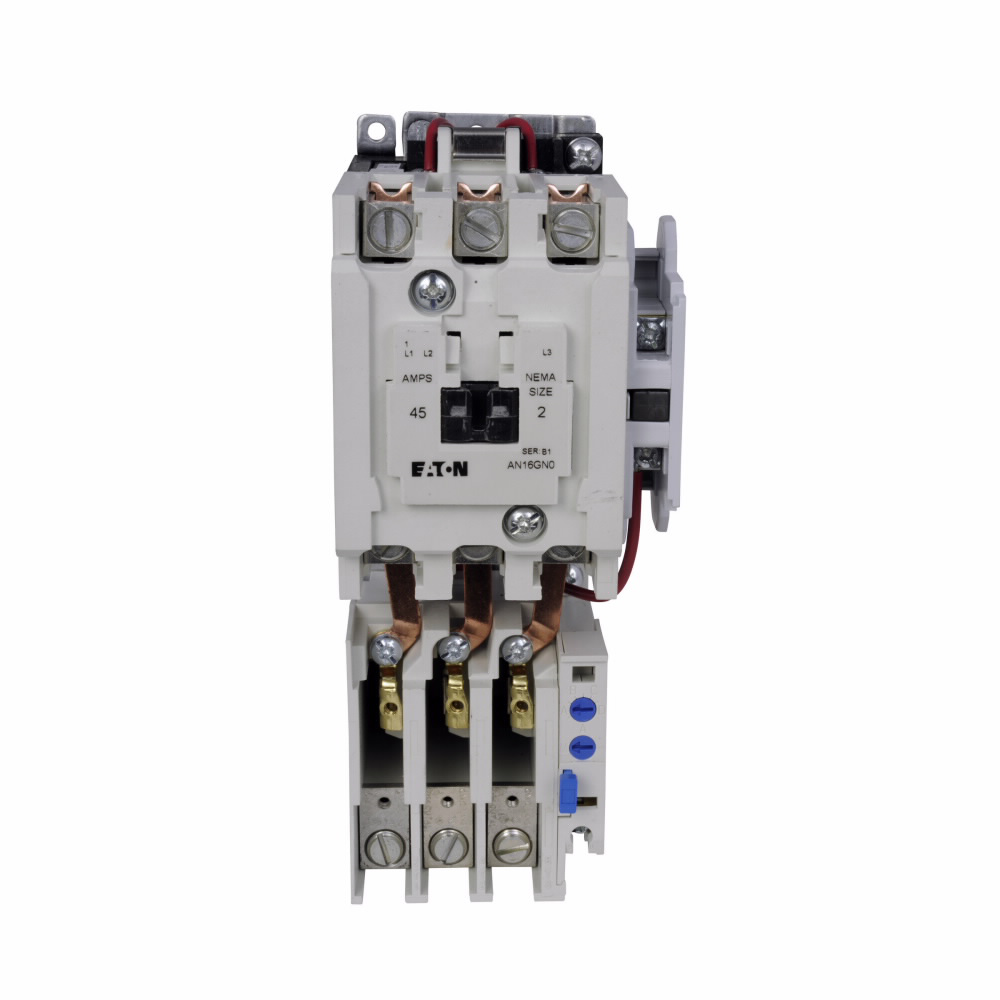

Eaton AN16GN0AB Nema Freedom Series Motor Control Starter 120V 45A Size 2

Product Description

The Eaton AN16GN0AB is a Nema Freedom Series motor control starter designed for reliable performance in industrial environments. This non-reversing starter operates at a voltage of 120V at sixty hertz or 110V at fifty hertz and supports up to 45 amps, making it suitable for various applications. It is designed with a three-pole configuration and is categorized as size two, allowing it to manage significant electrical loads.

• 120V or 110V coil voltage options
• Three-pole configuration for enhanced control
• Specifically designed for stationary machinery

Product Highlights

This motor control starter is ideal for controlling electric motors in industrial settings, including manufacturing and outdoor equipment operation. The Eaton Freedom Series ensures efficient operation and addresses the power control needs of stationary machinery.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: AN16GN0AB

Technical Specifications

• Voltage Rating: 120V/110V
• Amperage: 45 Amps
• Number of Poles: 3
• Coil Voltage: 120V at 60 Hz, 110V at 50 Hz
• NEMA Size: 2
• Mounting Type: Horizontal
• Special Features: Starter with C306 bi-metal overload relay
• Country of Origin: Dominican Republic
