Eaton AN13P Freedom NEMA overload relay 0.25-26.2A

Product Description

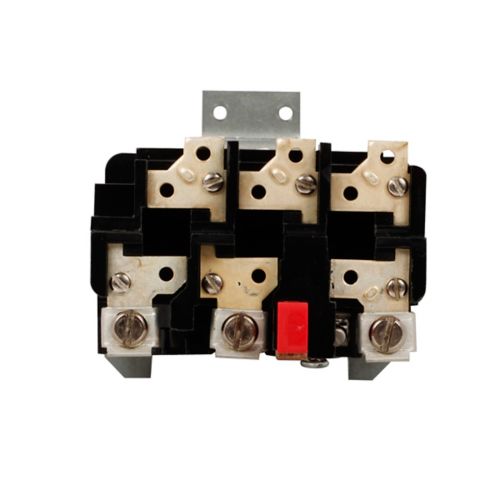

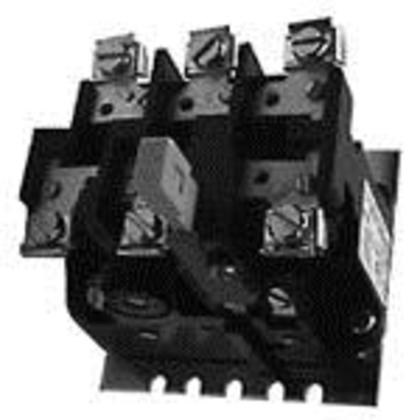

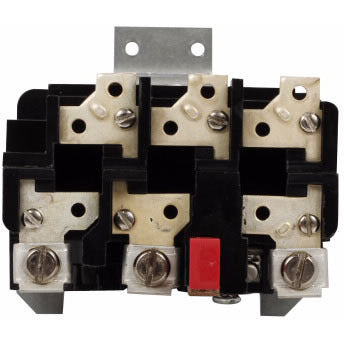

The Eaton AN13P Freedom NEMA overload relay is designed to protect industrial motors against overload conditions. This three-pole, panel-mounted relay features a NEMA A200 thermal overload design and provides class 20 operation. It includes a 1NC auxiliary contact and a full load range of 0.25-26.2A.

• NEMA A200 Thermal Overload Relay
• Panel mounted
• Full load range .25-26.2A

Product Highlights

The Eaton AN13P overload relay provides reliable motor protection with its thermal overload design and easy panel mounting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN13P
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton Freedom NEMA overload relay
• Catalog Number: AN13P
• UPC: 786678246260
• Product Length/Depth: 4.8 in
• Product Height: 3.4 in
• Product Width: 3.5 in
• Certifications: CSA Certified UL Listed
• Catalog Notes: 3-Pole Type B Overload Relay is a suitable alternative to a 3-Pole Type A Overload Relay in Manual Reset Mode
• Product Type: Overload relay
• Modification: 1NC Auxiliary Contact
• Design: NEMA
• Full load current range: 0.25-26.2A
• Mounting: Panel
• Number of poles: Three-pole
• Special features: Heaters required
• Trip Type: Thermal Type A, Class 20
• Type: A200
• UNSPSC: 39122330
• Application: Contactors, Motor and Power Control Equipment, Industrial Facilities and Factories Facility Applications
• Mounting Type: Panel
• Terminal Type: Threaded
• Enclosure Type: NEMA 5
• Series: A200
• Amperage Rating: 0.25/26.2 A
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Thermal Overload Relay (TOR)
• Product series / family name: NEMA - A200 Series
• Sub-range name: AN
• Functions: Thermal Overload Protection Relay (TOR) - Bimetallic - with inverse time-delay trip
• Rated current: 0.25A - 26.2A
• Poles: 3 Pole(s)
• Trip unit type: Bi-metal
• Protection settings: (Thermal Overload) 0.25A - 26.2A
• Normally Closed (NC) auxiliary contacts: 1 NC contacts
• Minimum current: 0.25 A
• Maximum current: 26.2 A
• Manufacturer product status: Commercialized
• Rated Voltage (AC) - Phase-to-phase: 600 V
• UPC code: 78667824626
• Mounting mode: Panel
• Protection functions: Thermal overload Class 20
• Condition: Seller refurbished
• Brand: N/A
• Country of Origin: United States
• Category: Business & Industrial > Industrial Automation & Motion Controls > Industrial Automation & Motion Controls > Drives & Starters > Starters > Starter Parts & Accessories
