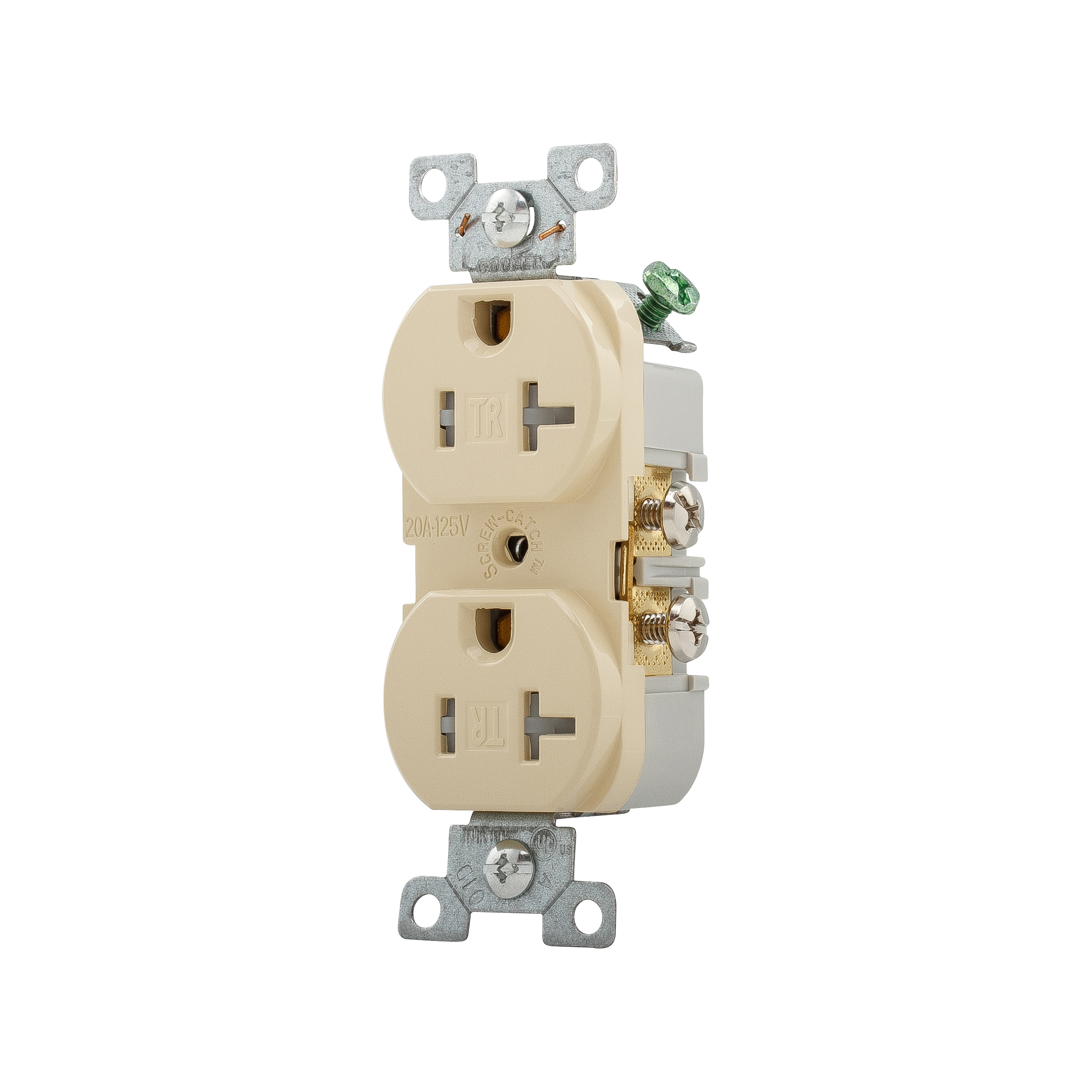

Eaton AHTRCR20V Duplex Receptacle 20A 125V

Product Description

The EATON AHTRCR20V is a tamper-resistant duplex receptacle rated for 20 amps at 125 volts on a 2-pole, 3-wire straight configuration. The ivory finish and standard duplex form factor make it a direct fit for commercial and residential electrical rough-in work. Tamper-resistant shutters meet NEC requirements for protection against foreign object insertion, a code-required feature in dwelling units and many commercial occupancies. Licensed electricians install this device as part of branch circuit wiring where 20-amp outlet capacity is required.

This receptacle is suited for standard 20-amp branch circuits in residential, light commercial, and institutional settings. Typical applications include kitchen countertop circuits, bathroom circuits, garage circuits, and any location where the NEC mandates tamper-resistant protection. The straight-blade, NEMA 5-20R configuration accepts both 15-amp and 20-amp straight-blade plugs.

Key Features

• Tamper-resistant shutters for NEC-compliant installation in dwelling units and other required locations
• Rated 20 amps at 125 volts, 2-pole, 3-wire straight configuration
• NEMA 5-20R straight-blade outlet accepts 15-amp and 20-amp plugs
• Ivory finish for standard wall plate compatibility
• Duplex design provides two outlets per device

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard single-gang electrical boxes used in 20-amp branch circuit wiring.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a voltage tester before wiring or replacing any receptacle. Secure the device with the provided mounting screws and ensure proper grounding to the grounding terminal before closing the wall plate.

Technical Specifications

• Amperage: 20 amps
• Voltage: 125 volts
• Configuration: 2-pole, 3-wire straight
• NEMA Configuration: 5-20R
• Finish: Ivory
• Tamper Resistant: Yes
• UPC: 032664722820

Standard Information

• Brand: EATON
• Manufacturer Part Number: AHTRCR20V
