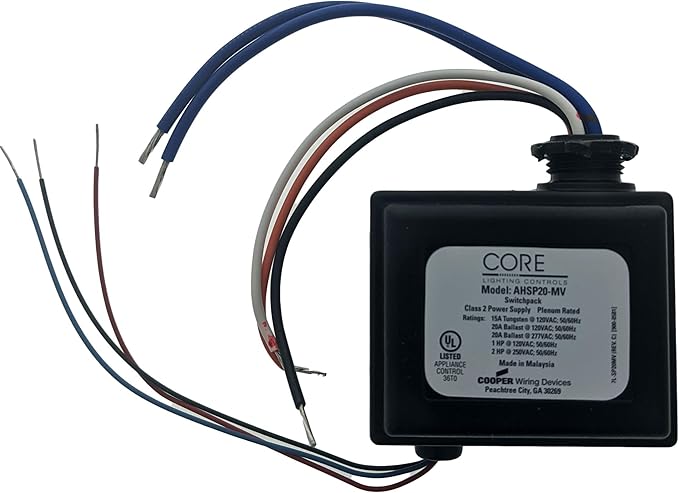

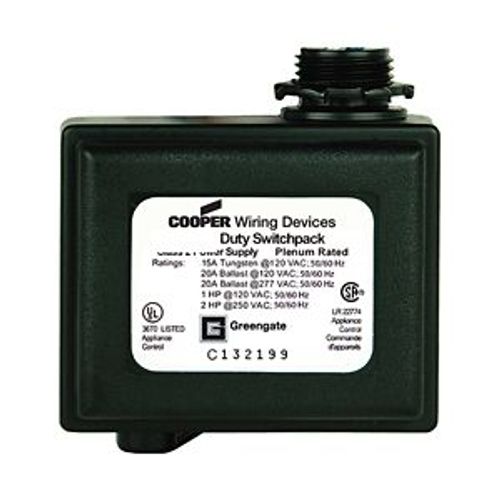

Eaton AHSP20-MV Heavy Duty Switchpack 20A Max 120/277V

Product Description

The Eaton AHSP20-MV heavy duty switchpack has a 20A max, and is rated for external junction box applications. Operating at 120/277V, it provides an output of 15 Vdc, 125 mA for up to 5 occupancy sensors. It is designed for use with magnetic and electronic ballasts, tungsten, and motor loads in industrial applications.

• 20 Amps
• 120/277V
• Teflon coated wire leads

Product Highlights

This heavy duty switchpack is California Title 24 compliant and suitable for plenum installations. It is designed for use with low voltage sensors.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AHSP20-MV

Technical Specifications

• Amperage: 20
• Product Type: Heavy Duty Switchpack
• Application: Industrial
• Voltage: 120/277V
• SKU: AHSP20-MV
• Product Length/Depth: 3.5 in
• Product Height: 2.5 in
• Product Width: 4 in
• Used with: Magnetic and electronic ballasts, tungsten and motor loads
• Frequency rating: 50/60 Hz
• Special features: California Title 24 compliant
• Type: Heavy duty switchpack
• Amperage Rating: 20A max
• Voltage rating: 120/277 V
• Device grade: Specification
• Wiring method: Teflon coated wire leads
• Contact type: Isolated
• Mounting method: 4 sq NEMA junction box Plenum rated for external junction box
• Operating temperature: -35 to 66 �C
• Output: 15 Vdc 125 mA operating up to 5 occupancy sensors
• Part Number: AHSP20-MV
• Certificate: RoHS Compliant
• Material: Nylon
• Maximum Amperage: 20 Amp
• Maximum Voltage: 120V-277V
• Product Dimensions: 3.50-in X 4-in X 2.50-in
• Manufacturer: Cooper Wiring Devices
• Item model number: AHSP20-MV
• Wattage: 2400 watts
• Switch Type: Multiple
• Mounting Type: Panel Mount
• Switch Style: Solid-state
• Included Components: Item
• Batteries Included?: No
• Batteries Required?: No
