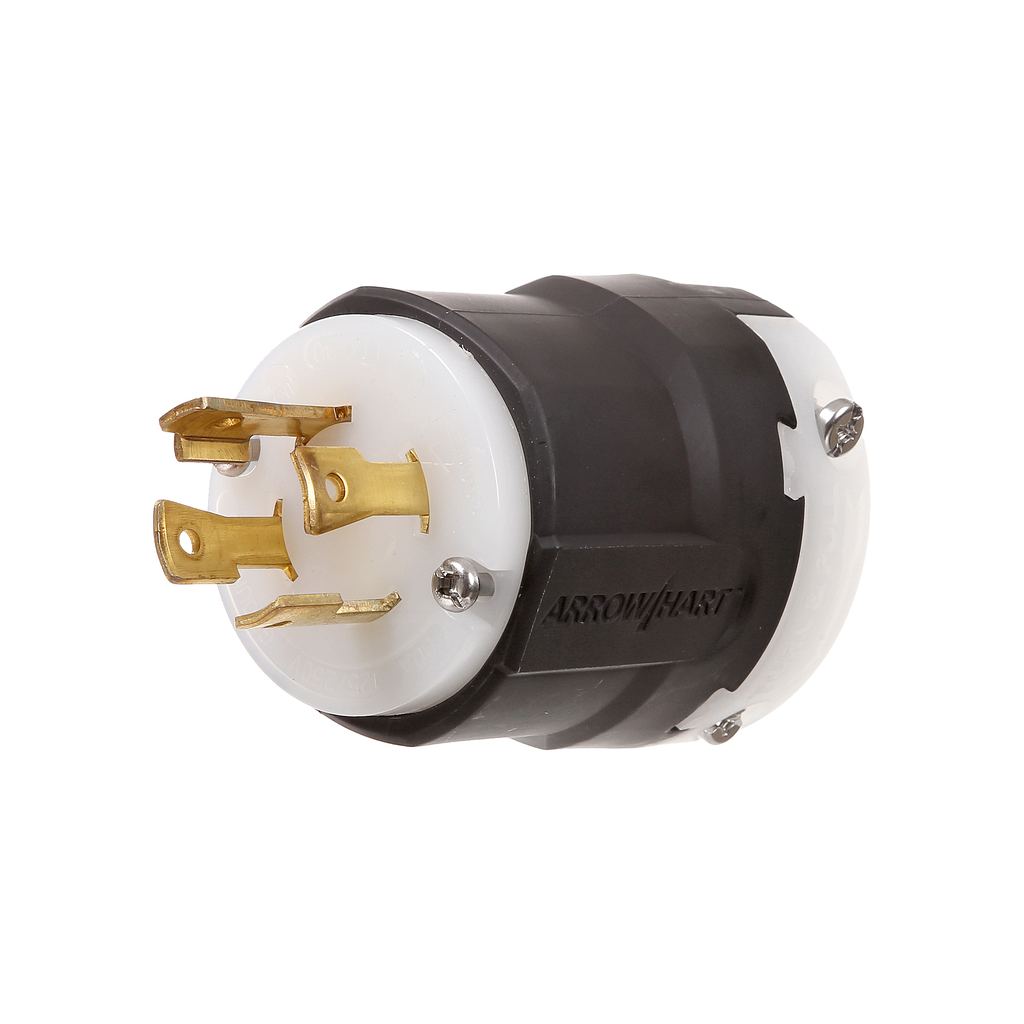

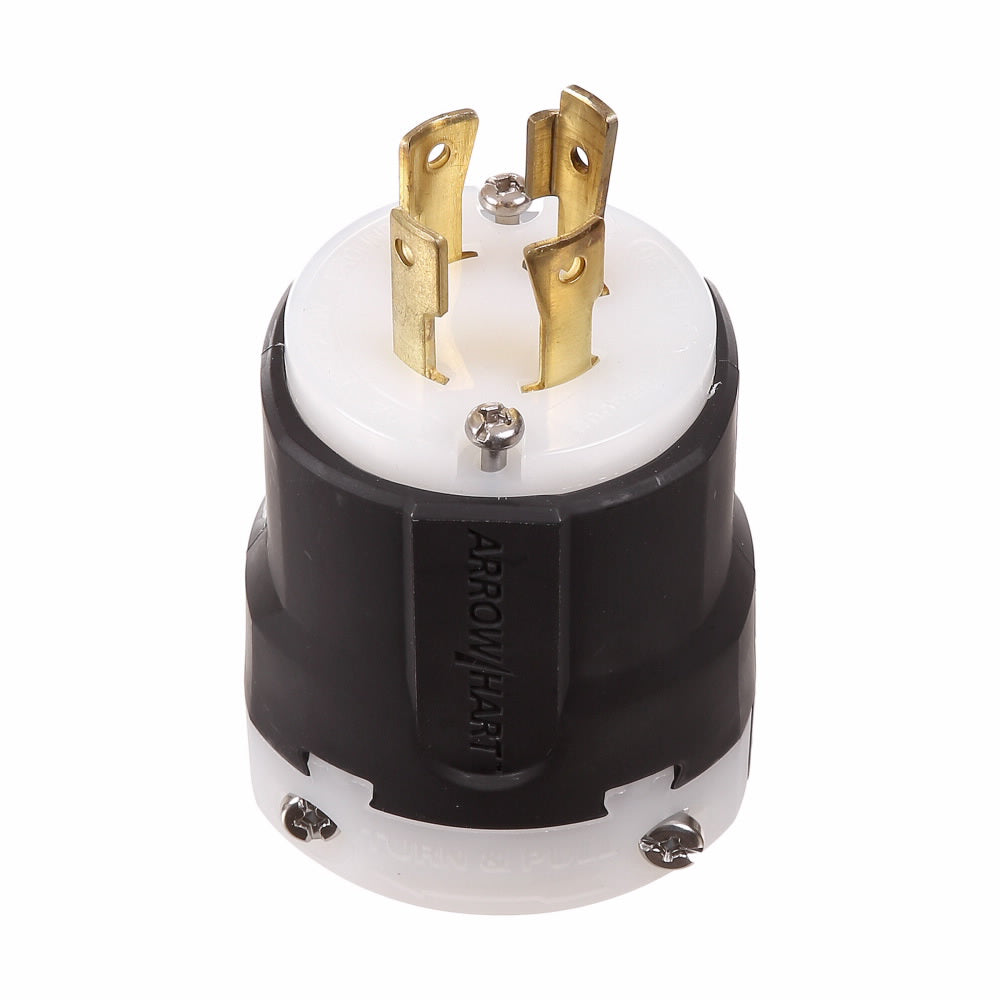

Eaton AHL1430P Arrow Hart Wiring 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30

Product Description

Eaton AHL1430P is a locking plug designed for industrial use. It features a three-pole and four-wire configuration, rated for thirty amps and 125/250 volts. This locking plug uses nylon for durability and is compatible with 16 to 8 AWG wire sizes.

• Compatible with NEMA L14-30 standards.
• Temperature range of -40 degrees Celsius to 60 degrees Celsius.
• Features EPDM gasket to keep out dust and debris.

Product Highlights

This device is ideal for safely connecting power to equipment where secure connections are essential. The plug's design allows for easy installation and inspection of wiring connections.

Product Information

Standard Information

• Brand: Eaton
• MPN: AHL1430P

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125/250 VAC
• NEMA Rating: L14-30
• Number of Poles: 3
• Number of Wires: 4
• Material: Nylon
• Weight: 0.39 lb
• Dimensions: 2.4 in diameter by 2.82 in length
• Temperature Rating: -40 to 60 degrees Celsius
