Eaton AHCL830R CWD CCL Recp 30A 480V 2P3W

Product Description

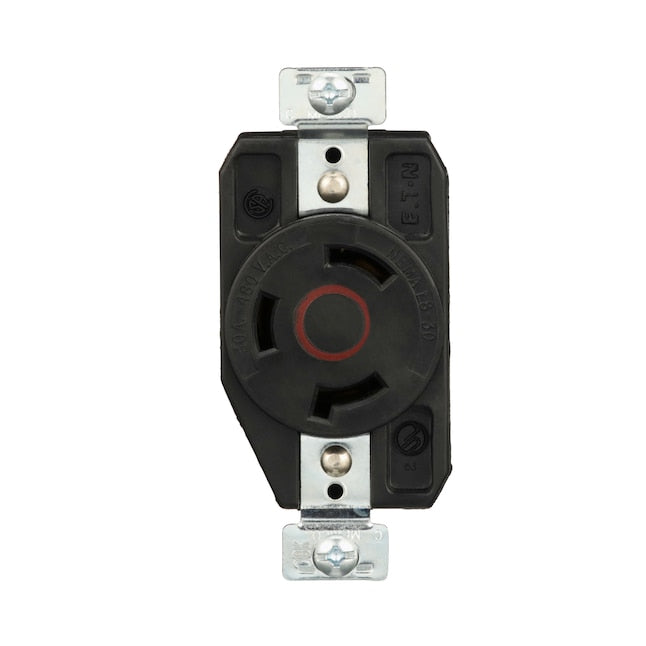

The EATON AHCL830R Arrow Hart locking receptacle is a color-coded single ultra grip, designed for industrial applications. Rated at 480 VAC and 30 A, this receptacle features a 2-pole, 3-wire configuration with an L8-30 NEMA rating. It accommodates cord diameters from 0.375 to 1.156 inches and operates in temperatures from -40 to 158 deg F.

• Voltage color coding
• Rugged glass filled nylon body
• Clearly marked rating, NEMA configuration and approval listings on receptacle face

Product Highlights

Industrial grade locking receptacle with glass-filled nylon construction and color-coded voltage identification.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AHCL830R

Technical Specifications

• Amperage Rating: 30 A
• Application: Industrial Facilities and Factories
• Cord Diameter: 0.375 to 1.156 in
• Grade: Industrial
• Manufacturer Part Number: AHCL830R
• Material: Glass Filled Nylon
• NEMA Rating: L8-30
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: CSA Certified|NAFTA Certified|NOM Certified|RoHS Compliant|UL Listed
• Temperature Rating: -40 to 158 deg F
• Terminal Type: Back/Side Wire Clamp
• Type: Color Coded Single Ultra Grip
• Voltage Rating: 480 VAC
• Product Length/Depth: 1.62 in
• Product Height: 3.64 in
• Product Width: 1.03 in
• Compliances: RoHS Compliant, NAFTA
• Certifications: CSA Certified, UL Listed, NOM
• Product Type: Color Coded Locking
• Special features: Voltage Color Coding
• Wiring method: Back and side
• Operating temperature: -40 to 70 °C (-40 to 158 °F)
• Allowable wire size: #14-8 AWG
• Torque rating: 20 lbf-inch
• Design type: Ultra grip
• Face/body material: Glass filled nylon
• Number of Outlets: 1
• Output Voltage: 480 V
• Control Style: 2-Pole
• Maximum Amperage: 30 Amp
• Maximum Voltage: 480V
