Eaton AHCL1830R Cwd Ahcl1830r 4p 4wr 30a Rcp

Product Description

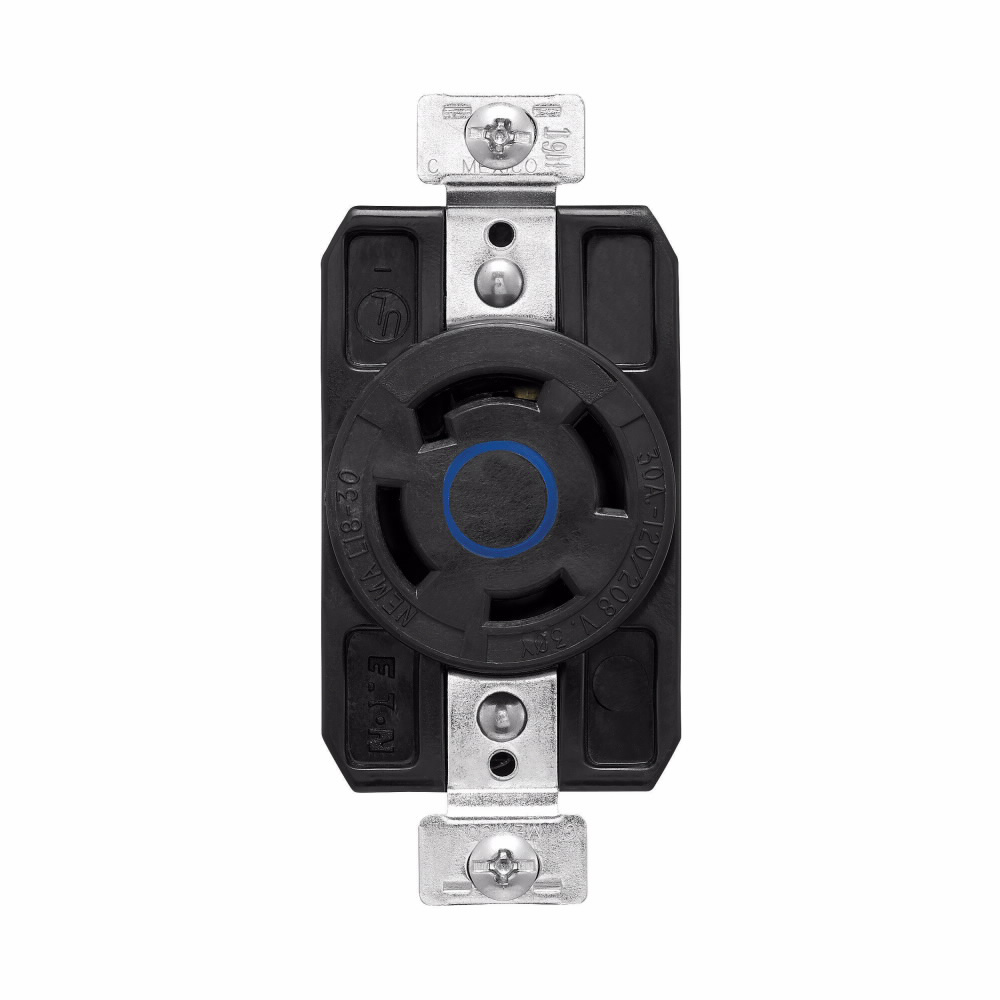

The EATON AHCL1830R is a locking receptacle. This 30 Amp, 120/208 Volt receptacle features a rugged glass filled nylon body and voltage color coding. It is designed for industrial facilities and factories. Clearly marked rating, NEMA configuration and approval listings are on the receptacle face.

• Voltage color coding
• Rugged glass filled nylon body
• Back and side wiring terminal clamps for easy, secure wiring

Product Highlights

The EATON AHCL1830R locking receptacle is ideal for industrial applications. It features a durable design and easy wiring.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AHCL1830R

Technical Specifications

• Type: Locking Receptacle
• Brand: Eaton
• Height: 3.64 Inch
• Length: 1.62 Inch
• Voltage: 120/208 Volt
• Amperage: 30 Amp
• Material: Nylon
• Product UPC: 03266475848
• 12-Digit UPC: 032664758485
• Number of Poles: 4 Pole
• Operating Temperature: 158 degrees F
• Amperage Rating: 30 A
• Application: Industrial Facilities and Factories
• Cord Diameter: 0.375 to 1.156 in
• Grade: Industrial
• Manufacturer Part Number: AHCL1830R
• NEMA Rating: L18-30
• Number of Wires: 4
• Standards/Approvals: CSA Certified|Federal Specification Classification 6233 01|NAFTA Certified|NOM Certified|RoHS Compliant|UL Listed
• Temperature Rating: -40 to 158 deg F
• Terminal Type: Back/Side Wire Clamp
• Voltage Rating: 120/208 VAC
• Product Name: Eaton Arrow Hart Color Coded Locking Receptacle
• Catalog Number: AHCL1830R
• Product Length/Depth: 1.62 in
• Product Width: 1.06 in
• Compliances: RoHS Compliant, NAFTA
• Certifications: CSA Certified, UL Listed, NOM, Federal Specification Classification 6233 01
• Product Type: Color Coded Locking
• Special features: Voltage Color Coding
• Wiring method: Back and side
• Allowable wire size: #14-8 AWG
• Torque rating: 20 lbf-inch
• Design type: Ultra grip
• Face/body material: Glass filled nylon
• Maximum Voltage: 208V
• Control Style: 4-Pole
