Eaton AHCL1630C CWD AHCL1630C CCL CONN 30A 480V 3PH 3P4W-RD&BK

Product Description

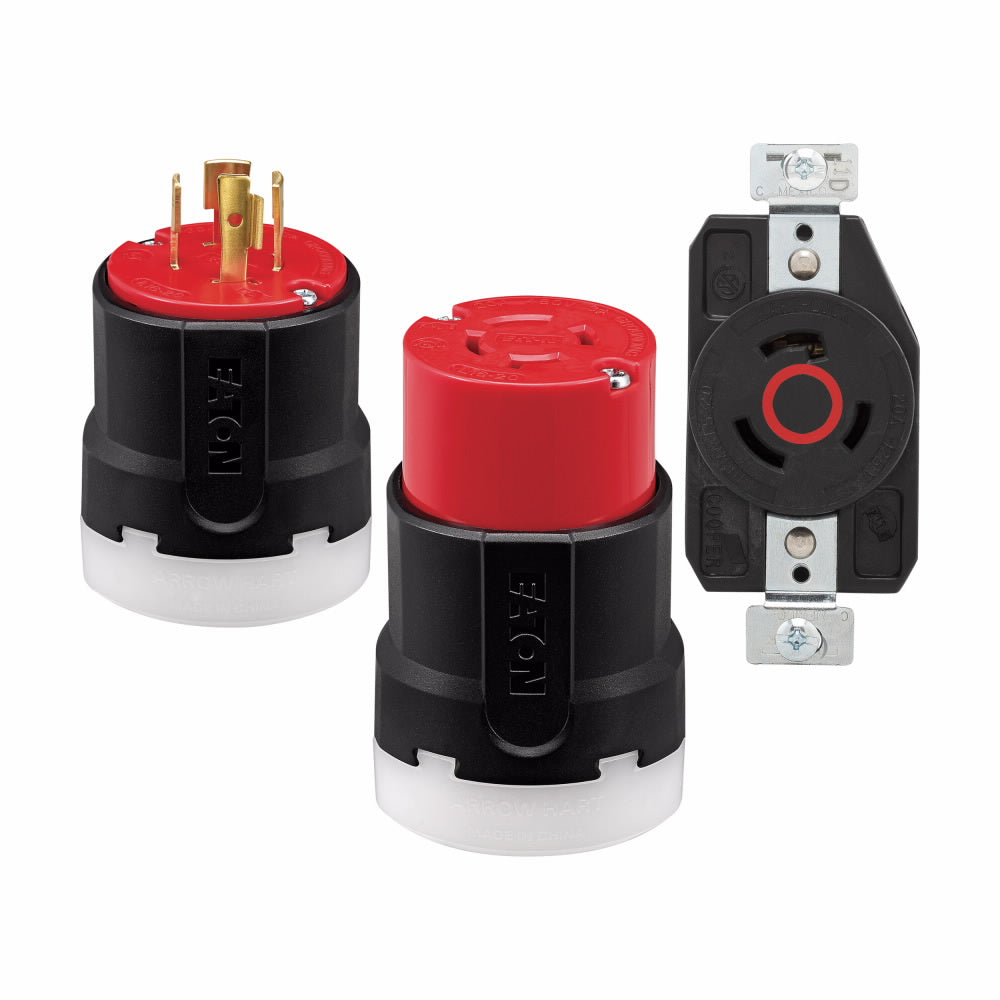

Eaton AHCL1630C is a color-coded locking connector designed for industrial use. This connector supports 30 amps and operates at 480 volts, ensuring reliable connections in demanding environments. It is built to accommodate cord diameters ranging from 0.38 to 1.16 inches. The design features a back wire terminal for easy installation and maintenance.

• Color-coded for easy identification
• Compatible with 14 to 8 AWG conductor sizes
• Temperature rated from -40 to 140 degrees Fahrenheit

Product Highlights

This connector is ideal for applications requiring secure and efficient power distribution.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: AHCL1630C

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 480 VAC
• NEMA Rating: L16-30
• Material: Nylon
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 140 degrees F
• Dimensions: 3.94 in H x 2.3 in W x 2.13 in D
