Eaton AHCL1620R CWD AHCL1620R CCL RECP 20A 480V 3PH 3P4W RD&BK

Product Description

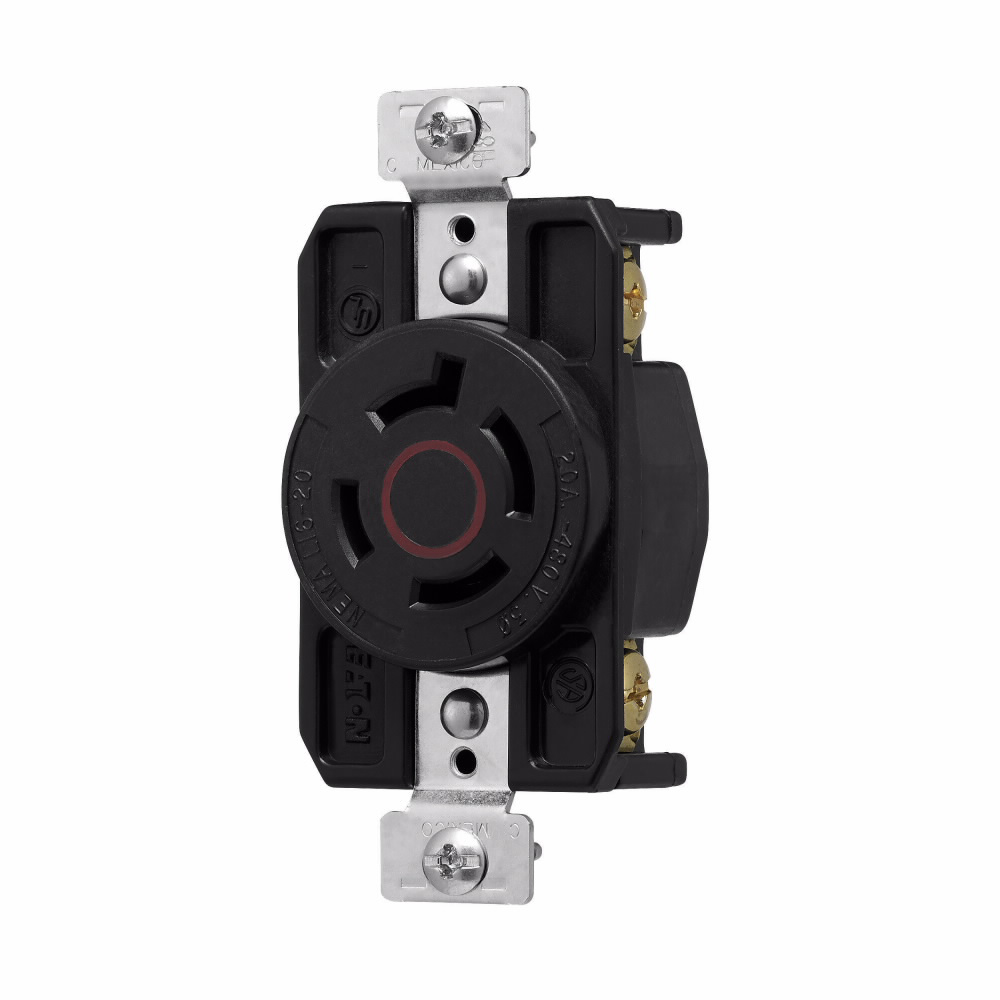

The Eaton AHCL1620R is a color-coded locking receptacle designed for industrial applications. This product operates at 480 VAC and supports a current of 20 A. It features a durable glass-filled nylon construction which ensures longevity and reliability. The receptacle is rated for three poles and four wires, making it suitable for various sophisticated electrical setups.

• Color-coded for easy identification
• Back and side wiring for flexible installation
• Temperature range from -40 to 158 degrees Fahrenheit

Product Highlights

This locking receptacle is ideal for industrial use, ensuring secure connections in demanding environments.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: AHCL1620R

Technical Specifications

• Amperage Rating: 20 A
• Application: Industrial Facilities and Factories
• Color: Black/Red
• Cord Diameter: 0.375 to 1.156 in
• Dimensions: 1.63 in L x 1.06 in W x 3.64 in H
• Grade: Industrial
• Material: Glass Filled Nylon
• NEMA Rating: L16-20
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 158 degrees F
• Terminal Type: Back/Side Wire Clamp
• Voltage Rating: 480 VAC
