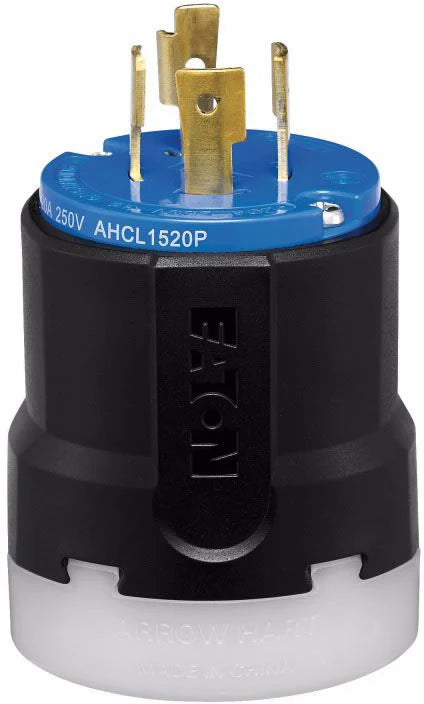

Eaton AHCL1520P EWD AHCL1520P CCL Plug 20A 250V 3PH

Product Description

Eaton AHCL1520P is a three-pole locking plug with a capacity of twenty amps and operates at two hundred fifty volts. This plug is designed for industrial applications and features a color-coded mechanism for easy identification. The plug can accommodate wire sizes from fourteen to eight AWG and is suitable for cord diameters between zero point thirty-eight to one point sixteen inches.

• Constructed from nylon for durability.
• Temperature rating ranges from negative forty degrees Celsius to sixty degrees Celsius.
• Features a back wire terminal for easier installation.

Product Highlights

This locking plug is ideal for use in environments requiring robust and reliable connections, such as manufacturing and industrial settings.

Product Information

Standard Information

• Catalog Number: AHCL1520P
• Brand: Eaton

Technical Specifications

• Type: Industrial Grade, Ultra Grip
• Color: Black/Blue
• Height: 2.92 inches
• Length: 2.13 inches
• Weight: 0.4 lb
• Voltage: 250 Volt
• Amperage: 20 Amp
• Material: Nylon
• Cord Size: 0.38 - 1.16 inches
• NEMA Rating: L15-20
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Contact Material: Tin Plated Bronze
• Operating Temperature: -40 to 140 degrees Fahrenheit
• Standards: UL (Canada and US), NAFTA Approved
• Flammability Rating: V2 per UL94
