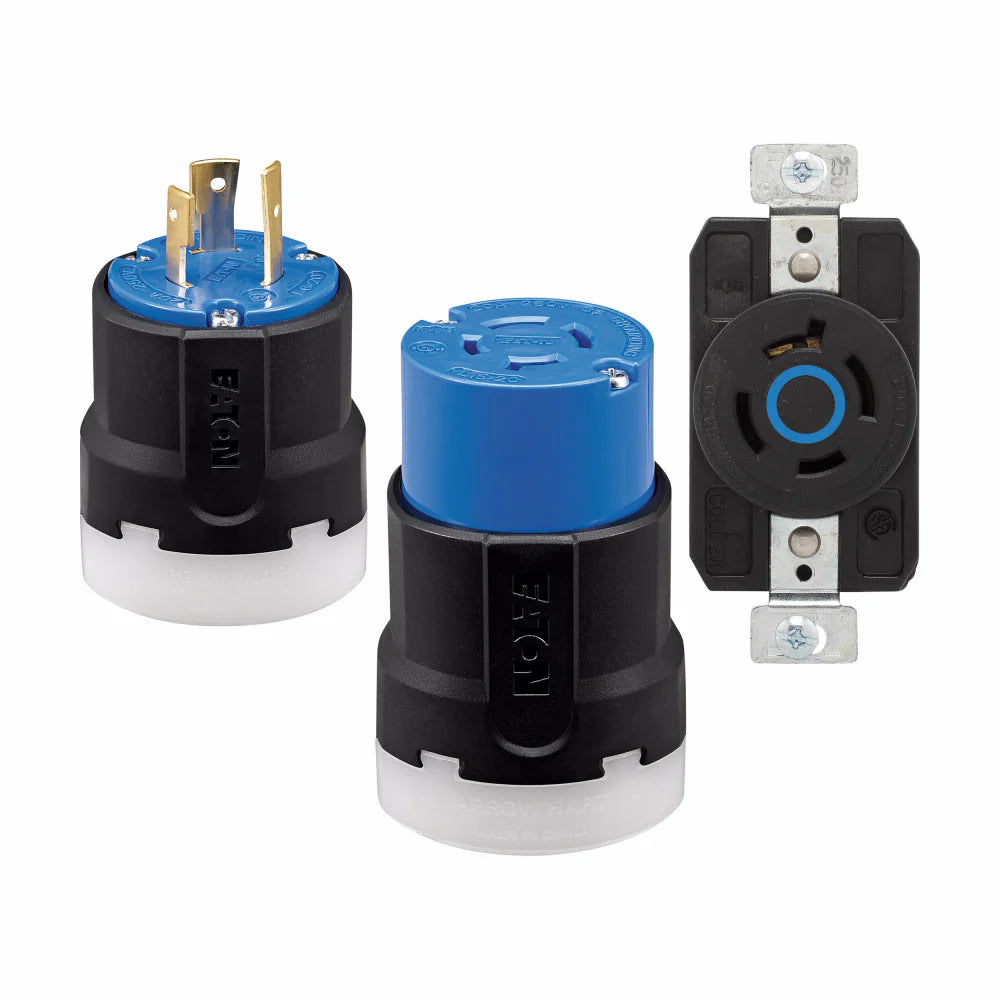

Eaton AHCL1520C EWD AHCL1520C CCL Conn 20A 250V 3PH

Product Description

The Eaton AHCL1520C is a locking device connector designed for three-phase industrial applications. This connector supports a voltage rating of 250 volts and a current rating of 20 amps. Its construction features a robust nylon body and is ideal for use in demanding environments.

• Color-coded locking design for easy identification
• Compatible with 14-8 AWG conductor sizes
• Operates effectively in temperatures from -40 to 140 degrees Fahrenheit

Product Highlights

The Eaton AHCL1520C is built for durability and reliable performance in industrial settings. It has a back wire terminal configuration and a NEMA L15-20 rating, making it suitable for various applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: AHCL1520C

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Material: Nylon
• Color: Blue/Black
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 140 degrees F
• Dimensions: 3.94 in H x 2.3 in W x 2.13 in D
