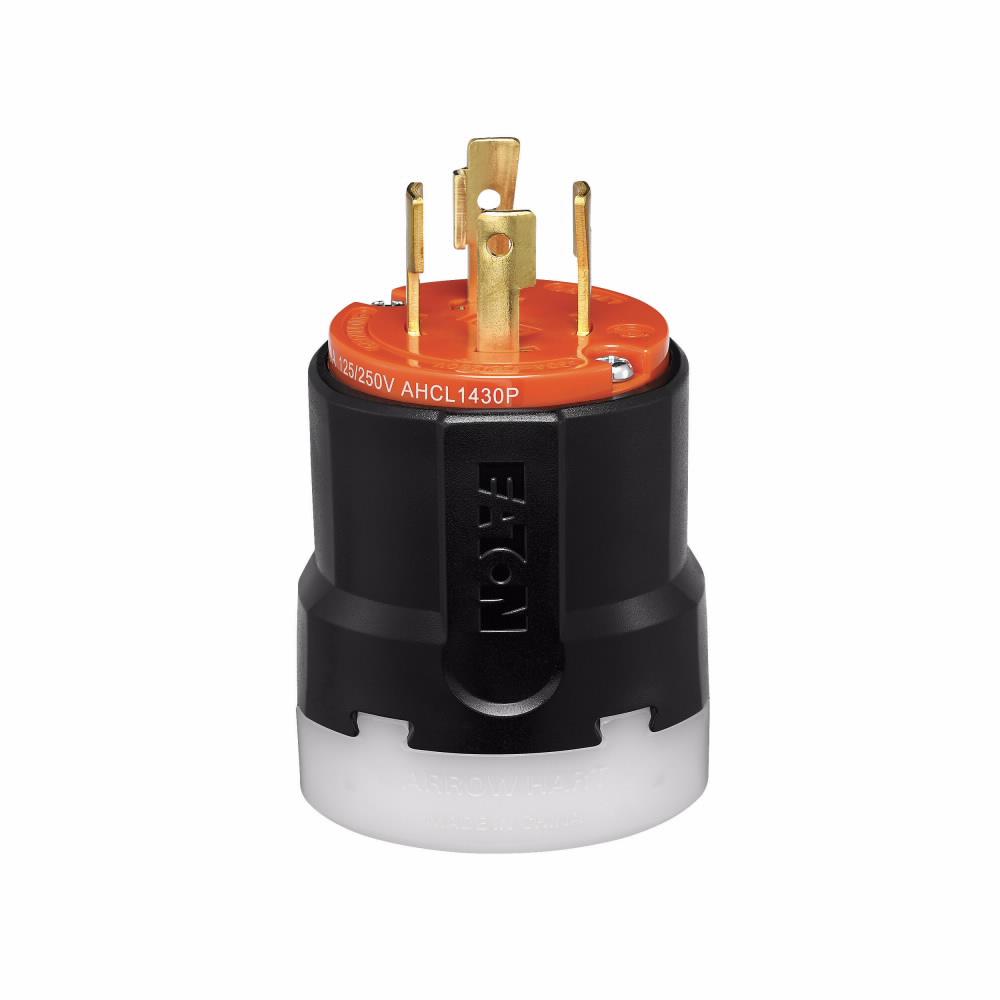

Eaton AHCL1430P CWD AHCL1430P CCL Plug 30A 125/250V 3P4W-OR&BK

Product Description

The Eaton AHCL1430P is a locking plug designed for industrial applications. It operates at thirty amps and supports voltages of one hundred twenty-five to two hundred fifty. The plug features three poles and four wires. The dimensions are two point eight two inches high, two point three inches wide, and two point one three inches deep. This product is made of durable nylon and comes in black and orange colors.

• Rated for 30 amps and 125/250 volts.
• Features back wire terminal clamps for easy secure wiring.
• Individual wiring compartments allow for easy insertion of wires.

Product Highlights

Industrial grade locking plug with a neoprene gasket to seal the cord hole from dust and debris.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: AHCL1430P

Technical Specifications

• Type: Color Coded Ultra Grip
• NEMA Rating: L14-30
• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 140 °F
• Material: Nylon
• Cord Diameter: 0.38 to 1.16 in
