Eaton AH8300W duplex receptacle 20A 125V

Product Description

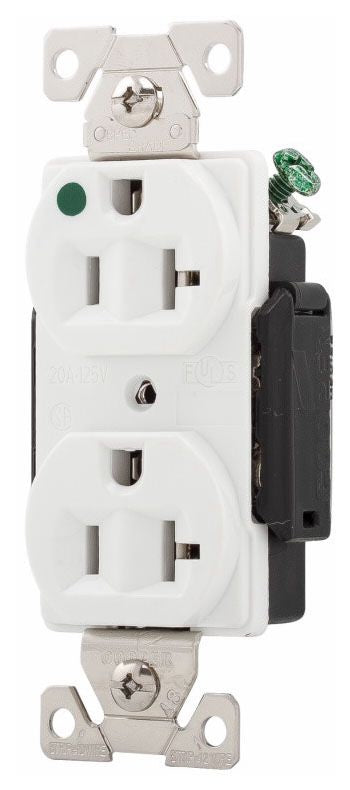

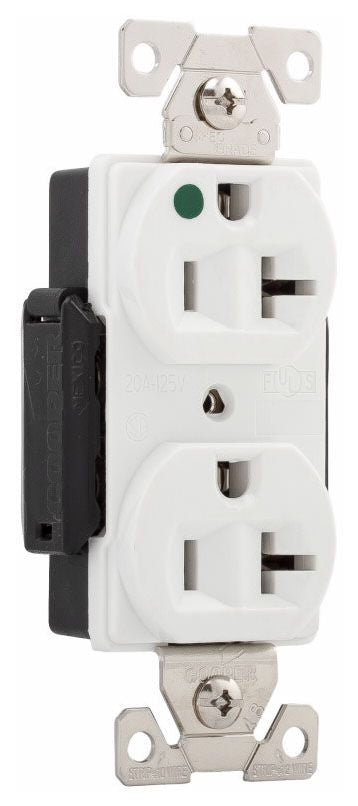

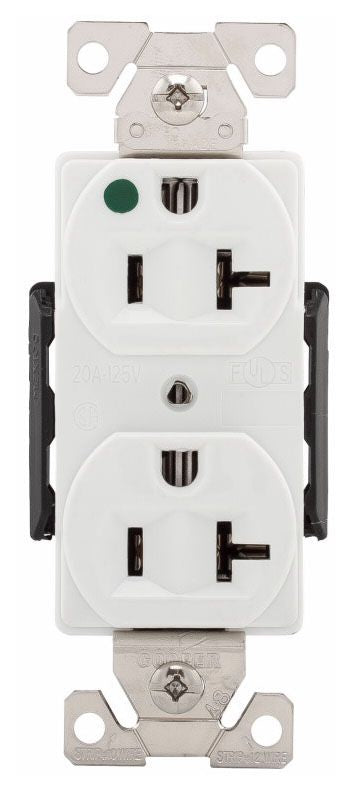

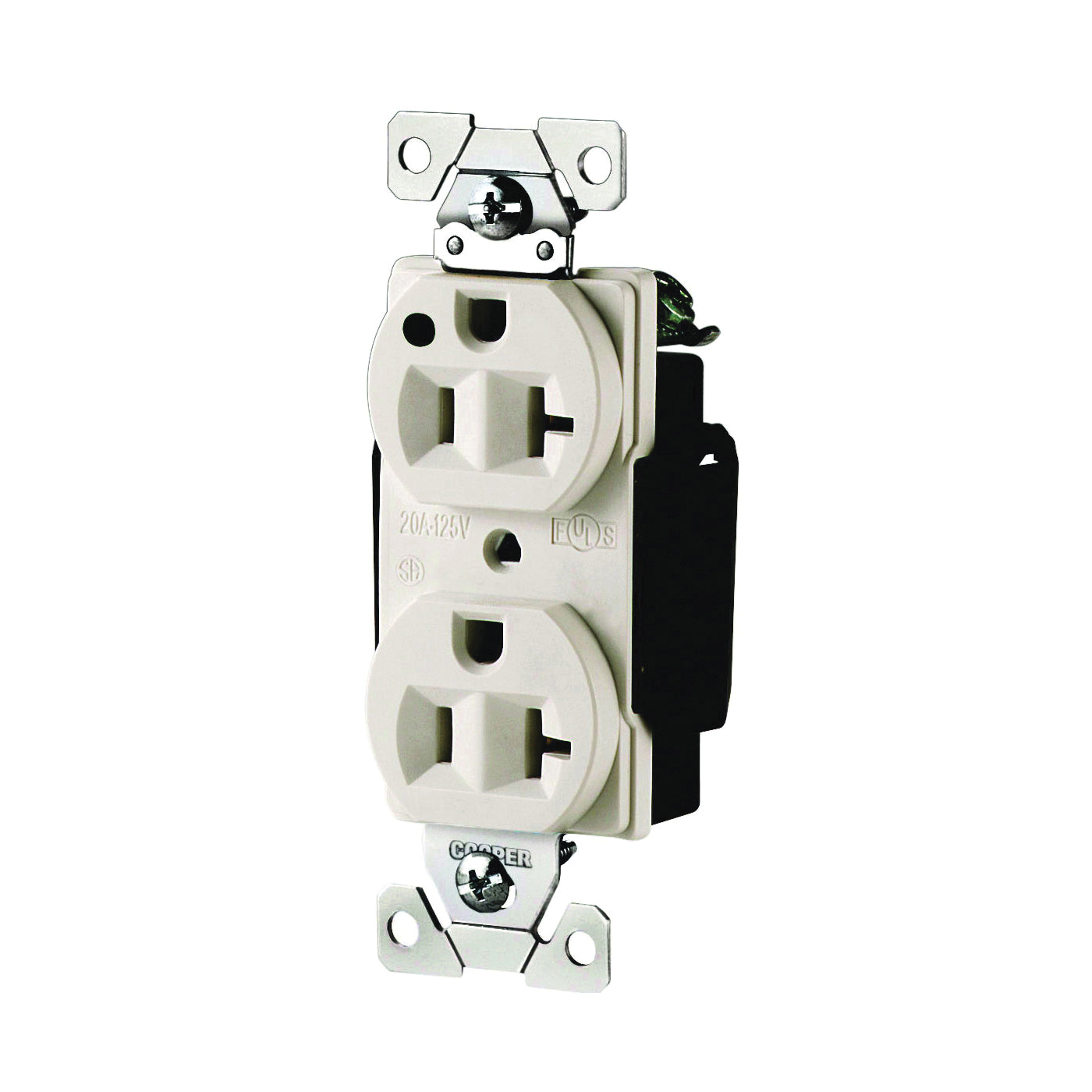

The EATON AH8300W is a straight blade, duplex receptacle. Rated at 20A and 125V AC, this premium hospital-grade receptacle features a chemical and heat-resistant construction. It is designed for flush mounting with back and side wiring options and accepts wire sizes from 14 to 10 AWG. The receptacle is UL 498, CSA C22.2, and NOM 426 approved.

• Straight Blade Receptacle
• Chemical/Heat Resistant
• Premium Hospital Grade

Product Highlights

Premium hospital grade receptacle with chemical and heat resistant construction, suitable for various industrial and healthcare applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH8300W
• Country of Origin: MEX

Technical Specifications

• Type: Duplex
• Constructional Feature: Chemical/Heat Resistant
• Configuration: NEMA 5-20R
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Glass-filled nylon
• Wiring: Back, Side
• Grade: Premium Hospital
• Approval: UL 498, CSA C22.2, NOM 426
• RoHS Compliant: True
• Wire Size: 14 to 10 AWG
• Mounting Type: Wall
• Temperature Rating: -20 to 70 Deg C
• Flammability Rating: UL 94-V2
• Series: AH8300
• Standards/Approvals: UL Listed|cULus 498|cULus File No. E15058|Federal Specification W-C-596G|CSA C22.2 File No. 42|NOM Certified|UL 94 V-2 Flammability Rated
• Operating Temperature: -20 to 70
• NEMA Configuration: 5-20R
• Product Type: Extra heavy-duty hospital grade
• Device type: Receptacle
• Amperage Rating: 20A
• Voltage rating: 125V
• Contact material: Brass
• Features: Terminal guards Auto-grounding
• Application: Healthcare
• Device grade: Extra heavy-duty hospital grade
• Wiring method: Back and side
• Style type: Standard
• Connection type: Screw
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Glass-filled nylon base High-impact nylon face
• Receptacle type: Two-pole, three-wire, grounding
• Frequency Rating: 60 Hz
