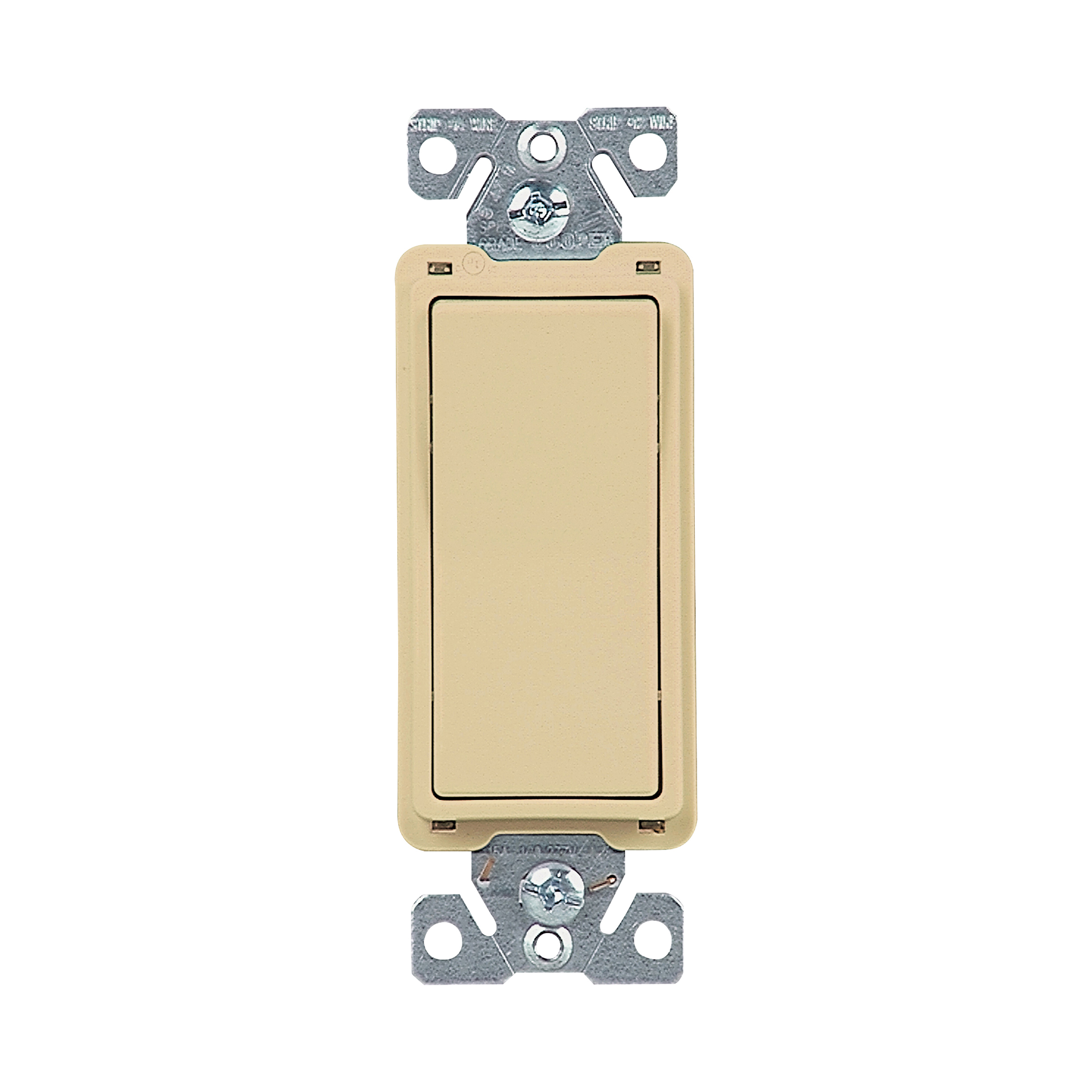

Eaton AH7504V-BOX Decorator 4-way Switch 15A 120/277V

Product Description

The EATON AH7504V-BOX is a standard-grade decorator-style 4-way switch rated for 15 amps at 120/277 volts. Designed for use in multi-location switching applications, it allows control of a lighting circuit from three or more points when wired in combination with a pair of 3-way switches. The ivory finish and decorator paddle profile fit standard decorator wallplates. Licensed electricians install this switch in residential and light commercial wiring projects where code-compliant multi-point switching is required.

This switch is suited for residential and light commercial electrical installations where lighting circuits require control from multiple locations, such as stairwells, hallways, large rooms with multiple entry points, and open-plan spaces. The 120/277-volt rating makes it compatible with both standard residential 120-volt branch circuits and commercial 277-volt lighting circuits commonly found in office and retail environments.

Key Features

• 4-way switching function enables multi-location lighting control from three or more switch points
• Rated 15 amps at 120/277 volts for residential and commercial circuit compatibility
• Decorator paddle-style design fits standard decorator wallplates
• Ivory finish for common neutral-tone wallplate matching
• Standard-grade construction suitable for general-purpose branch circuit installations

Compatibility

Designed as an OEM-style replacement or new-installation 4-way decorator switch for use in standard single-gang decorator wallplate assemblies on 15-amp, 120/277-volt branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before handling any wiring. A 4-way switch must be wired between two 3-way switches in a multi-location circuit and will not function correctly if substituted for a 3-way or single-pole device. Secure the switch in a listed electrical box rated for the application.

Technical Specifications

• Switch Type: 4-Way Decorator
• Amperage Rating: 15 amps
• Voltage Rating: 120/277 volts
• Color/Finish: Ivory
• UPC: 032664643828

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH7504V-BOX
