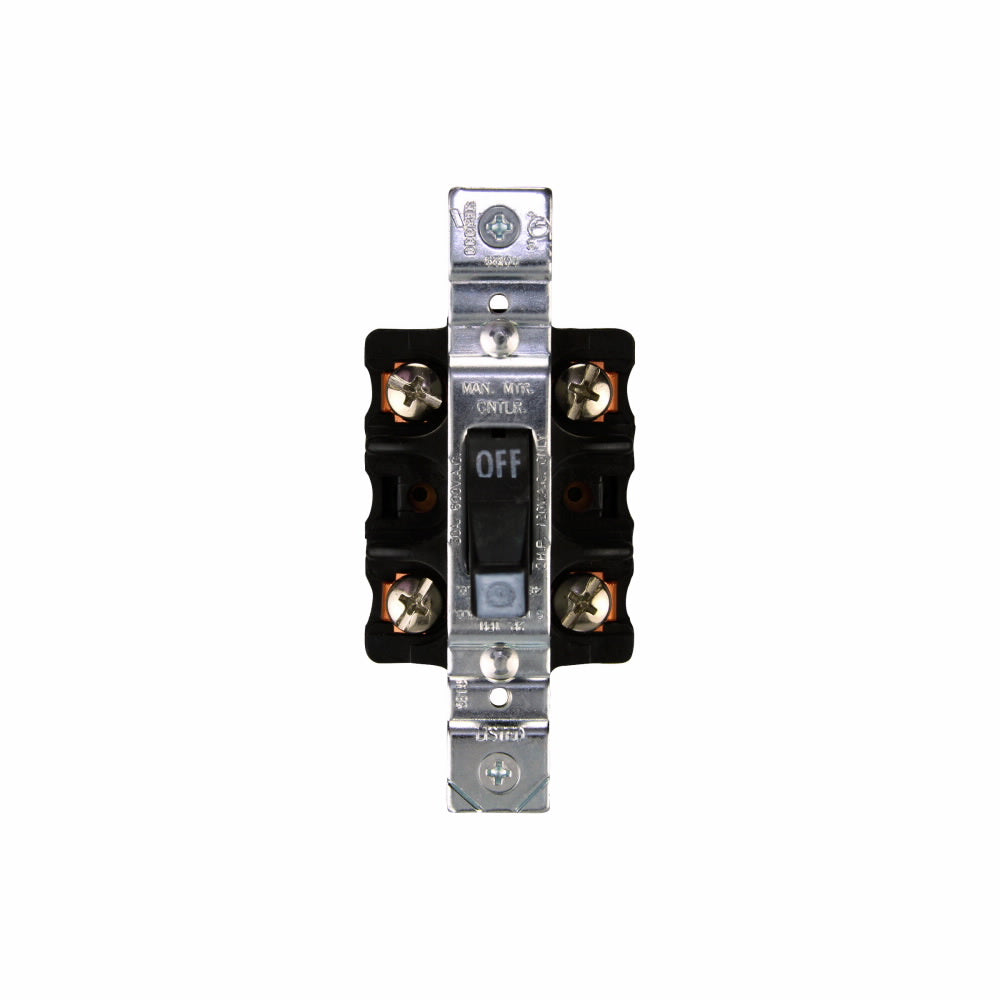

Eaton AH6810U Manual Motor Control Switch 600 VAC 30 A 2-Position

Product Description

The Eaton AH6810U is a manual motor control switch designed for reliable industrial applications. This switch operates at six hundred volts alternating current and has a current rating of thirty amps. It features a double-pole single-throw contact configuration suitable for motor control. The unit supports power ratings of two horsepower and five horsepower. The switch is constructed with a glass-filled nylon for durability and is encased in a NEMA rated enclosure for safety in various environments.

• Two-position switch with maintained action
• Front wired with screw connections
• Compact dimensions for easy installation

Product Highlights

This manual motor control switch is suitable for controlling motors in industrial settings. It is designed for easy installation with front terminals that simplify wiring. The presence of distinct wire pockets helps prevent wiring mistakes.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: AH6810U

Technical Specifications

• Actuator: Maintained
• Amperage Rating: 30 A
• Application: Industrial Applications
• Color: Black
• Connection: Front Wired/Screw
• Contact Configuration: DPST
• Contact Rating: 30 A at 600 VAC
• Dimensions: 3.81 in H x 1.69 in W x 1.75 in D
• Enclosure: NEMA 3/7/9
• Material: Glass Filled Nylon
• Mounting: Panel
• Number of Poles: 2
• Power Rating: 2 hp, 5 hp
• Standards/Approvals: CSA C22.2 No. 14|UL 508
• Type: 2-Position
• Voltage Rating: 600 VAC
