Product Description

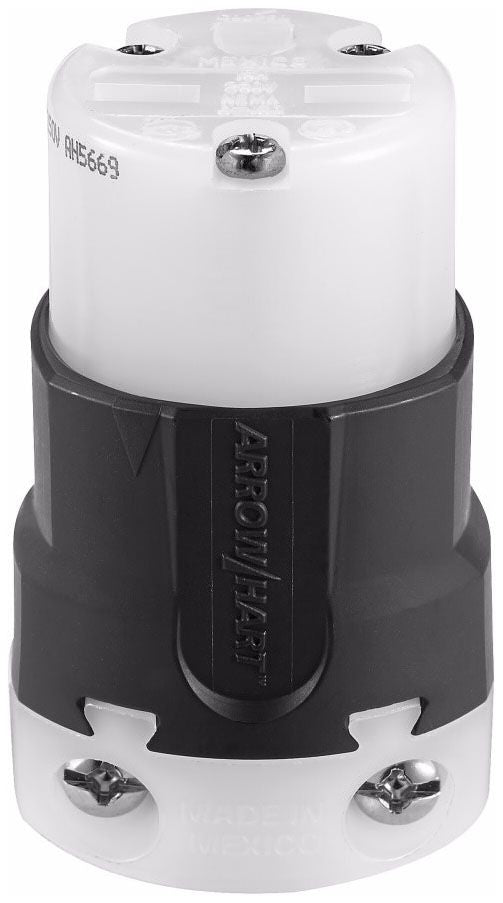

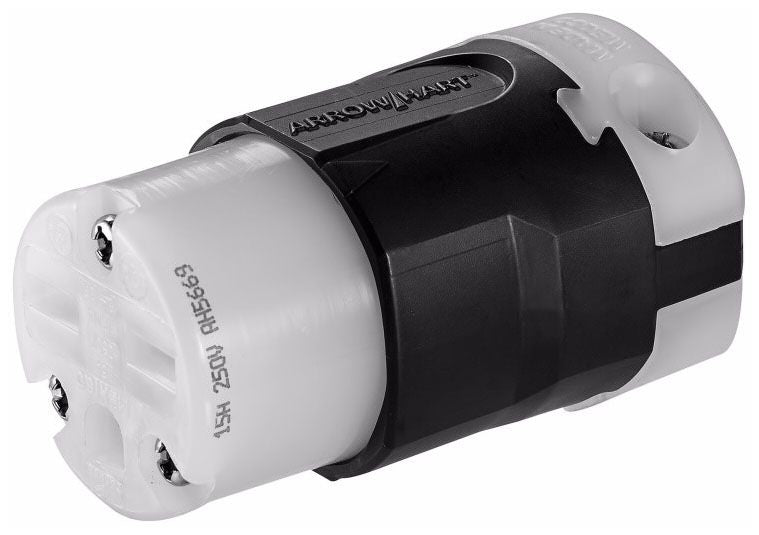

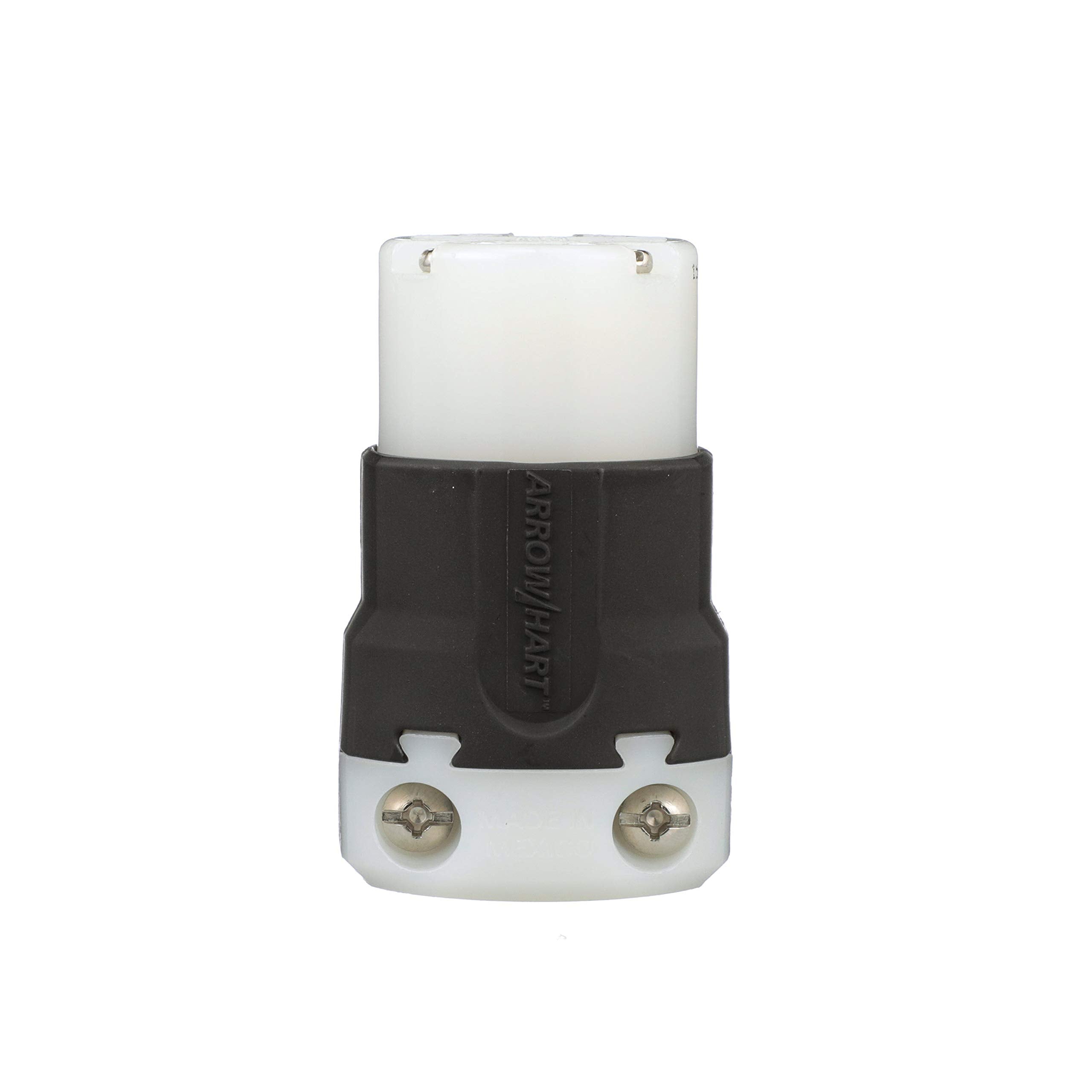

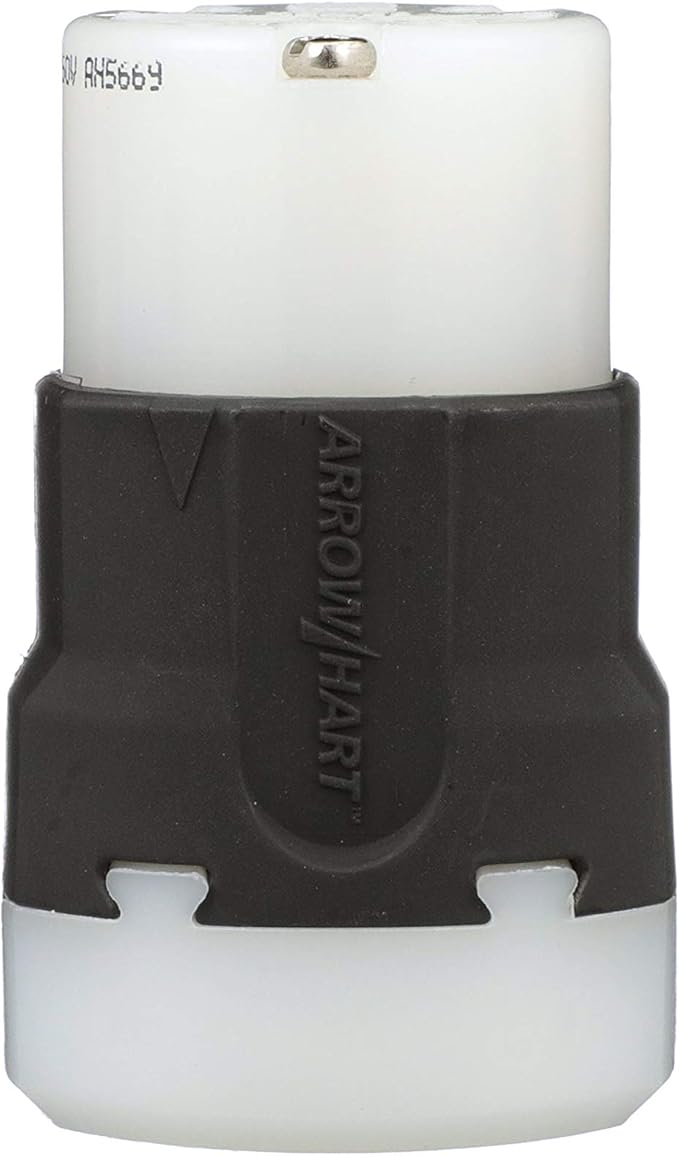

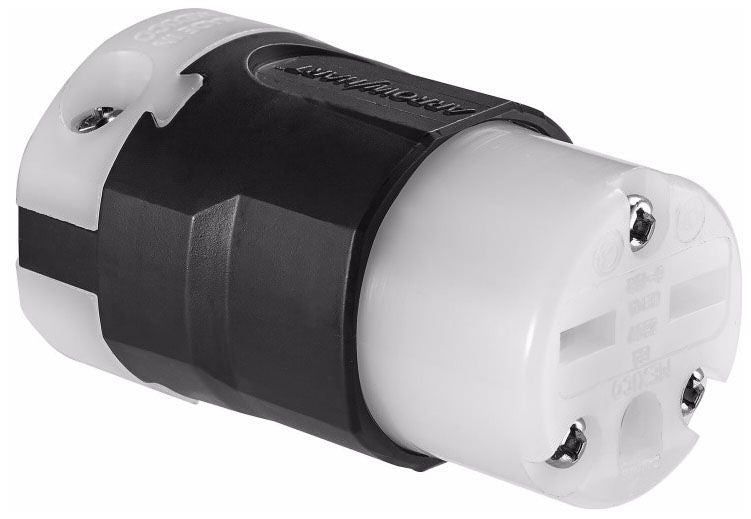

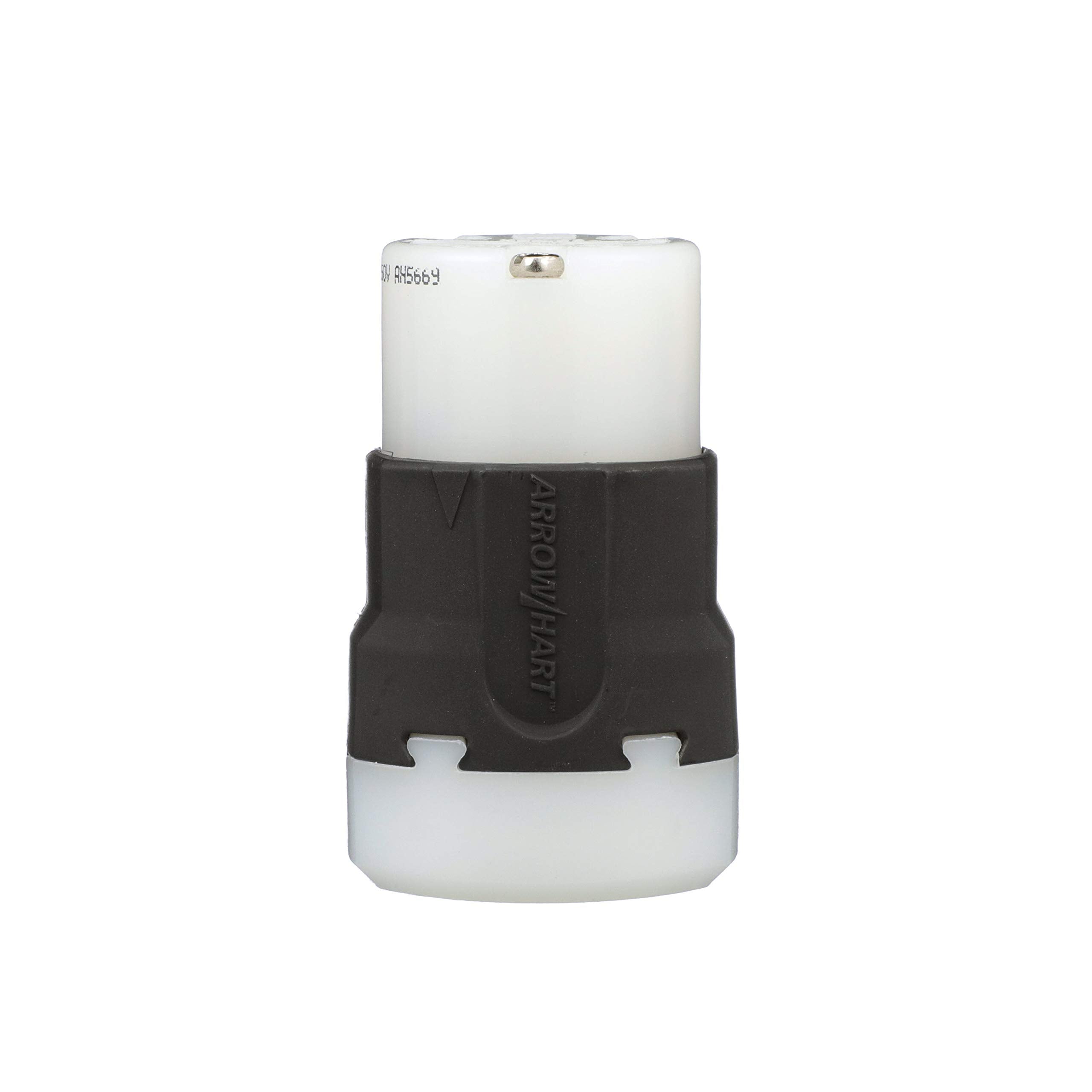

The Eaton AH5669 15-Amp 250-volt 6-15 Ultra grip plug is designed for quick and easy installation, providing reliable performance in tough industrial environments. This straight blade connector features a rugged nylon body that resists impact and chemical exposure. Ideal for industrial applications requiring a durable and secure power connection.
- Rugged nylon body resists impact and exposure to chemicals
- Neoprene gasket seals around cord for added terminal protection from external elements
- Dual range cord grip provides positive cord gripping while limiting strain on conductors
Product Highlights
The Eaton AH5669 Ultra Grip plug ensures a secure and reliable connection for industrial applications, featuring a durable nylon body and enhanced cord grip.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: AH5669
-
Country of Origin: MEX
Technical Specifications
-
Manufacturer: EATON
-
Brand: Eaton
-
Model / MPN: AH5669
-
Product Type: ELECTRICAL_PLUG
-
Product Group: Home Improvement
-
Number of Items: 1.0
-
Amperage Rating: 15 A
-
Application: Industrial
-
Cord Diameter: 0.33 to 0.66 in
-
Grade: Industrial/Specification;Heavy Duty/Industrial
-
Material: Nylon
-
NEMA Rating: NEMA 6-15R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: cULus Listed|RoHS Compliant;Federal Specification 6221 02|NOM Certified|UL Listed
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Threaded;Screw
-
Type: Ultra Grip;Connector
-
Voltage Rating: 250 VAC;250 V
-
Torque rating: 12-14 lbf-inch
-
Wiring method: Back wire
-
Allowable wire size: #16-12 AWG
-
Connection type: Screw
-
Design type: Straight blade
-
Device grade: Extra heavy-duty industrial specification grade
-
Device type: Connector
-
Receptacle type: Two-pole, three-wire, grounding
-
Style type: Straight body
-
Voltage: 250 Volts
-
Amperage: 15 Amps
-
Connector Style: NEMA 6-15C
-
Connector Type: Receptacle, Female Sockets
-
Current Rating (Amps): 15A
-
Number of Positions: 3
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Screw
-
Material Flammability Rating: UL94 V-2
-
Approval Agency: NOM, UL
