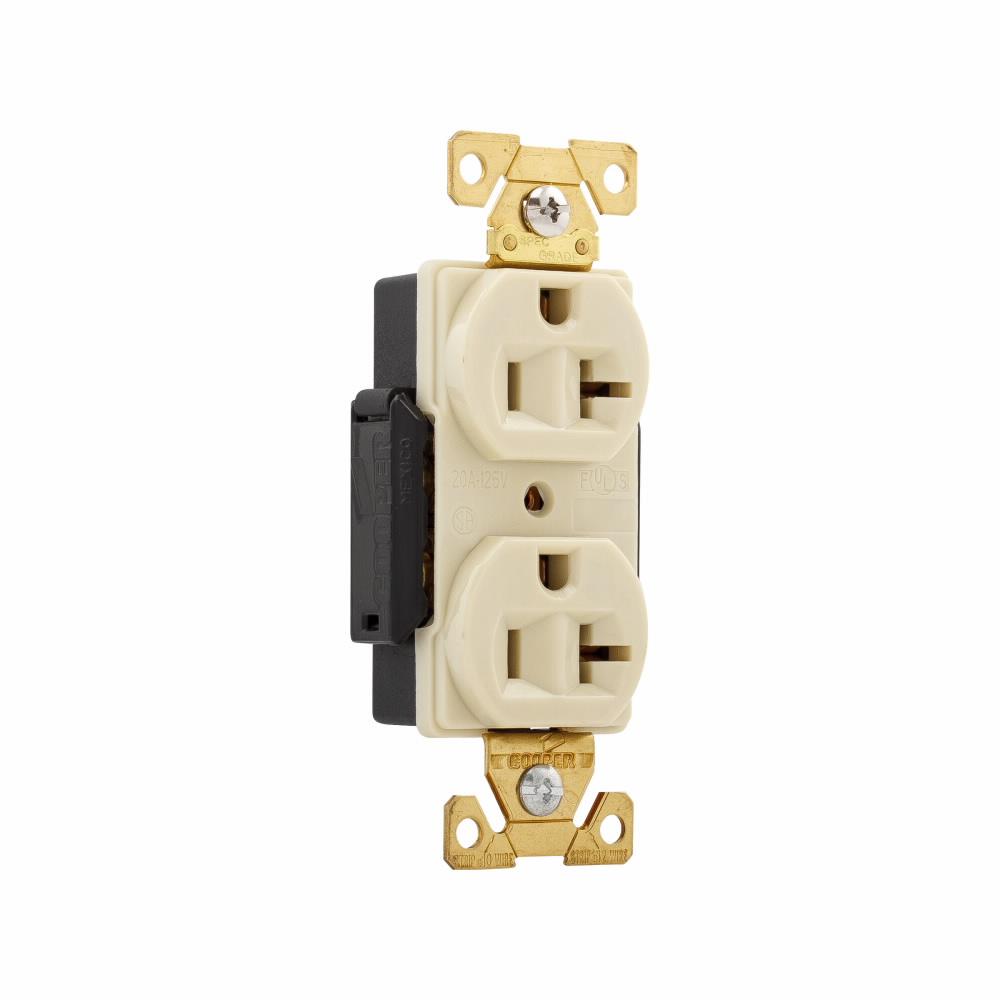

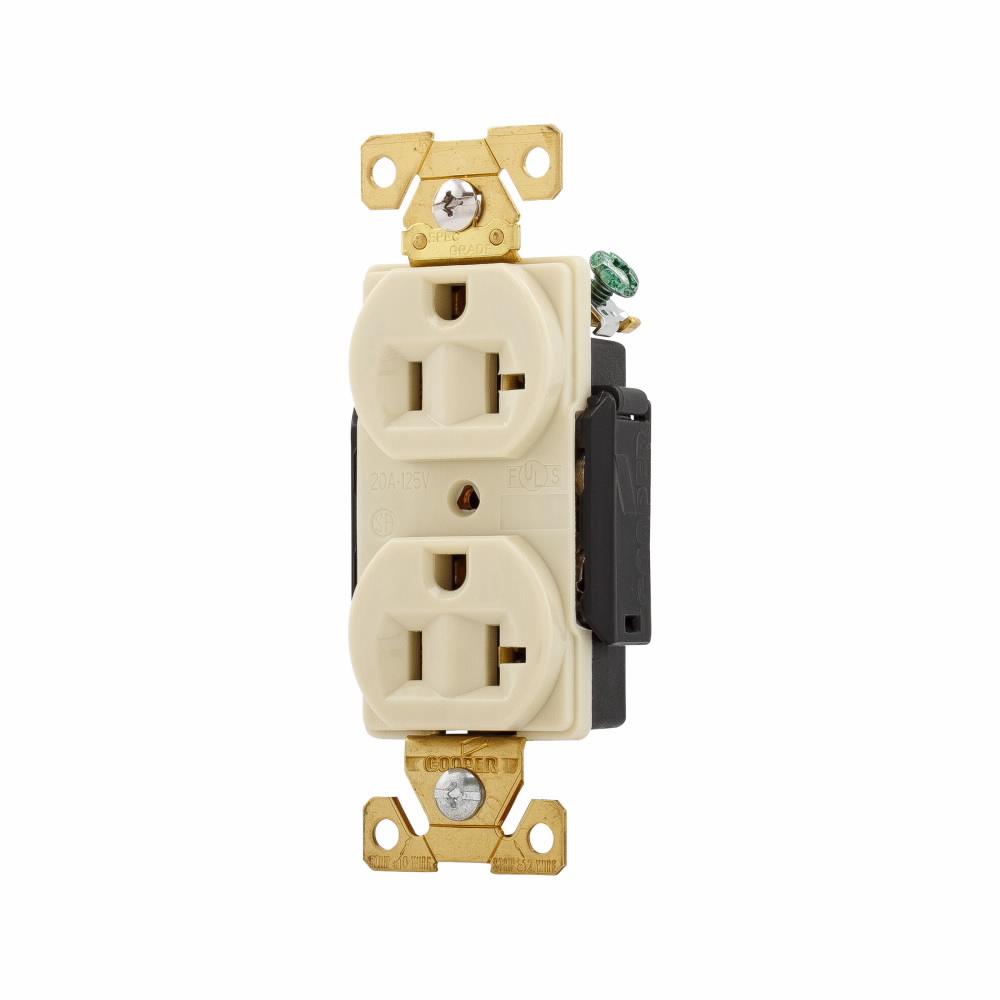

Eaton AH5362V Straight Blade Receptacle 20 A

Product Description

The Eaton AH5362V is an industrial specification grade straight blade receptacle. Rated for 20 A and 125 VAC with a NEMA 5-20R rating, this duplex premium receptacle is designed to meet UL 498 and Federal Specification W-C-596 standards. It is constructed with a glass-filled nylon material and features screw terminals.

• Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
• All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
• Long, broad mounting strap helps reach large panel cut-outs for code compliance

Product Highlights

This receptacle provides consistent performance and superior plug retention for demanding industrial applications. It features a rigid, glass reinforced nylon base for high heat resistance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH5362V

Technical Specifications

• Grade: Industrial/Specification
• Material: Glass Filled Nylon
• NEMA Rating: NEMA 5-20R
• Series: AH5362
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Screw
• Type: Duplex Premium
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Application: Industrial Receptacle Applications
• Manufacturer Part Number: AH5362V
• Standards/Approvals: UL 498|UL File No. E15058|cULus Listed|Federal Specification W-C-596G|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|NOM 426 Certified|UL 94 V-2 Flammability Rated
• Compliances: RoHS Compliant
• Product Type: Extra heavy-duty industrial specification grade
• Device type: Receptacle
• Wiring method: Back and side
• Mounting method: Flush
• Number of poles: Two-pole
• Style type: Standard
• Connection type: Screw
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Nylon face Glass-filled nylon base
• Receptacle type: Duplex
