Product Description

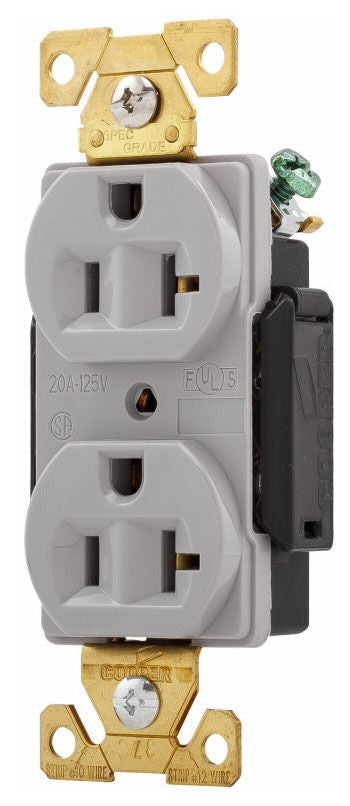

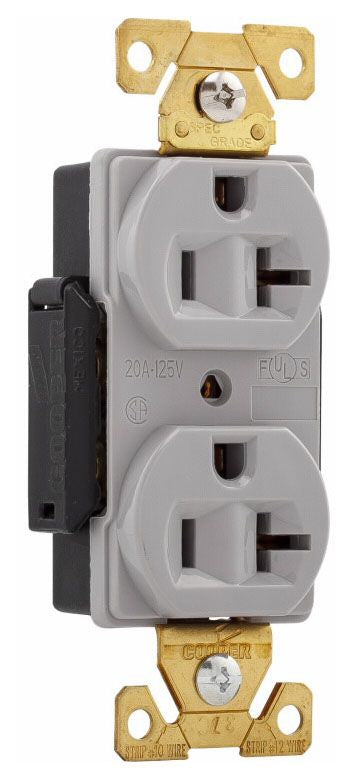

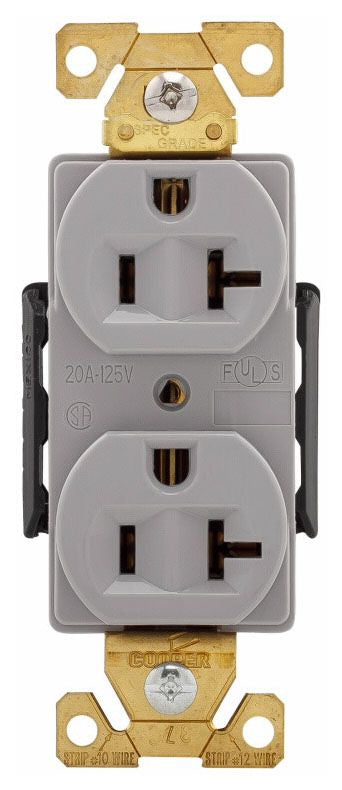

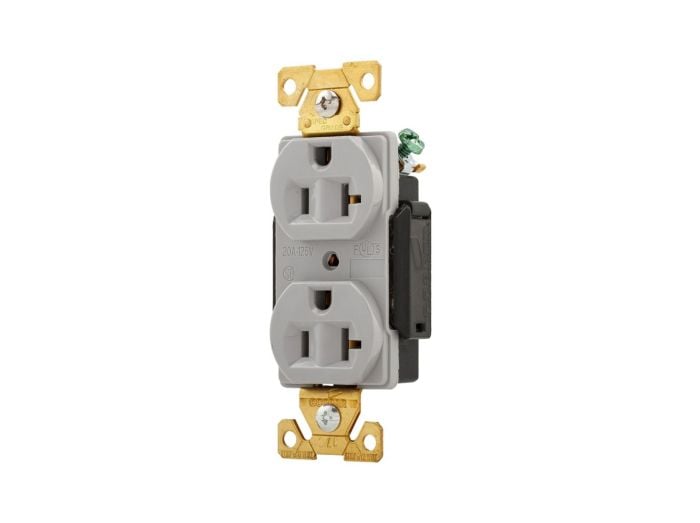

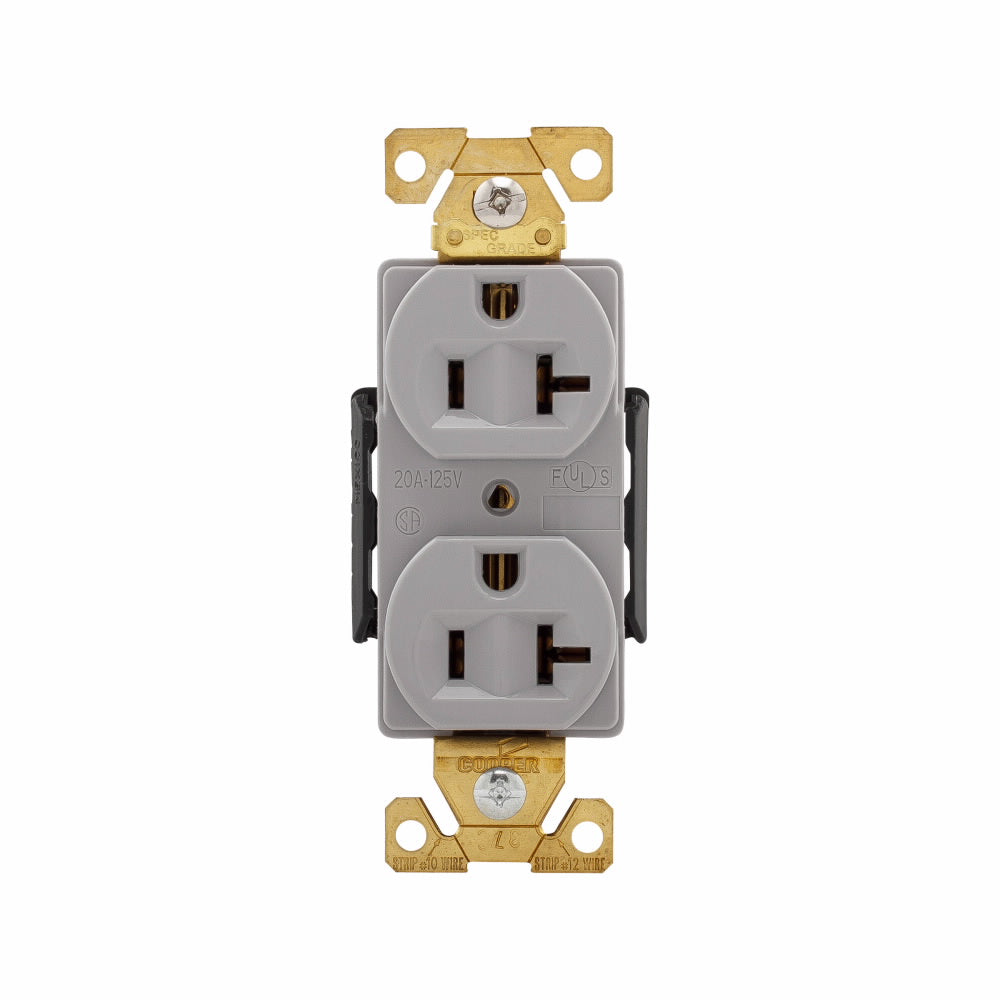

The EATON AH5362GY is a premium duplex straight blade receptacle designed for industrial applications. Rated at 20A and 125 VAC, this 2-pole, 3-wire receptacle features a glass-filled nylon base and a durable nylon face. It is suitable for industrial receptacle applications and offers a screw terminal type for secure connections.
- Constructed with a nylon face and glass-filled nylon base for durability.
- Features a robust mounting strap to accommodate large panel cut-outs.
- Equipped with an automatic grounding system, eliminating the need for a bonding jumper in grounded metal enclosures.
Product Highlights
This heavy-duty industrial specification grade receptacle is ideal for demanding environments, offering reliable performance and superior plug retention.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: AH5362GY
-
Country of Origin: MEX
Technical Specifications
-
Amperage Rating: 20 A
-
Application: Industrial Receptacle Applications
-
Color: Gray
-
Grade: Industrial/Specification
-
Manufacturer Part Number: AH5362GY
-
Material: Glass Filled Nylon
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Series: AH5362
-
Standards/Approvals: UL 498|UL File No. E15058|cULus Listed|Federal Specification W-C-596G|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|NOM 426 Certified|UL 94 V-2 Flammability Rated
-
Temperature Rating: -4 to 158 deg F
-
Terminal Type: Screw
-
Type: Duplex Premium
-
Voltage Rating: 125 VAC
-
Wiring: Back, Side
-
Flammability Rating: UL 94 V-2
-
Wire Size: 14 to 10 AWG
-
ROHS Compliant: True
-
NAFTA Compliant: True
-
Mount: Flush
-
Voltage: 125v
-
Amperage: 20
-
Product Type: Duplex Receptacle
-
Connection Type: Duplex Receptacle
-
NEMA Configuration: 5-20R
-
Contact material: Brass
-
Features: Terminal guards, Auto-grounding
-
Device grade: Extra heavy-duty industrial specification grade
-
Wiring method: Back and side
-
Mounting method: Flush
-
Style type: Standard
-
Face/body material: Glass-filled nylon base, Nylon face
-
Receptacle type: Duplex
-
Compliances: RoHS Compliant
-
Certifications: UL, NOM, Federal Specification Classification W-C-596F
-
Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
-
Torque rating: 14 lbf-inch
