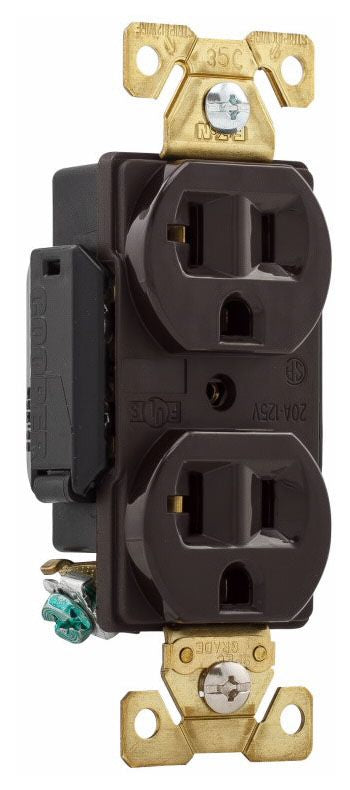

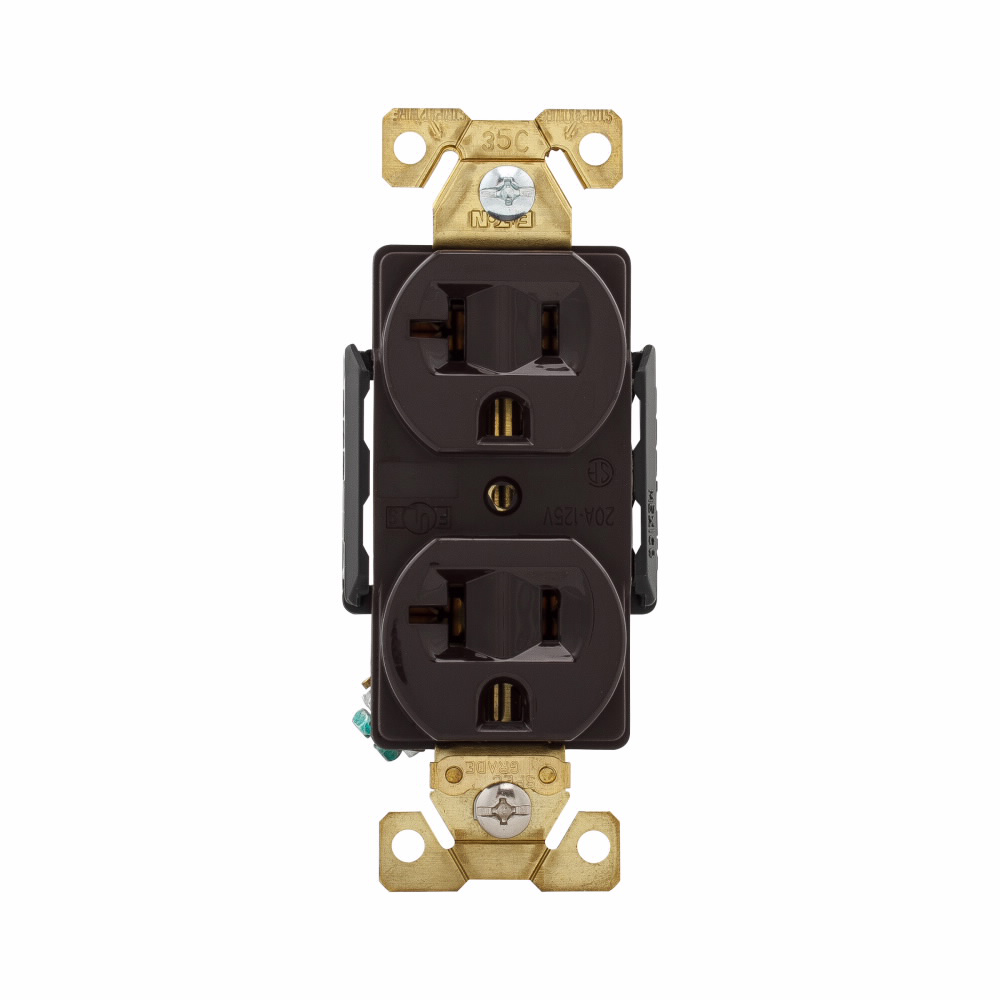

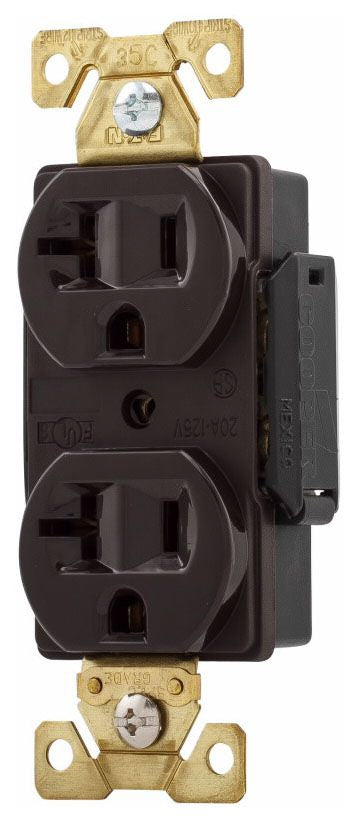

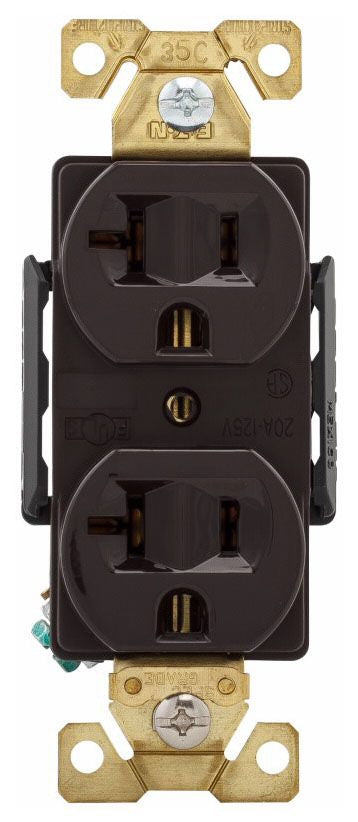

Eaton AH5362B Arrow Hart Wiring 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Straight Blade Duplex Receptacle

Product Description

The Eaton AH5362B Arrow Hart extra heavy-duty industrial specification grade duplex receptacle is designed for industrial applications. Rated for 20A and 125V, it features back and side wiring and accepts #14-10 AWG wire. The receptacle has a nylon face and a glass-filled nylon base, ensuring durability and heat resistance. It is a NEMA 5-20R configured, 2-pole, 3-wire straight blade duplex receptacle.

• Extra heavy-duty industrial specification grade
• #14-10 AWG wire size
• Back and Side Wiring

Product Highlights

This Eaton Arrow Hart duplex receptacle is ideal for industrial settings requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH5362B
• Country of Origin: MEX

Technical Specifications

• NEMA Rating: 5-20R
• Type: Industrial
• Brand: EATON
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Material: Nylon
• Sub Brand: Eaton Wiring Devices
• Wire Size: 14-10 AWG
• Applications: INDUSTRIAL RECEPTACLES
• Base Material: Glass-Filled Nylon
• Face Material: Nylon
• Mounting Type: Flush
• Conductor Size: 14-10 AWG
• Connection Type: Duplex Receptacle
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -4 to 158 deg F
• Series: AH5362
• Terminal Type: Screw
• Grade: Premium Industrial
• Configuration: 5-20R
• Current Rating: 20 Ampere
• Ground Type: Grounding
• Wiring: Back, Side
• Flammability Rating: UL 94 V-2
• ROHS Compliant: True
• NAFTA Compliant: True
• Product Type: Extra heavy-duty industrial specification grade
• Device type: Receptacle
• Receptacle type: Duplex
• Contact material: Brass
• Features: Terminal guards Auto-grounding
• Application: Industrial
• Device grade: Extra heavy-duty industrial specification grade
• Wiring method: Back and side
• Mounting method: Flush
• Style type: Standard
• Packaging type: Core pack
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Glass-filled nylon base Nylon face
• Manufacturer: Eaton
• Product Series: Premium Industrial Grade
• Family Series: Eaton Plugs & Receptacles, Premium Industrial Grade Series
• Watertight: No
• Isolated Ground: No
• Illuminated: No
