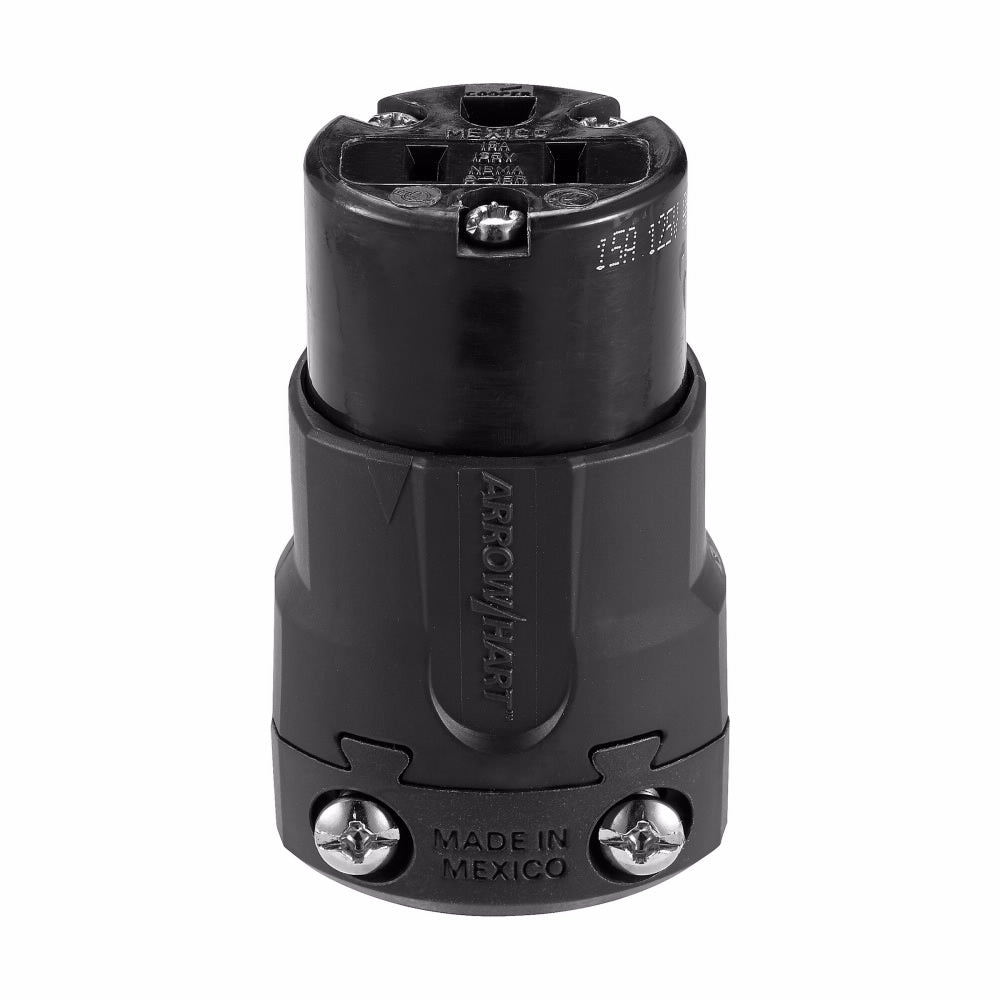

Eaton AH5269-BK CWD CONN 15A 125V 2P3W STR

Product Description

The Eaton AH5269-BK is a straight blade connector designed for industrial applications. It operates on 125 volts and handles a current of 15 amps. This connector has two poles and three wires, featuring a nylon body and a dual dovetail design that provides superior grip retention.

• Includes a polycarbonate terminal retainer for added reliability.
• Compatible with cords ranging from 0.22 to 0.66 inches in diameter.
• Temperature rated from -40 to 75 degrees Celsius.

Product Highlights

This connector is ideal for environments requiring durability and performance. It includes features such as screw terminals for secure connection and is NEMA 5-15R rated.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Connector

Technical Specifications

• MPN: AH5269-BK
• Voltage Rating: 125 V
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon
• NEMA Rating: NEMA 5-15R
• Dimensions: 1.46 in W x 1.46 H x 2.59 in L
• Temperature Rating: -40 to 75 degrees Celsius
• Standards/Approvals: Federal Specification W-C-596F, NOM Certified, cULus Listed
