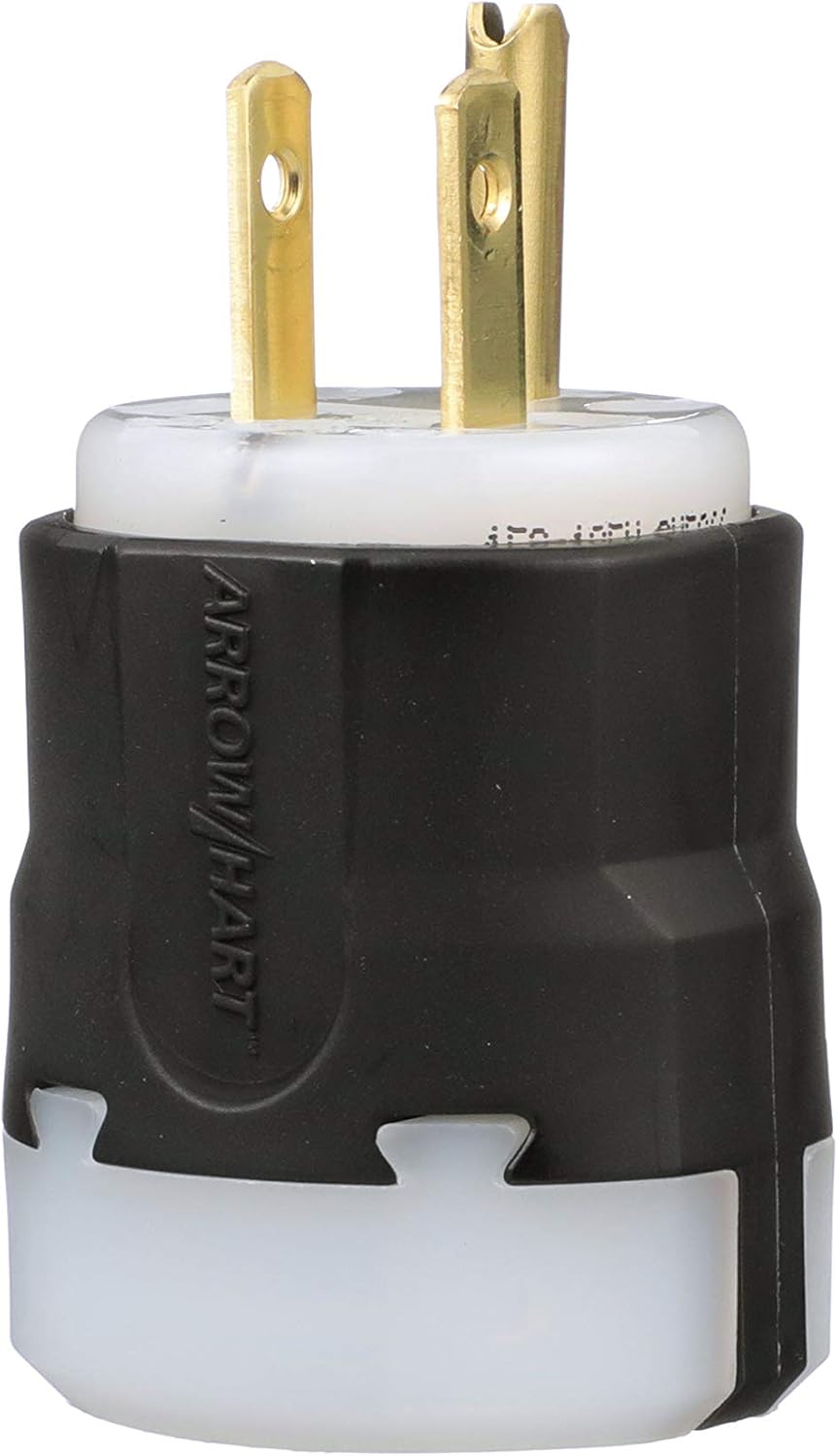

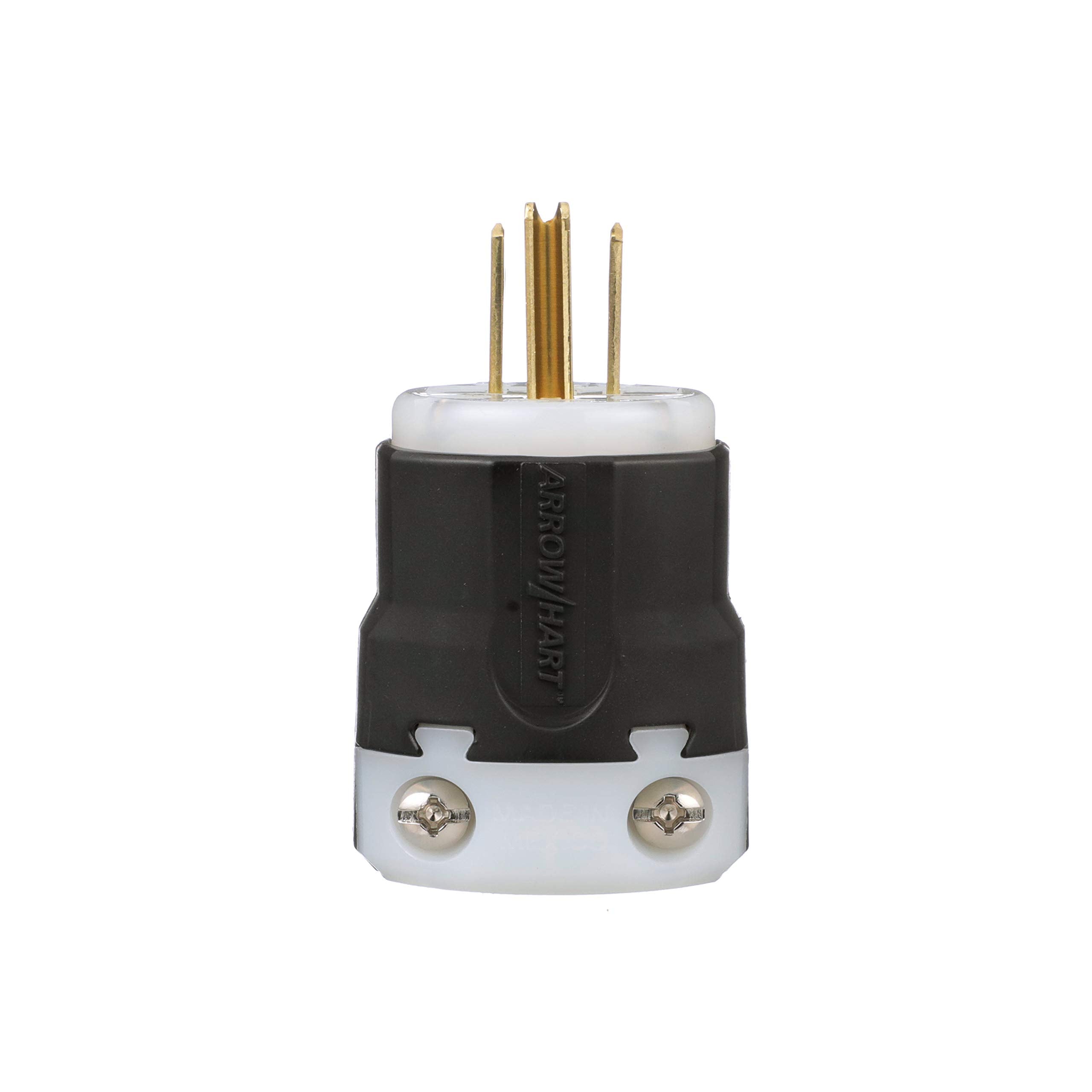

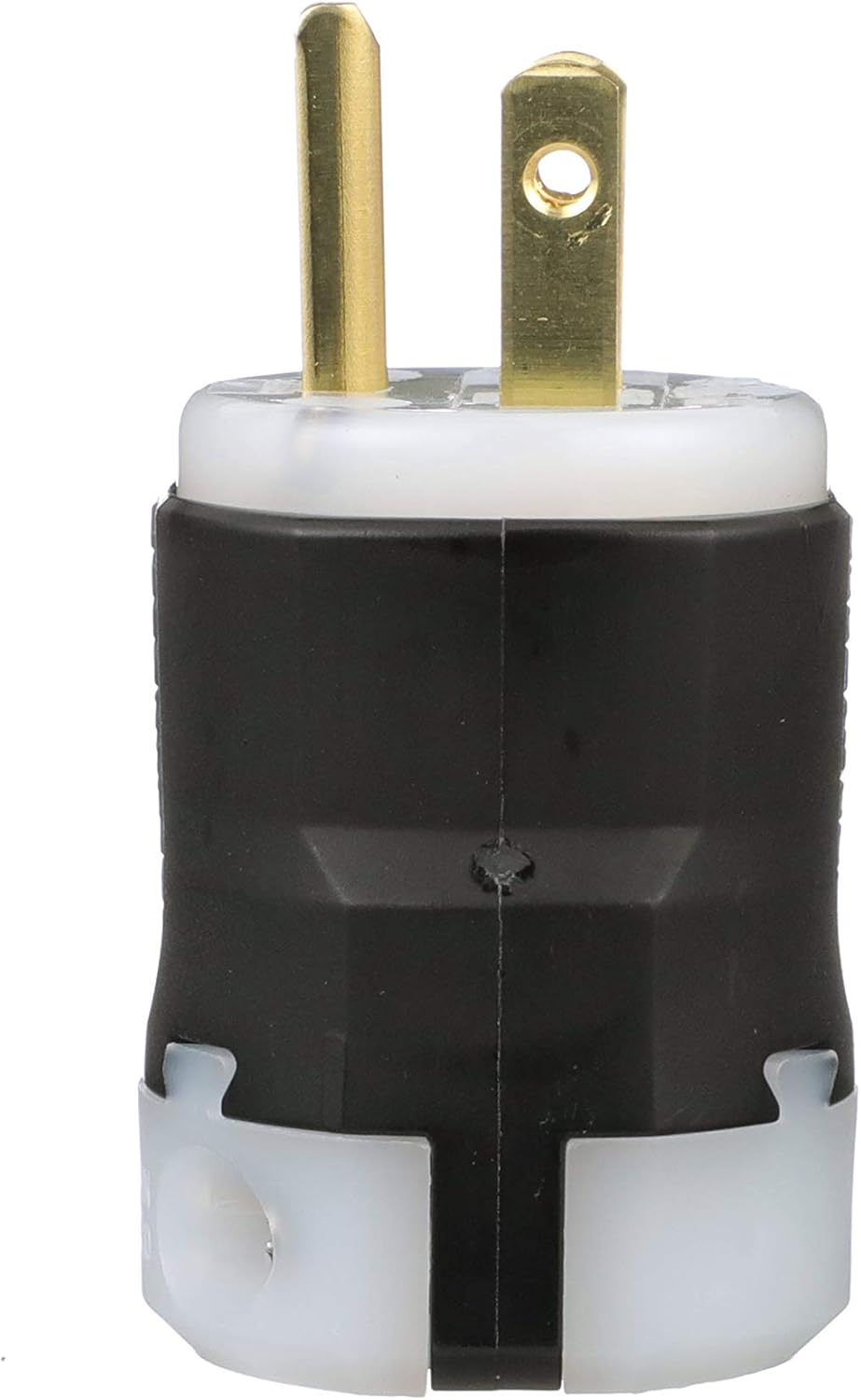

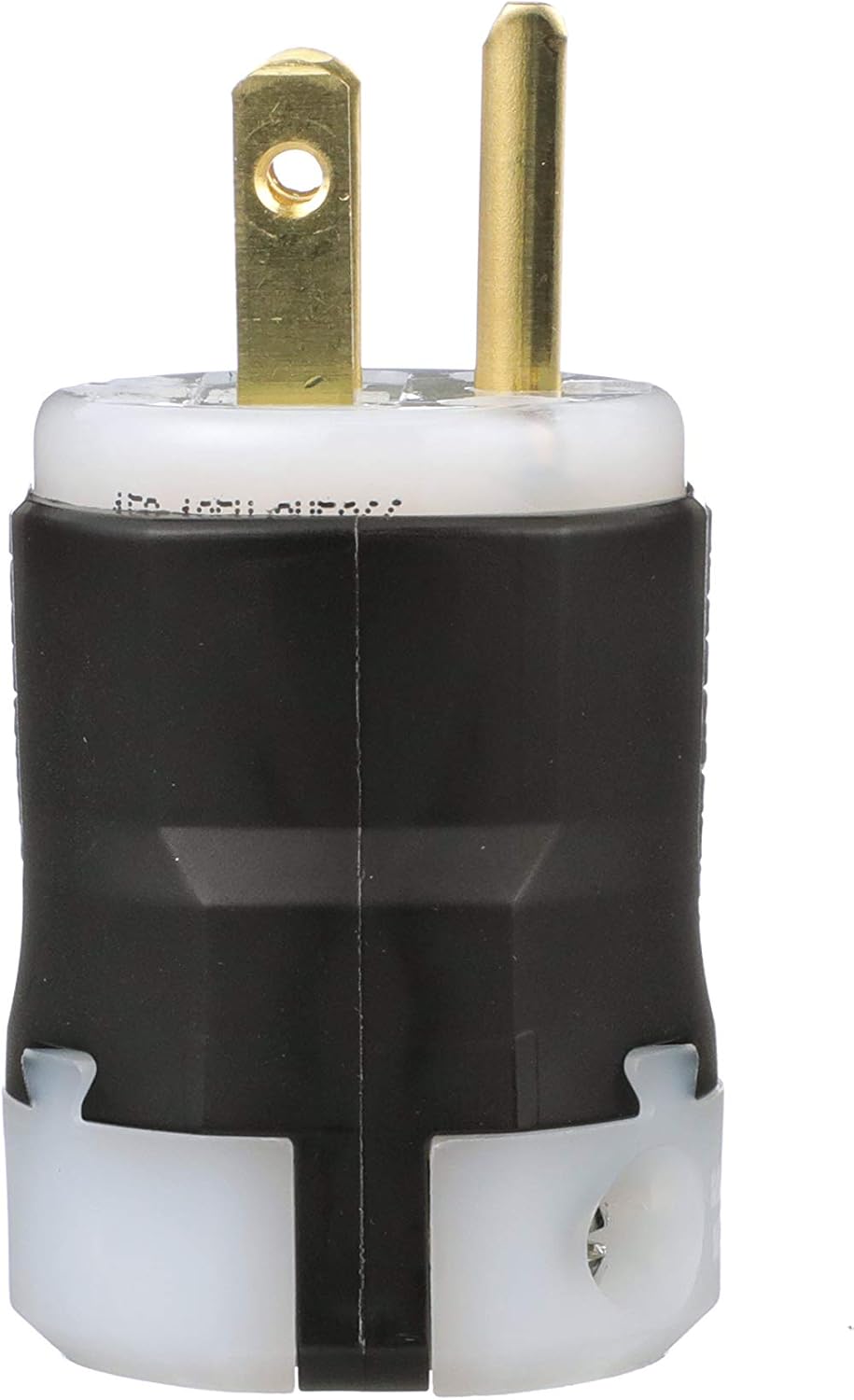

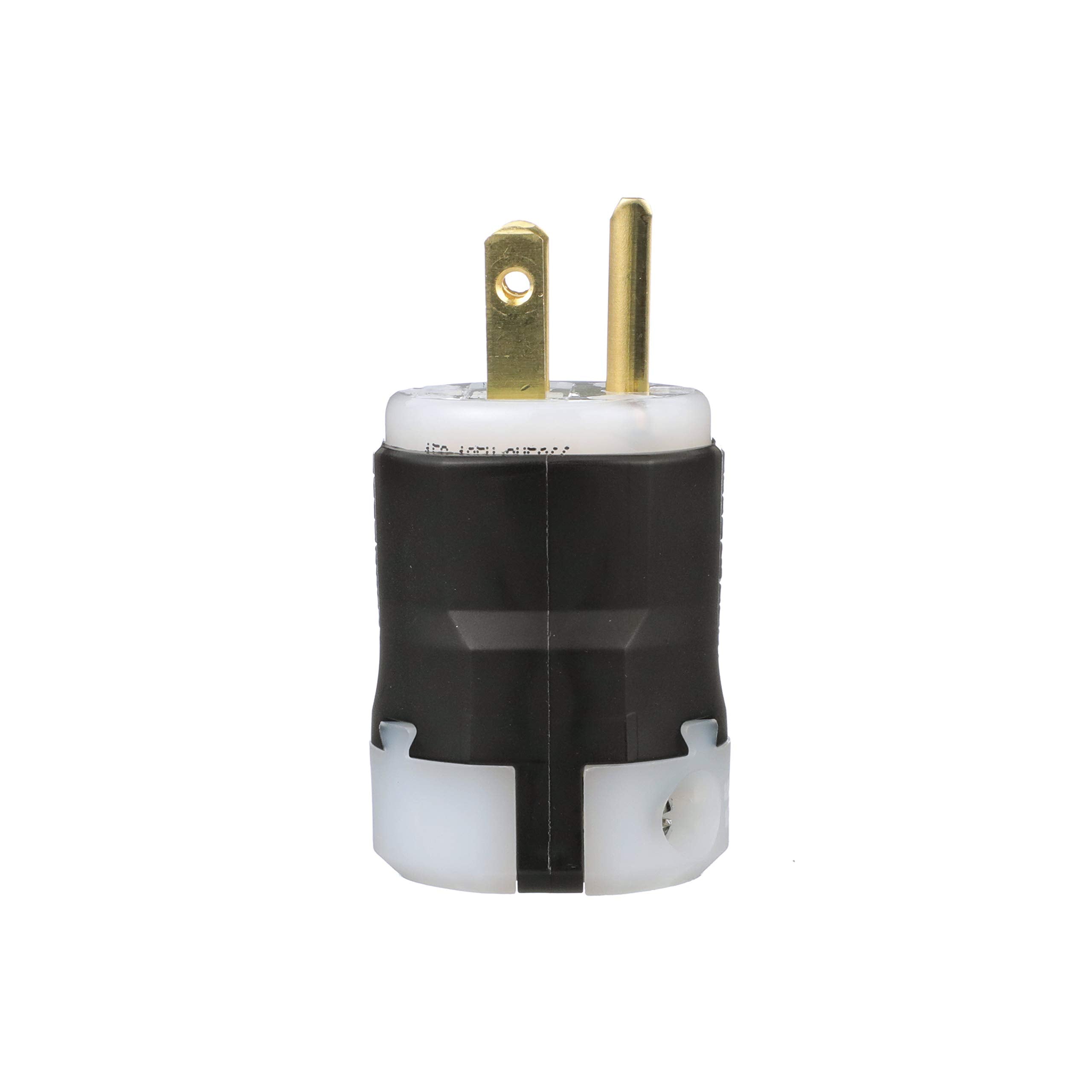

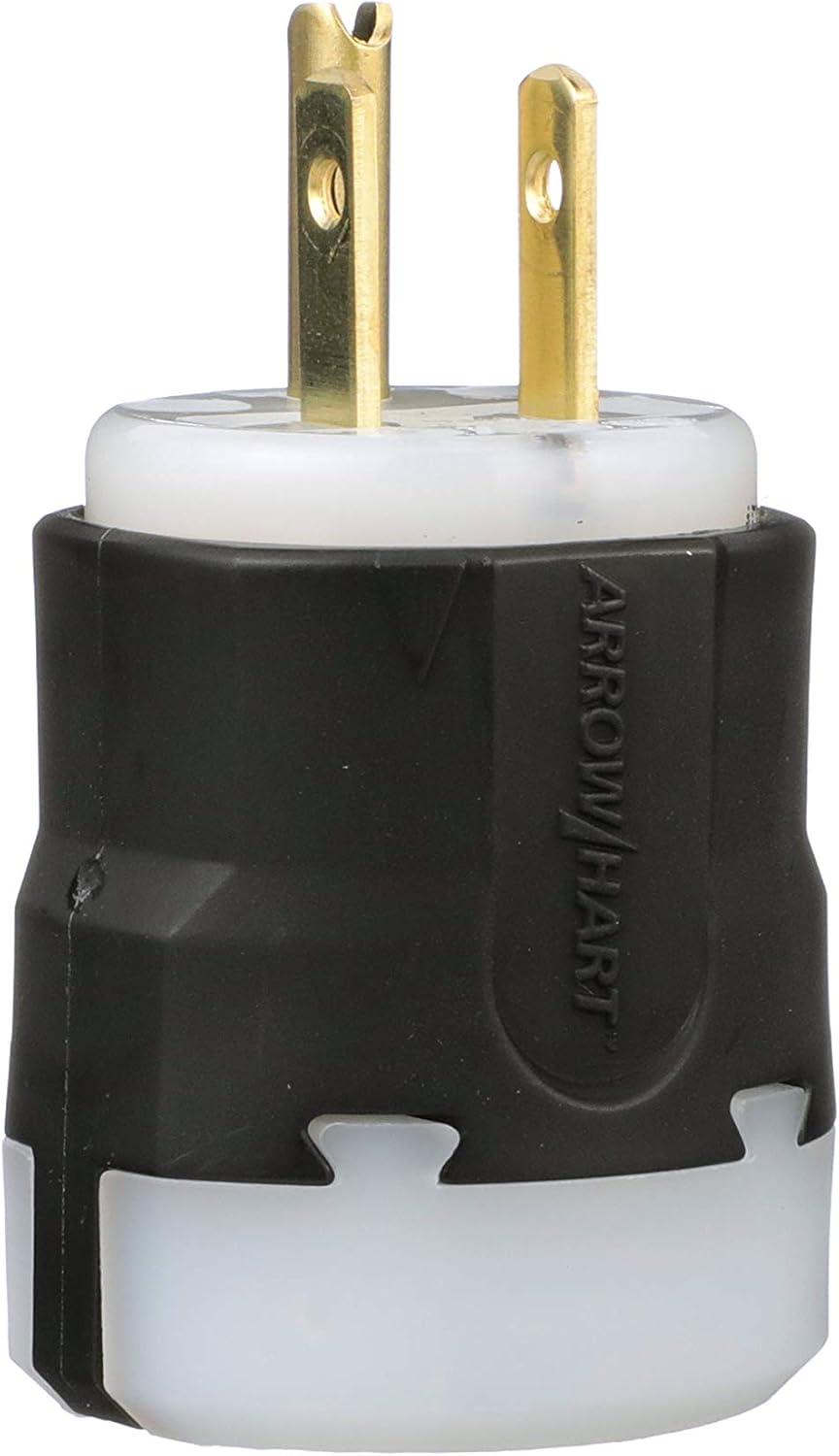

Eaton AH5266 Wiring Arrow Hart Impact Resistant Ultra Grip Plug 125 Vac 15 A 2 P 3 W

Product Description

The Eaton AH5266 Wiring Arrow Hart Impact Resistant Ultra Grip Plug is rated for 125 Vac and 15 A. This 2-pole, 3-wire plug is designed for quick and easy installation, providing reliable performance in industrial environments. It features a rugged nylon body that resists impact and exposure to chemicals.

• Impact Resistant
• Ultra Grip
• Dual range cord grip provides positive cord gripping

Product Highlights

This industrial grade straight blade plug offers reliable performance with a rugged design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH5266
• Country of Origin: MEX

Technical Specifications

• Voltage: 120 Volts
• Plug Format: Type B
• Certification: NEMA
• Connector Type: Plug in
• Style: Straight body
• Cord Diameter: 0.33 to 0.66 in
• Grade: Industrial
• Material: Nylon
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 167 Deg F
• Terminal Type: Back Wire/Screw
• Type: Grounding
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Series: Arrow Hart
• Wire Gauge: 16 - 12 AWG
• Dielectric Strength: 1000 V
• Listing: UL Listed
• Cord Range: 0.38 - 0.66 in
• Standards/Approvals: cULus Listed|NOM Certified|Federal Specification W-C-596F
• Current Rating: 15 Amp
• Connection Type: Screw
• Wire Size: 18 to 12 AWG
• Wiring Type: Back
• Flammability Rating: UL 94-V2
• AWG: 18-12
• Poles: 2
• Amperage: 15
• Wiring: Back Wire
• Application: Industrial
• Product Type: Straight Blade Plug
• Product Name: Eaton Arrow Hart ultra grip straight blade plug
• Catalog Number: AH5266
• UPC: 032664737503
• Product Length/Depth: 2.23 in
• Product Height: 2.1 in
• Product Width: 2.59 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM Federal Specification Classification W-C-596F
• Torque rating: 14 lbf-inch
• Allowable wire size: #18-12 AWG
• Design type: Straight blade
• Device grade: Extra heavy-duty industrial specification grade
• Device type: Plug
• Receptacle type: Two-pole, three-wire, grounding
