Eaton AH5266 Wiring Arrow Hart Impact Resistant Ultra Grip Plug 125 Vac 15 A

Product Description

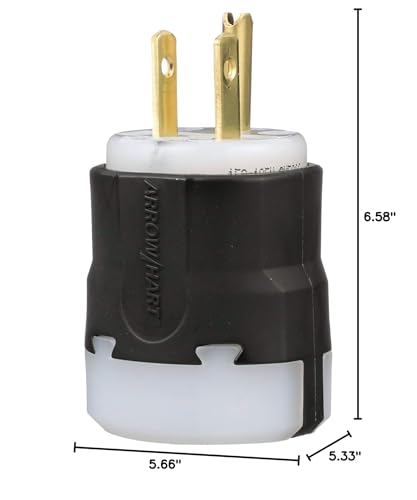

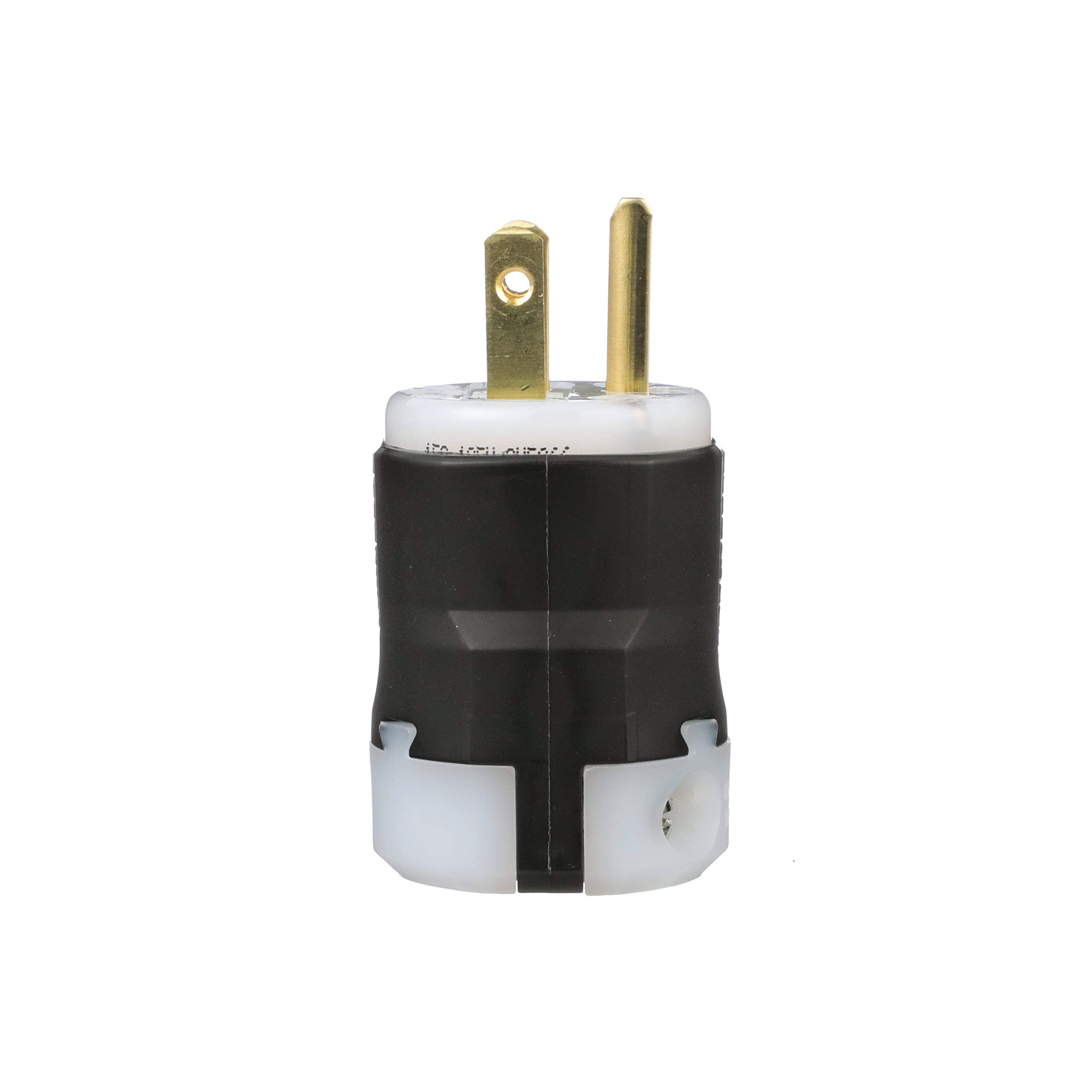

The Eaton AH5266 is a wiring Arrow Hart impact-resistant Ultra Grip plug rated for 125 VAC and 15 A. Designed for quick and easy installation, this plug provides reliable performance in tough industrial environments. It accommodates 16 - 12 AWG wire and features a Nema 5-15P configuration.

• Industrial Specification Grade Straight Blade Plugs & Connectors
• Install quickly and easily and provide reliable performance in tough industrial environments
• Ultra & Safety Grip Plugs & Connectors NEMA 5-15 - AH5266, AH5266A, AH5266BK, AH5269, AH5269BK

Product Highlights

This Eaton Arrow Hart plug is impact resistant and suitable for industrial and commercial applications requiring durability and secure connections.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH5266

Technical Specifications

• Series: Arrow Hart
• Poles: 2
• Wires: 3
• Wire Gauge: 16 - 12 AWG
• Amperage: 15 A
• Voltage: 125 VAC
• NEMA Configuration: Nema 5-15P
• Dielectric Strength: 1000 V
• Overall Length: 2.07 in
• Overall Width: 1.38 in
• Material: Nylon
• Temperature Range: -40 TO 75 deg C
• Cord Range: 0.38 - 0.66 in
• Contact Material: Brass
• Connection Type: Screw
• Design Type: Plug
• Special Features: Ultra grip
