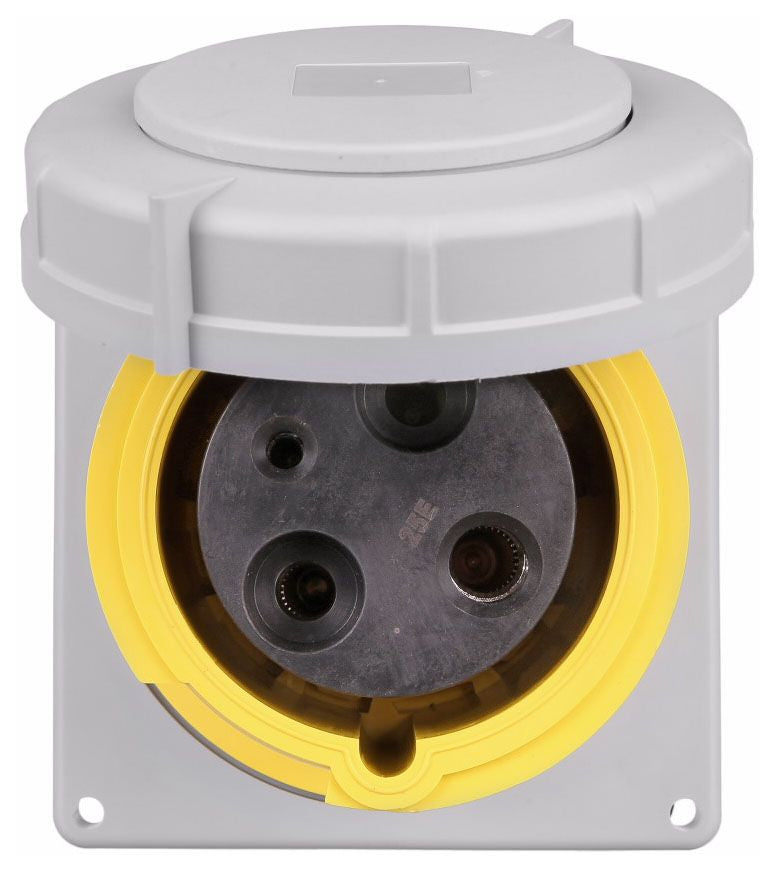

Eaton AH460R7W Locking Receptacle 60A 277/480V

Product Description

The EATON AH460R7W is a heavy-duty locking receptacle rated for 60 amps at 277/480 volts in a 3-phase, 4-wire configuration. It is designed for industrial and commercial electrical systems where secure, high-voltage connections are required. Electricians install this receptacle in applications that demand a twist-lock interface to prevent accidental disconnection under load. The unit measures 6.5 inches long by 5 inches wide by 5.12 inches tall and weighs 1.59 pounds, making it a compact but robust component suited for panel boards, machinery hookups, and portable equipment connections.

This receptacle is used in commercial and industrial settings where 3-phase power distribution is required. Typical applications include motor control circuits, large HVAC equipment, industrial machinery, and temporary power distribution panels. The 3-phase 4-wire design accommodates both line and neutral conductors, making it appropriate for wye-configured power systems operating at 277/480 volts. Licensed electricians install this device during new construction, equipment installation, or service upgrades where NEMA-style twist-lock connections are specified.

Key Features

• 60-amp rating suitable for high-current industrial and commercial loads
• 277/480-volt 3-phase 4-wire configuration for wye power systems
• Twist-lock interface prevents accidental disconnection under load
• Compact form factor at 6.5 x 5 x 5.12 inches for flexible installation locations
• Lightweight at 1.59 pounds for ease of handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for 3-phase 4-wire 277/480-volt twist-lock electrical systems in commercial and industrial environments.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power at the source panel before beginning any wiring work. Verify that the supply circuit ampacity and conductor sizing match the 60-amp rating of this receptacle before making connections. Do not exceed the voltage or amperage rating of this device.

Technical Specifications

• Amperage: 60 amps
• Voltage: 277/480 volts
• Phase Configuration: 3-phase, 4-wire
• Dimensions (L x W x H): 6.5 x 5 x 5.12 inches
• Weight: 1.59 pounds
• UPC: 04089361991

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH460R7W
