Product Description

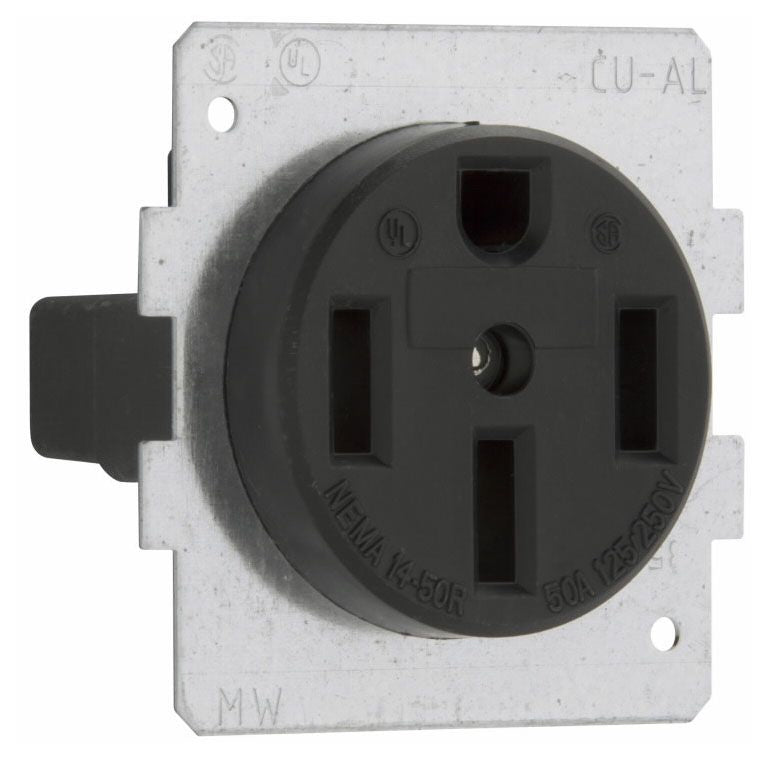

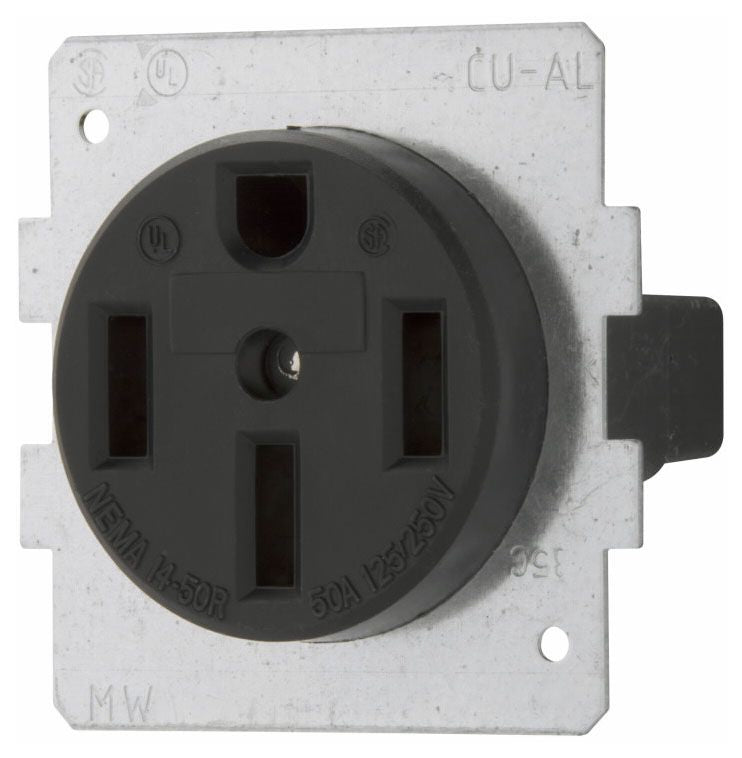

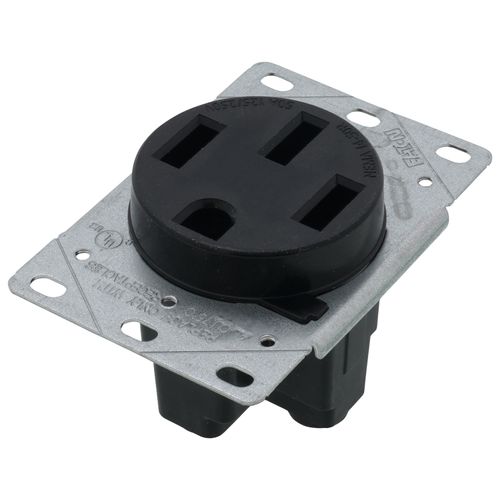

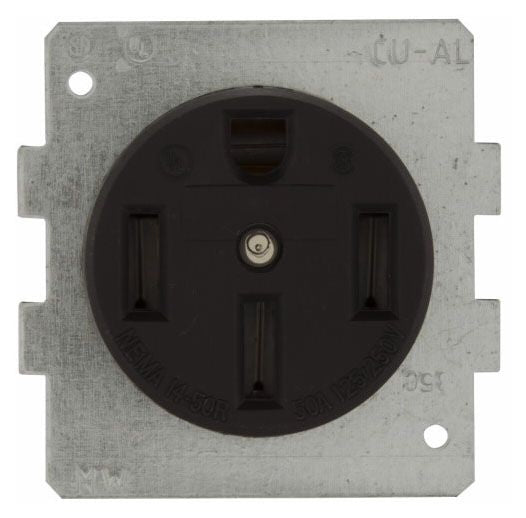

The EATON AH1258BK-F CWD AH1258BK-F Recp Sgl Flush is a 50 A, 125/250 V, 3P 4 W single flush receptacle designed for commercial applications. This Arrow Hart power device receptacle features a flush mount design and back wiring method. It is suitable for high amperage industrial or commercial power connectivity applications.
- Flush mount design
- Rated for 50A and 125/250V
- Ideal for industrial and commercial applications
Product Highlights
Single flush receptacle with 50A, 125/250V rating, designed for commercial and industrial power connectivity.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: AH1258BK-F
-
Country of Origin: MEX
Technical Specifications
-
Type: Heavy-Duty
-
Brand: Eaton
-
Color: Black
-
Voltage: 125/250 Volt
-
Amperage: 50 Amp
-
Material: Steel
-
Product UPC: 03266400638
-
12-Digit UPC: 032664006388
-
Mounting Type: Flush
-
Number of Poles: 3 Pole
-
Number of Wires: 4 Wire
-
Configuration: NEMA 14-50R
-
Voltage Rating: 125/250 Volt AC
-
Current Rating: 50 Amp
-
Ground Type: Grounding
-
Material (Body): Glass-Filled Nylon
-
Material (Mounting Strap): Heavy Gauge Galvanized Steel
-
Mounting: Flush Mount
-
Approval: UL 498/E15058, CSA C22.2, NOM 426
-
RoHS Compliant: Yes
-
NAFTA Compliant: Yes
-
Connection Type: Screw
-

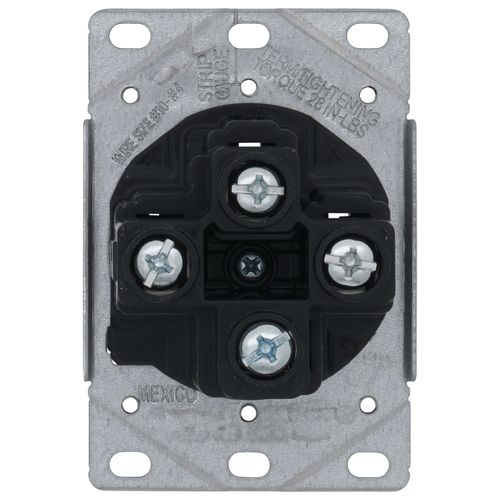

Wiring Method: Back
-
Wire Size: #12 to 4 AWG
-
Matching Plug: S21
-
Amperage Rating: 50 A
-
Vendor SKU: AH1258BK-F
-
Application: Ideal for any high amperage industrial or commercial power connectivity application
-
Manufacturer: EATON
-
Poles: 3
-
Ground: Grounding
-
SKU: AH1258BK-F
-
Product Name: Eaton Arrow Hart power device receptacle
-
Catalog Number: AH1258BK-F
-
Product Length/Depth: 2.112 in
-
Product Height: 3.688 in
-
Product Width: 2.455 in
-
Certifications: UL 498 C22.2
-
Product Type: Power device receptacle
-
Features: Range receptacle
-
Special features: Range receptacle
-
Receptacle type: Three-pole, four-wire, grounding
-
Style: Power
-
NEMA configuration: 14-50R
-
Base color: Black
-
Design type: Receptacle
-
Model: AH1258BK-F
-
MPN: AH1258BK-F
-
UPC: Does Not Apply
-
Category: Business & Industrial
