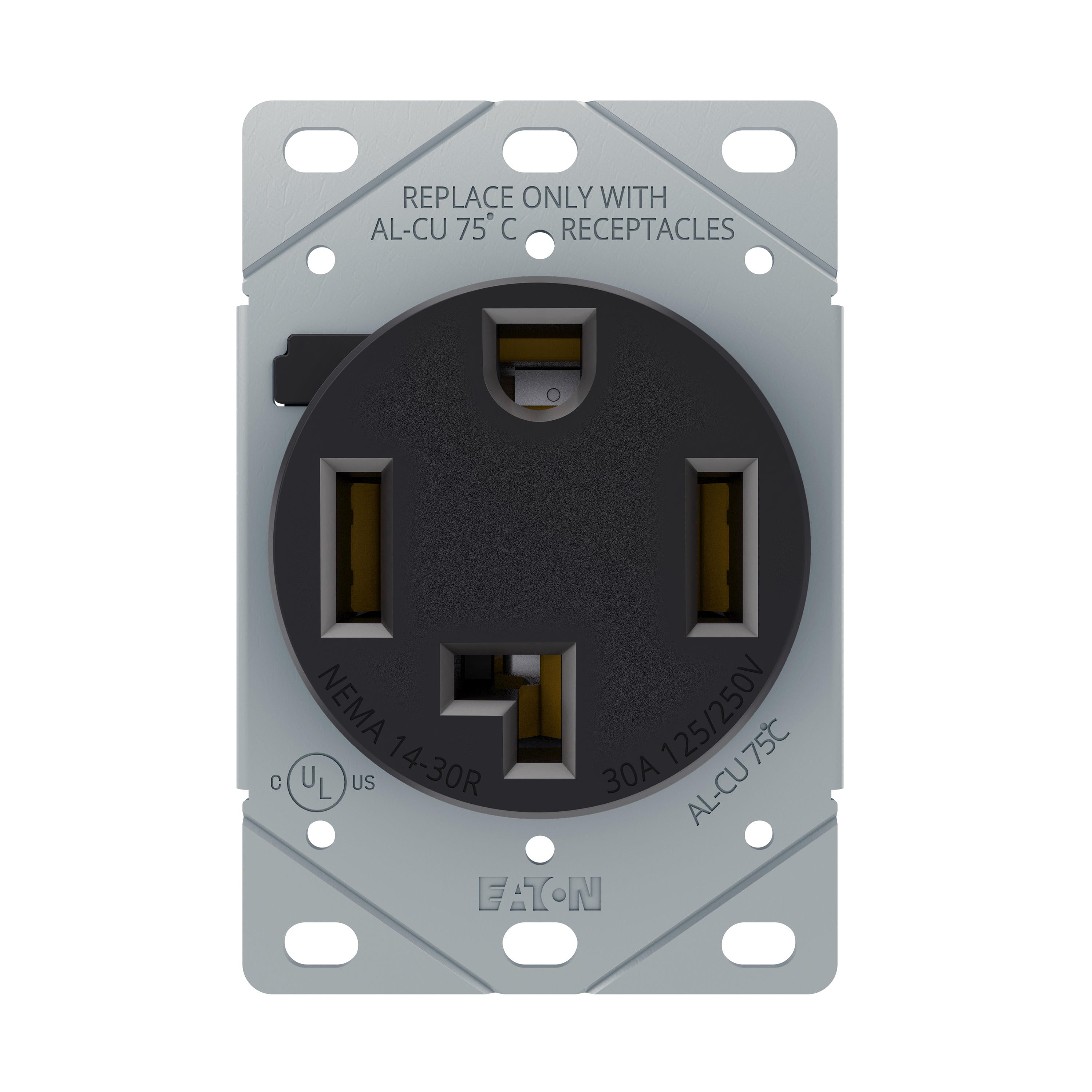

Eaton AH1257BK-F Recp Sgl Flush 30A 125/250V 3P4W Str Bk

Product Description

The EATON AH1257BK-F is a single flush receptacle with a current rating of 30A and a voltage rating of 125/250V. This power device receptacle features a NEMA 14-30R configuration and is designed for flush mounting with a screw connection type and back wiring method. Ideal for high amperage industrial or commercial power connectivity applications.

• Straight Blade Power Receptacle
• NEMA 14-30R Configuration
• UL 498/E15058, CSA C22.2, NOM 426 Approval

Product Highlights

Flush mount receptacle with a NEMA 14-30R configuration. Compliant with UL 498/E15058, CSA C22.2, and NOM 426 standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH1257BK-F
• Country of Origin: MEX

Technical Specifications

• Brand: Eaton
• Product UPC: 03266400636
• 12-Digit UPC: 032664006364
• Type: Single Dryer
• Configuration: NEMA 14-30R
• Voltage Rating: 125/250 Volt AC
• Current Rating: 30 Amp
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Glass-Filled Nylon (Body), Heavy Gauge Galvanized Steel (Mounting Strap)
• Mounting: Flush Mount
• Approval: UL 498/E15058, CSA C22.2, NOM 426
• RoHS Compliant: True
• NAFTA Compliant: True
• Connection Type: Screw
• Wiring Method: Back
• Wire Size: #12 to 4 AWG
• Matching Plug: S21
• Amperage Rating: 30 A
• Application: Ideal for any high amperage industrial or commercial power connectivity application
• Manufacturer: EATON
• Product Type: Power device receptacle
• Features: Dryer receptacle
• Special features: Dryer receptacle
• Mounting method: Flush
• Number of poles: Three-pole
• Style: Power
• NEMA configuration: 14-30R
• Base color: Black
• Design type: Receptacle
• Receptacle type: Three-pole, four-wire, grounding
