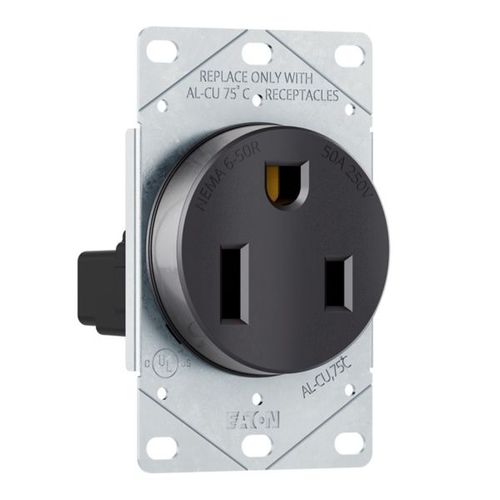

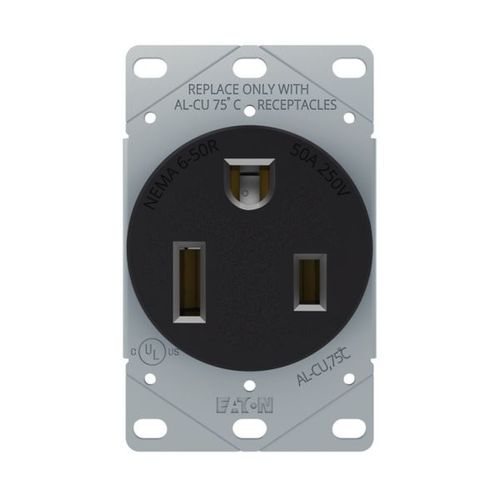

Eaton AH1254BK-BOX Power Receptacle 50 Amps

Product Description

The Eaton AH1254BK-BOX power receptacle features a heavy-duty design suitable for high amperage industrial or commercial power connectivity applications. This flush mount receptacle allows back wiring and features a heavy gauge galvanized steel mounting strap for corrosion resistance, fitting in either 1- or 2-gang enclosures. It accepts copper or aluminum wire.

• Flush mount

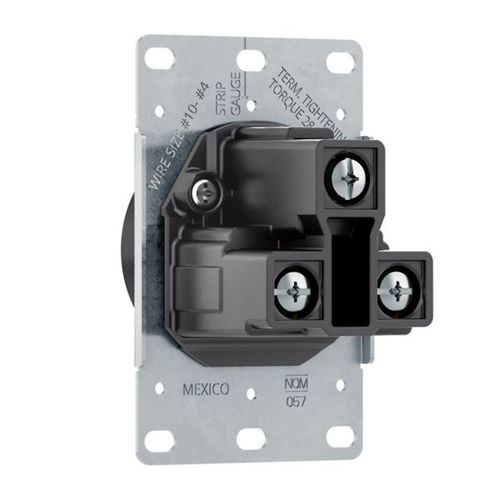

• Back wiring method
• Canadian mounting strap

Product Highlights

Ideal for high-amperage applications, this receptacle ensures a secure and corrosion-resistant power connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH1254BK-BOX

Technical Specifications

• Wiring: Back
• Type: 2-Pole 3-Wire Grounding
• NEMA Rating: 6-50R
• Poles: 2
• Product Type: Power Device Receptacle
• Voltage: 250V
• Mount: Flush
• Amperage: 50A
• Catalog Number: AH1254BK-BOX
• UPC: 032664005749
• Product Length/Depth: 2.17 in
• Product Height: 3.69 in
• Product Width: 2.25 in
• Certifications: UL 498 C22.2
• Features: Canadian mounting strap
• Special features: Canadian mounting strap
• Wiring method: Back
• Number of wires: 3
• Mounting method: Flush
• Number of poles: Two-pole
• Connection type: Screw
• Style: Power
• NEMA configuration: 6-50R
• Base color: Black
• Design type: Receptacle
• Receptacle type: Two-pole, three-wire, grounding
