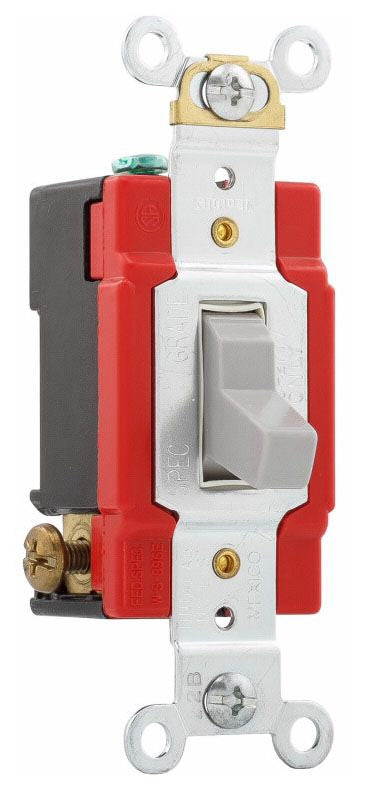

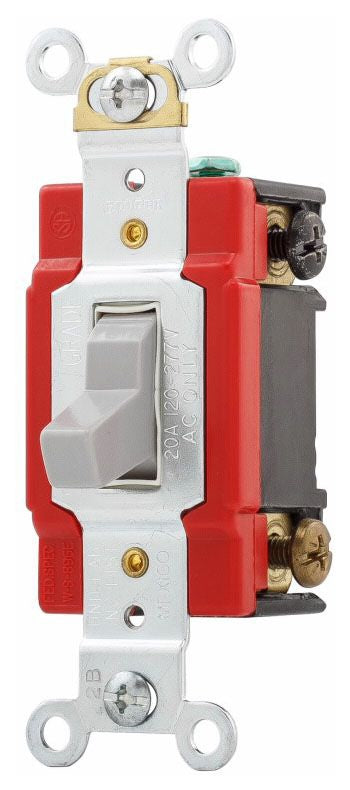

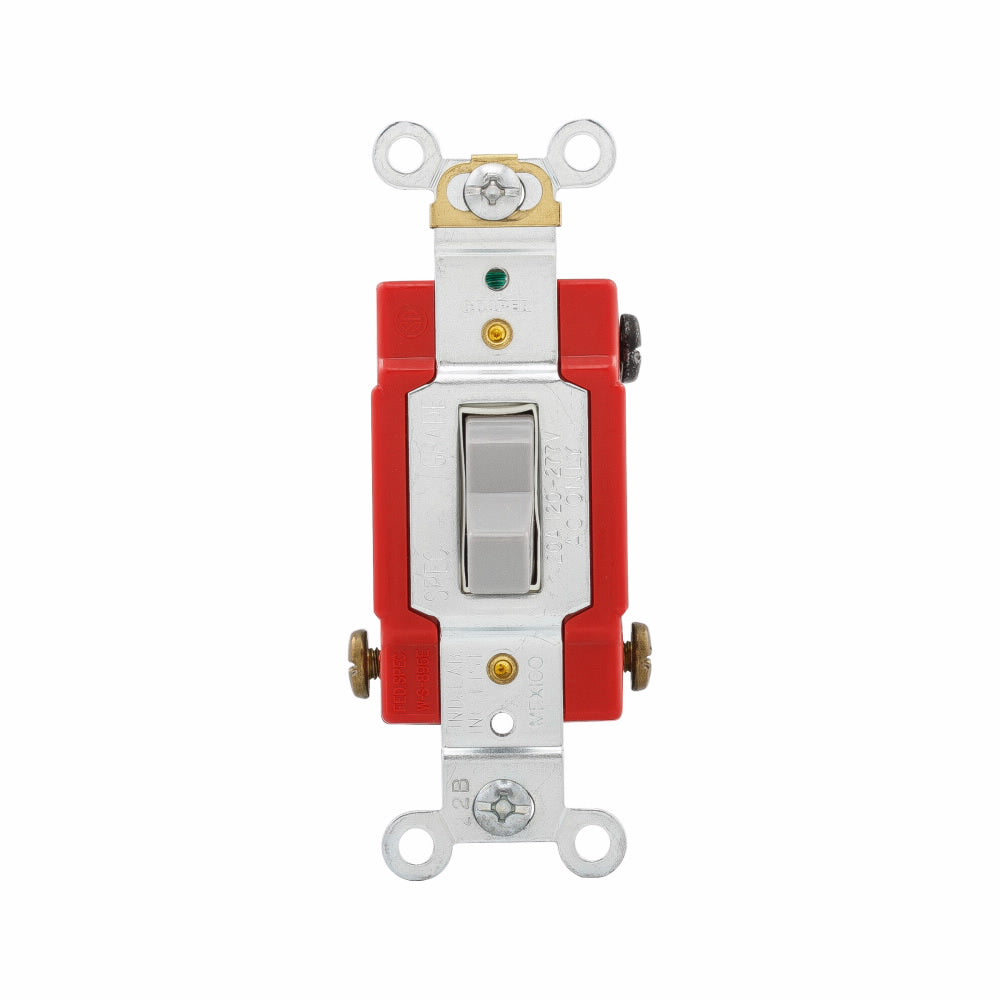

Eaton AH1223GY Toggle Switch 3-Way 20A 120/277V

Product Description

The EATON AH1223GY Arrow Hart toggle switch is a 3-way automatic grounding premium specification grade switch. Rated at 20A and 120/277V, it is suitable for industrial and commercial applications. The switch features a toggle actuator and screw terminals, with an operating life of 30000 cycles. It is constructed from polycarbonate and designed for wall mounting.

• Color-coded faces identify amperage.
• 14 to 10 AWG terminal accommodation.
• 1 hp at 120 VAC, 2 hp at 240 VAC.

Product Highlights

This EATON toggle switch offers reliable power control for industrial and commercial settings, featuring robust construction and versatile wiring options.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH1223GY
• Country of Origin: CHN

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Industrial, Commercial, Non-Residential, Industrial Facilities and Factories Facility Applications
• Color: Gray
• Operating Temperature: -4 to 140 deg F
• Manufacturer Part Number: AH1223GY
• Material: Polycarbonate
• Mounting: Wall
• Number of Poles: 1
• Operating Cycles: 30000 Cycles
• Power Rating: 1 hp
• Standards/Approvals: CSA C22.2 No. 111/10016/6241-05|cULus Listed|Federal Specification W-S-896-E|FULs Listed|NAFTA Compliant|NOM 426|UL 20 File No. E18704|UL 94 V-2 Flammability Rated
• Terminal Type: Screw
• Type: 3-Way Automatic Grounding Premium Specification Grade
• Voltage Rating: 120/277 V
• Wiring Method: Back and side
• Switch Type: Three-way
• Allowable Wire Size: #14-10 AWG
• Terminal Enclosure Material: Brass
• Grade: Industrial
• Switch Configuration: Three Way
• Current Rating: 20 A
• Grounding: Automatic
• Operator: Toggle
• Wiring: Back and Side Wired
• Wire Size Range: Up to 10 AWG Solid or Stranded
• Approvals: cULus, NOM
• Maximum Amperage: 20 Amp
• Maximum Voltage: 120V/277V
