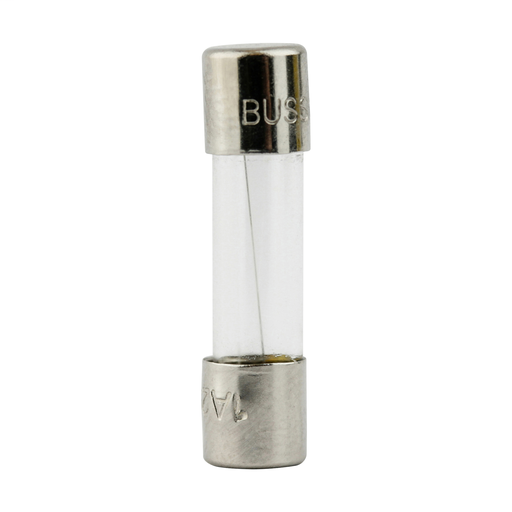

Eaton AGX-1 Bussmann Series Fast Acting Fuse 1/4 x 1 Inch 1 Amp 250 VAC

Product Description

The Eaton AGX-1 is a fast-acting fuse ideal for electronic circuits with an amperage of one amp and a voltage rating of 250 VAC. It features a compact design that measures a quarter inch in diameter and one inch in length. This fuse is suitable for applications requiring quick response to overloads

• Type: Electronic, Small Dimension
• Interrupt Rating: 10 kAIC
• Response Time: 42.3 milliseconds

Product Highlights

The Eaton AGX-1 provides reliable protection for sensitive electronic components, ensuring system integrity in critical applications.

Product Information

Standard Information

• Brand: Eaton
• Sub Brand: Bussmann Series

Technical Specifications

• Amperage: 1 Amp
• Voltage: 250 Volt
• Applications: Electronic Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Material: Fiberglass
• Size: 0.25 inches diameter x 1.00 inches length
• Interrupt Rating: 10 kAIC
• Response Time: 42.3 milliseconds
• Standard: Contact Manufacturer
• Tc Connection: Ferrule End x Ferrule End
