Eaton AGC-30-R BUS SMALL DIMENSION FUSE

Product Description

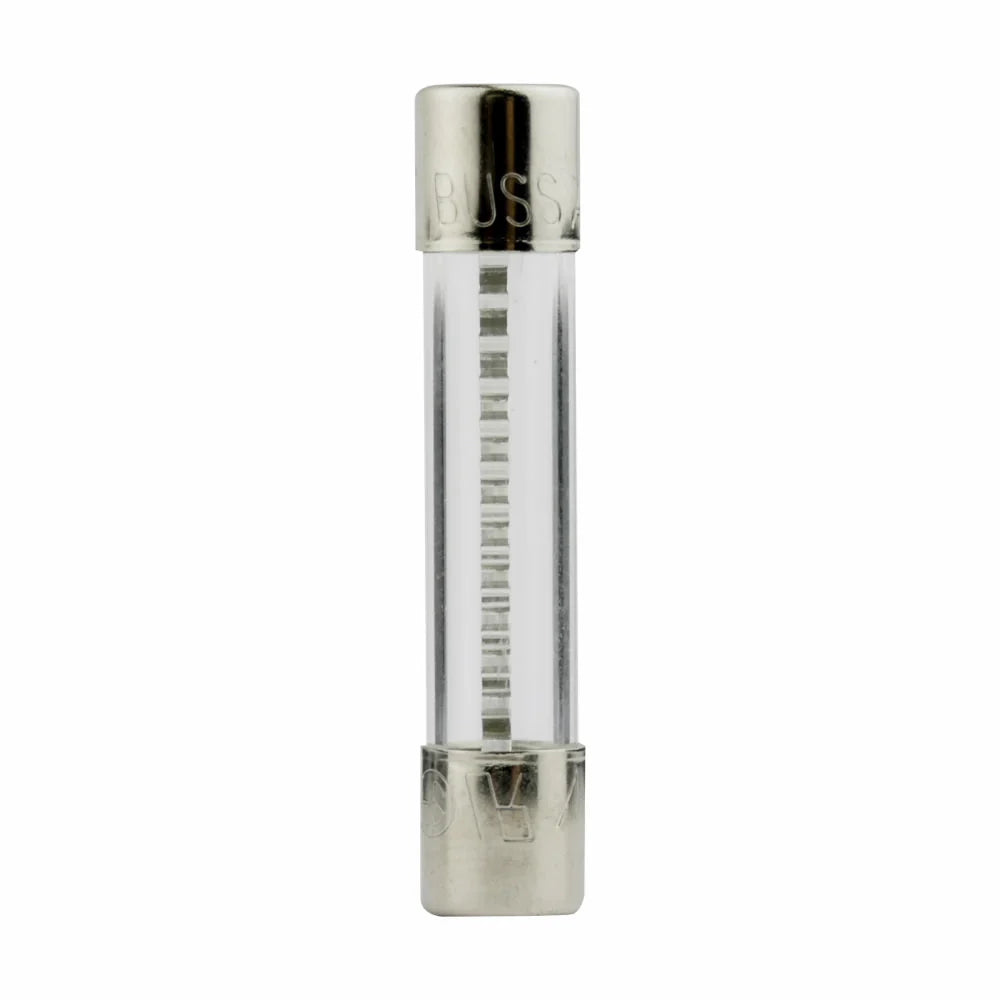

The Eaton AGC-30-R is a small dimension fast-acting fuse designed for optimal protection of electronic circuits. It features a cylindrical body made of glass, and is suitable for various applications including overcurrent protection. This fuse operates at thirty amperes and thirty-two volts AC with a one kA interrupt rating.

• Fast acting design for enhanced component protection
• Multiple amp/volt ratings for versatility in circuit protection
• Simple installation into Bussmann fuse holders

Product Highlights

The Eaton AGC-30-R fuse is a reliable choice for protecting sensitive electronic components.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171265518

Technical Specifications

• Amperage Rating: 30 A
• Application: Electronic Circuit Applications
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Element: Single
• Indicating: Non-Indicating
• Material: Glass
• Mounting Type: Holder
• Response Time: 60 min, 120 s
• Series: AGC
• Standards/Approvals: RoHS Compliant, CSA Certified, UL Listed
• Terminal Type: Ferrule
• Voltage Rating: 32 VAC
