Product Description

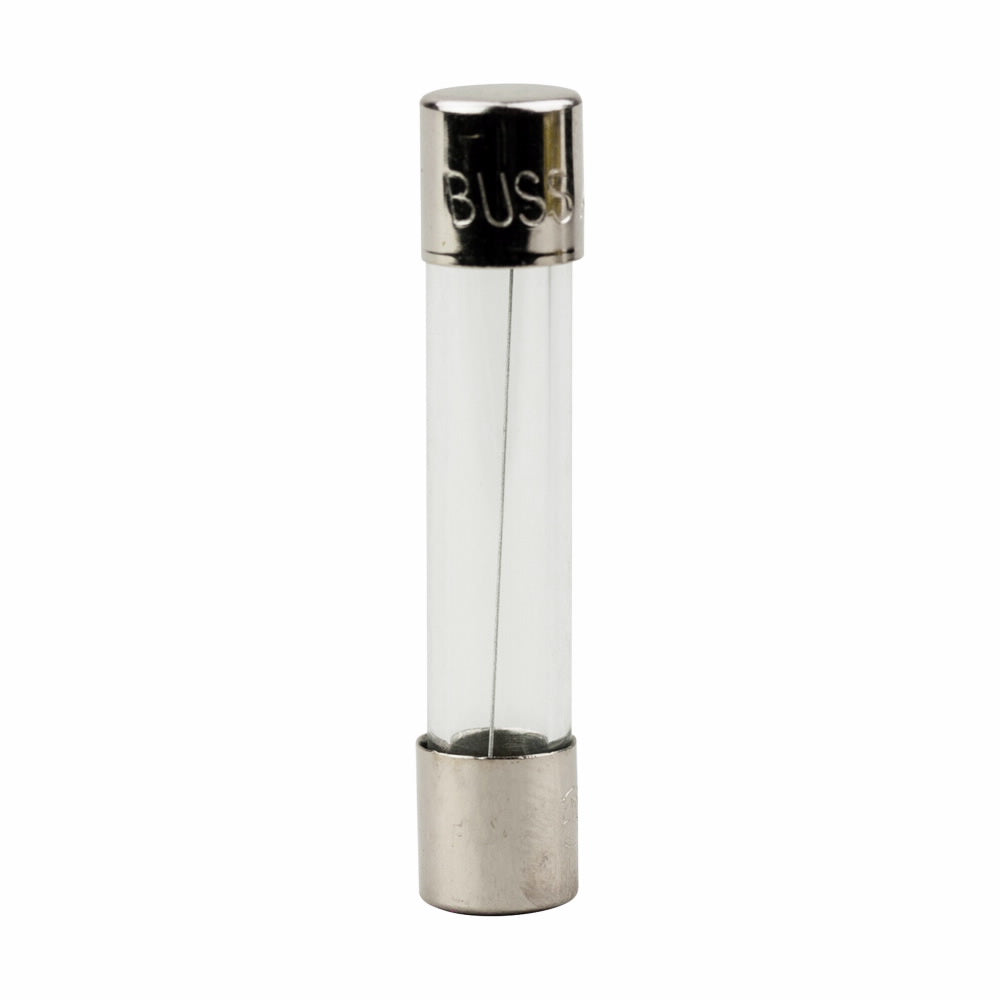

The Eaton AGC-1-1/4-R is a fast-acting fuse designed for electronic circuits. This glass tube fuse offers a maximum rating of 1.25 amps and operates at a voltage of 250 VAC with a 10 kA interrupt rating. It is suitable for use in various electronic applications, ensuring effective protection against overcurrent conditions.
- Type: Fast-acting glass tube fuse
- Voltage Rating: 250 VAC
- Amperage Rating: 1.25 A
Product Highlights
Designed with nickel-plated brass end caps, this fuse provides reliable connections. The AGC series is known for its efficiency and fast response times, making it ideal for protecting sensitive electronic components.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Sub Brand: Bussmann Series
Technical Specifications
-
Body Size: 1/4 inch diameter x 1-1/4 inch length
-
Material: Glass
-
Response Time: 60 minutes at 135%, 120 seconds at 200%
-
Interrupt Rating: 100, 10000 AIC
-
Mounting Type: Holder
-
Applications: Electronic Circuits
-
Standards: RoHS Compliant, CSA Certified, UL Listed
-
Terminal Type: Ferrule
