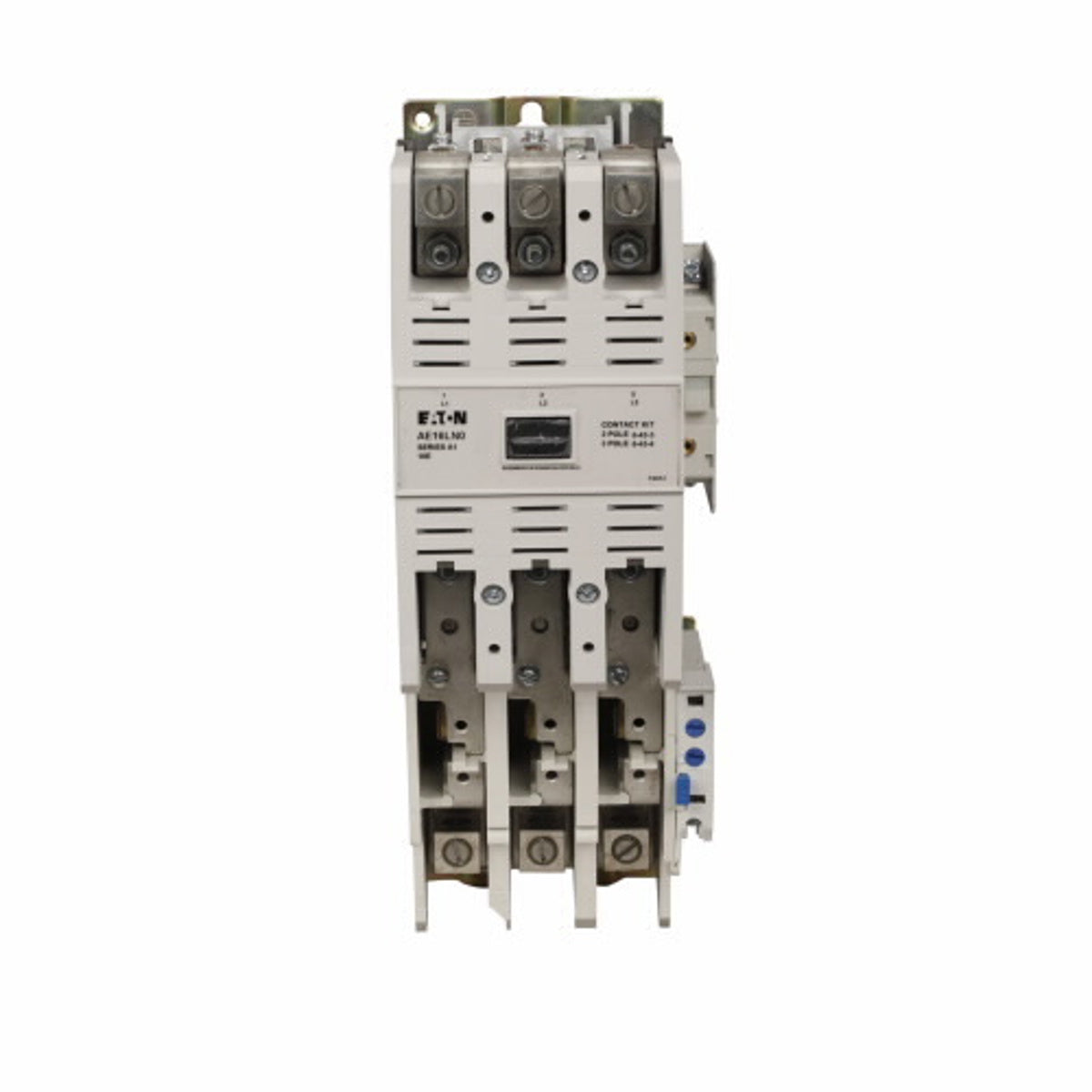

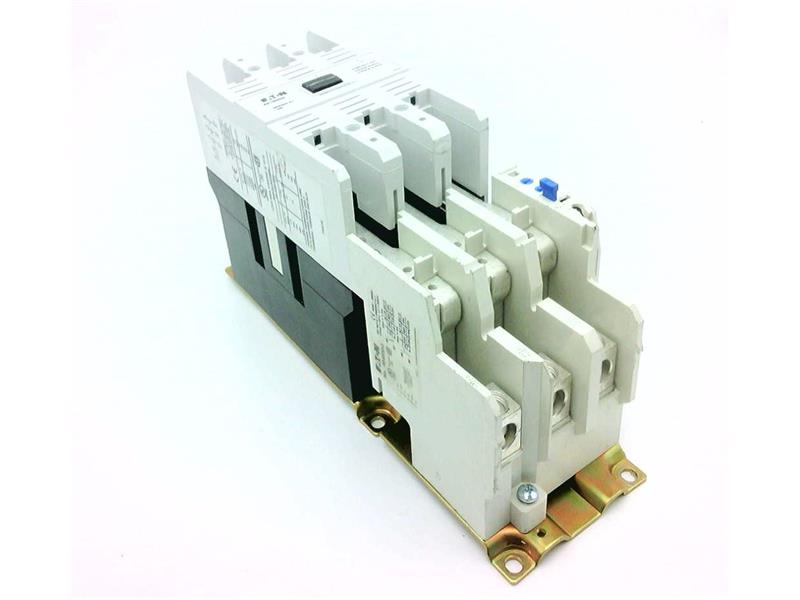

Eaton AE16NN0A Iec Open 3P Str Sz N 120V Coil

Product Description

The Eaton AE16NN0A IEC enclosed control line (ECX) allows you to select motor starting equipment specific to your needs. This open type starter features a 110/120 VAC coil, and is UL/CUL listed. It is designed to meet international standards and carries UL and cUL certifications. Suitable for use with Freedom Series motor control systems.

• Starter with C306 bi-metal OLR
• Horizontal starter mount
• Suitable for motor and power control equipment applications

Product Highlights

The Eaton AE16NN0A is an open type starter with a 110/120 VAC coil, designed for motor and power control in industrial facilities. It is UL/CUL listed and meets international standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16NN0A
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: AE16NN0A
• Manufacturer: Eaton Cutler-Hammer
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Facility: Power Distribution and Control|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: UL/CUL listed
• UPC: 782113603964
• GTIN: 00782113603964
• Item Type: Enclosed starter
• Amperage Rating: 140 A
• Coil Voltage: 110/120 VAC
• Enclosure: NEMA 4
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Overload Relay: C306 Bimetal
• Phase: 3
• Series: Freedom
• Standards/Approvals: UL File No. E1491|NLDX|NEMA Approved|IEC Certified|VDE Approved|BS Certified|CSA Certified
• Type: Open
• Voltage Rating: 600 VAC
• Family: Freedom Series
• Amp: 140
• Volt: 600
• Coil Voltage Min: 110
• Coil Voltage Max: 120
• Category: Motor Starter
• Nema Rating: 4
• Mfrcode: CUTHMR
• PRODUCT NAME: IEC STARTER
• TYPE: NON REVERSING
• Addnl Information: APPROVAL UL, CSA NUMBER OF POLE 3
• SIZE: IEC N
• CURRENT RATING: 140 AMPERE (UL), 175 AMPERE (IEC THERMAL CURRENT)
• Enclosure Type: OPEN
• Construction Standard: IEC
• Power Rating Voltage: 37 KW AT 220 V 3 PHASE, 45 KW AT 660 V 3 PHASE, 75 KW AT 380/415/440 V 3 PHASE, 90 KW AT 500/550 V 3 PHASE, 10 HP AT 115/230 V 1 PHASE, 40 HP AT 208 V 3 PHASE, 50 HP AT 240 V 3 PHASE, 100 HP AT 480 V 3 PHASE, 125 HP AT 600 V 3 PHASE
• Auxiliary Contact: 1NO
• PHASE: 1/3
• Overloads: BIMETALLIC AMBIENT TEMPERATURE COMPENSATED 1NO-1NC AUTOMATIC/MANUAL RESET CLASS 10/20
• Part #: AE16NN0A
