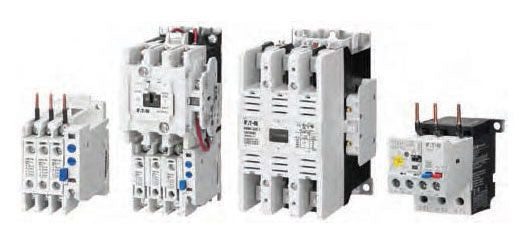

Eaton AE16MN0A Non-reversing Contactor

Product Description

The EATON AE16MN0A is a non-reversing contactor designed for motor control and power switching applications in commercial and industrial electrical systems. Contactors of this type control the connection of electrical power to motors and other high-draw loads, opening and closing the circuit under load conditions. This unit measures 15.1 inches long by 9.1 inches wide by 7.1 inches tall and weighs 10.85 pounds, placing it in a mid-to-large frame class suitable for demanding motor branch circuit work. Licensed electricians and industrial maintenance technicians are the primary installers.

Non-reversing contactors like the AE16MN0A are used in applications where the motor or load runs in a single direction only. Common install scenarios include air handling units, pumps, compressors, and conveyor systems found in light commercial and industrial facilities. This contactor fits into motor control centers, standalone enclosures, and combination starter assemblies where reliable single-direction switching is required.

Key Features

• Non-reversing configuration for single-direction motor and load control
• Mid-to-large frame size suited for commercial and industrial applications
• Overall dimensions of 15.1 inches x 9.1 inches x 7.1 inches for enclosure planning
• Shipping weight of 10.85 pounds indicates robust construction
• Manufactured by EATON, a recognized name in power distribution and motor control equipment

Compatibility

Designed as an OEM-style non-reversing contactor for commercial and industrial motor control applications. Confirm voltage rating, pole configuration, and current rating against the existing motor control circuit before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and any applicable local codes. De-energize and lock out the circuit before removing or installing the contactor. Verify that the enclosure or motor control center has adequate space and ventilation to accommodate the unit dimensions. Do not energize the contactor until all connections are torqued and inspected per the manufacturer wiring diagram.

Technical Specifications

• Type: Non-Reversing Contactor
• Length: 15.1 inches
• Width: 9.1 inches
• Height: 7.1 inches
• Weight: 10.85 pounds
• UPC: 78211360395

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16MN0A
