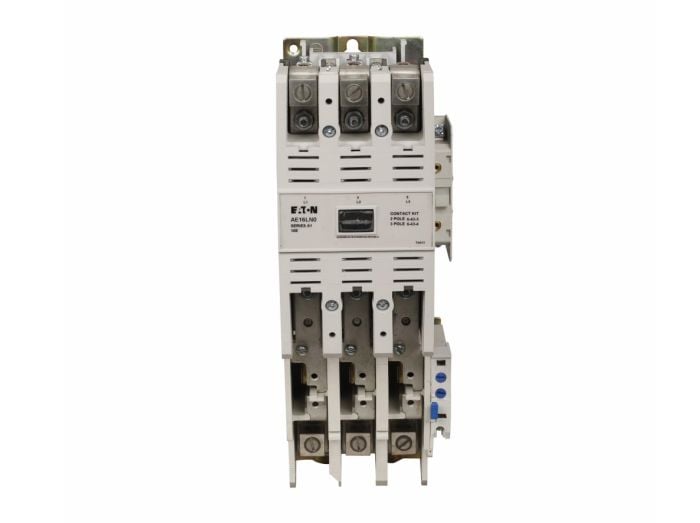

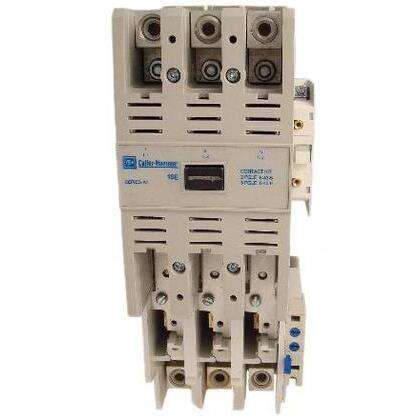

Eaton AE16LN0A Freedom Series IEC Open Contactor 120V

Product Description

The EATON AE16LN0A is an IEC full voltage non-reversing starter. This 600V rated, 3-phase magnetic starter features a size L thermal overload relay and a 120 VAC/ 60 Hz - 110 VAC/ 50 Hz coil. It is designed to withstand 2,000,000 electrical and 20,000,000 mechanical operations.

• IEC Size L
• 120 VAC coil
• Non-Reversing Starter

Product Highlights

The EATON AE16LN0A is ideal for switching motor loads in applications where running over current protection is either not required or is provided separately.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16LN0A
• Country of Origin: DOM

Technical Specifications

• Phase: 3
• Volts AC Control: 110/120
• Poles: 3
• Amps: 85
• Mounting: Surface
• Volts AC: 600
• Manufacturer Part Number: AE16LN0A
• Manufacturer: Eaton
• Product Series: Freedom
• Description: CONTACTOR
• Style: Open
• Industry Standard: IEC
• Voltage: 110-120 VAC
• Nominal Voltage: 120 VAC
• UL Motor Starting (AC3): 85 A
• General Purpose (AC1): 100 A
• Coil Type: Magnetic
• Approvals: CSA, UL
• Type: Non-Reversing Starter
• Construction Standard: I.E.C. 600V AC
• Size: IEC Size L
• UL Cont. Amps: 85A
• Coil Voltage: 120/110V 60/50Hz
• Hp 1-Phase 115V: 7.5 Hp
• Hp 1-Phase 230V: 10 Hp
• Hp 3-Phase 200V: 25 Hp
• Hp 3-Phase 230V: 30 Hp
• Hp 3-Phase 460V: 60 Hp
• Hp 3-Phase 575V: 75 Hp
• Enclosure Type: Open
• Overload Relay: Interchangeable Heater
• Motor FLA: Refer to Heater
• Auxiliary Contacts: None
• Item: IEC Magnetic Contactor
