Eaton AE16DNS0AC Motor Starter Size D replacement AE16DNS0AC

Product Description

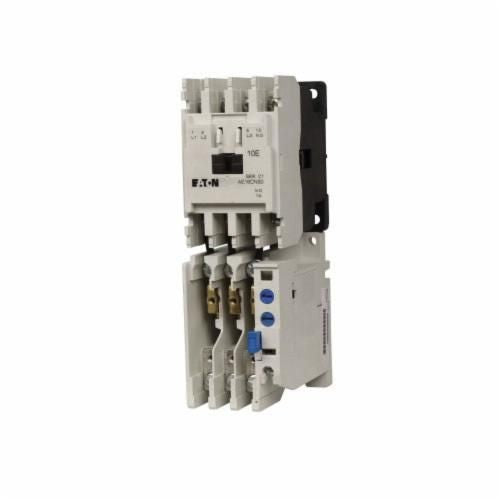

The EATON AE16DNS0AC is a 3 Pole starter with a current rating of 18 Amps and a voltage rating of 600VAC. It is designed for use with Freedom series motor control systems. Features a durable NEMA 1 enclosure, and non-reversing action. It has a coil volts of 110VAC at 50Hz, 120VAC at 60Hz.

• Side mounted auxiliary contact
• 10 hp at 380 VAC/50 Hz power rating
• Starter with C306 bi-metal OLR

Product Highlights

The EATON AE16DNS0AC is ideal for motor and power control equipment applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16DNS0AC
• Country of Origin: Dominican Republic

Technical Specifications

• Frequency Rating: 50/60 Hz
• Series: Freedom
• Size: Size D
• Type: Non-Reversing
• Voltage Rating: 600 VAC
• Application: For use with Freedom series motor control systems
• Standard & Approvals: UL File No. E1491, CSA Certified File No. LR353, EN60947-4-1, IEC 947-4-1, DIN VDE 0600, ISO 9000
• Enclosure Type: NEMA 1
• Brand: Eaton
• MPN: AE16DNS0AC
• Condition: New
• Country of Origin: Dominican Republic
• Amperage: 18
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• Approval: UL, CSA, IEC
• Connection Type: Screw
• Protection: Magnetic
• Nema Rating: 1
• For Use With: Freedom Series Motor Control Systems
• Upc: 782113971025
• UNSPSC: 39121521
• Coil Voltage: 120
• Overload Relay: C306 Bimetal
