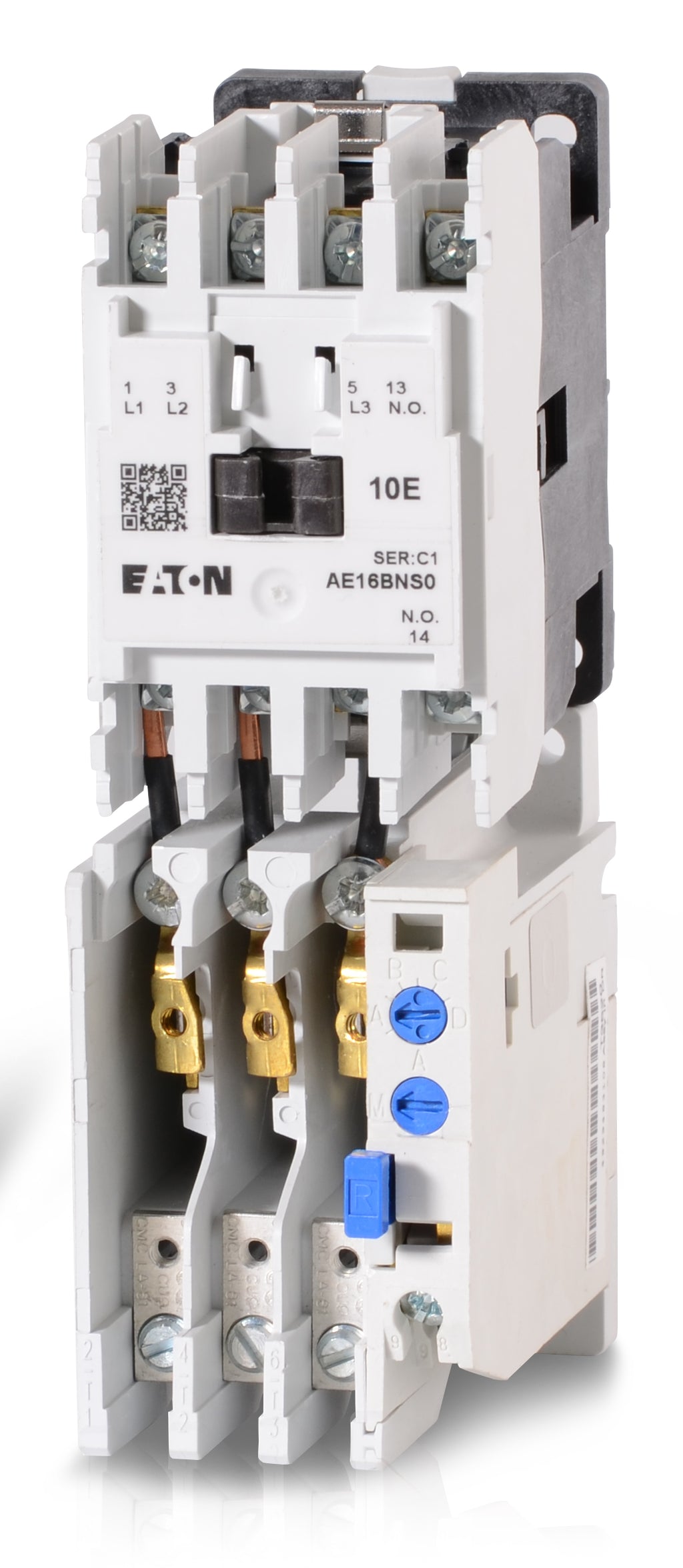

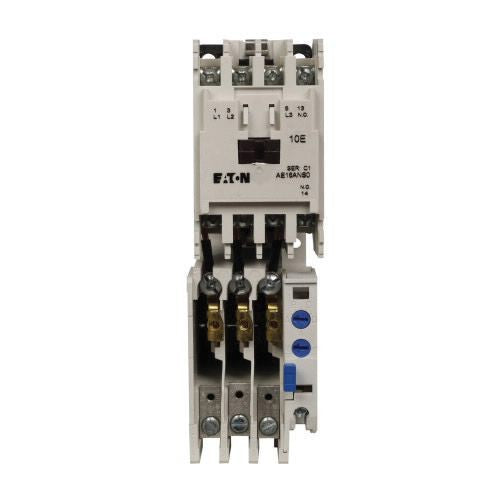

Eaton AE16BNS0AC Starter 10 A REPLACEMENT MPN

Product Description

The Eaton AE16BNS0AC is a 3 Pole starter with a current rating of 10 Amps and a voltage rating of 600VAC. It has a coil volts of 110VAC at 50Hz, 120VAC at 60Hz. The AE16BNS0AC has a surface mounting type and it is used for freedom series motor control systems.

• Side mounted auxiliary contact
• 5 hp at 380 VAC/50 Hz power rating

Product Highlights

The Eaton AE16BNS0AC starter is designed for use with Freedom series motor control systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16BNS0AC

Technical Specifications

• Brand: Eaton
• Series: Freedom
• Amperage: 10 A
• Voltage: 600 VAC
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• Approval: UL, CSA, EN, IEC
• Connection Type: Screw
• Protection: Magnetic
• For Use With: Freedom Series Motor Control Systems
• Standards: RoHS
• Mpn: AE16BNS0AC
• Upc: 782113970936
• Frequency Rating: 50/60 Hz
• Motor Power: 5 hp
• Number Of Poles: 3
• Coil Voltage: 110/120 VAC
• Enclosure Type: Open
• Overload Relay: Interchangeable Heater
• Size: Size B
• Type: Non-Reversing
• Voltage Rating: 600 VAC
• Standard & Approvals: UL File No. E1491, CSA Certified File No. LR353, EN60947-4-1, IEC 947-4-1, DIN VDE 0600, ISO 9000
• Catalog ID: C-HAE16BNS0AC
• Auxiliary Contact Rating: NO
• Application: For use with Freedom series motor control systems
