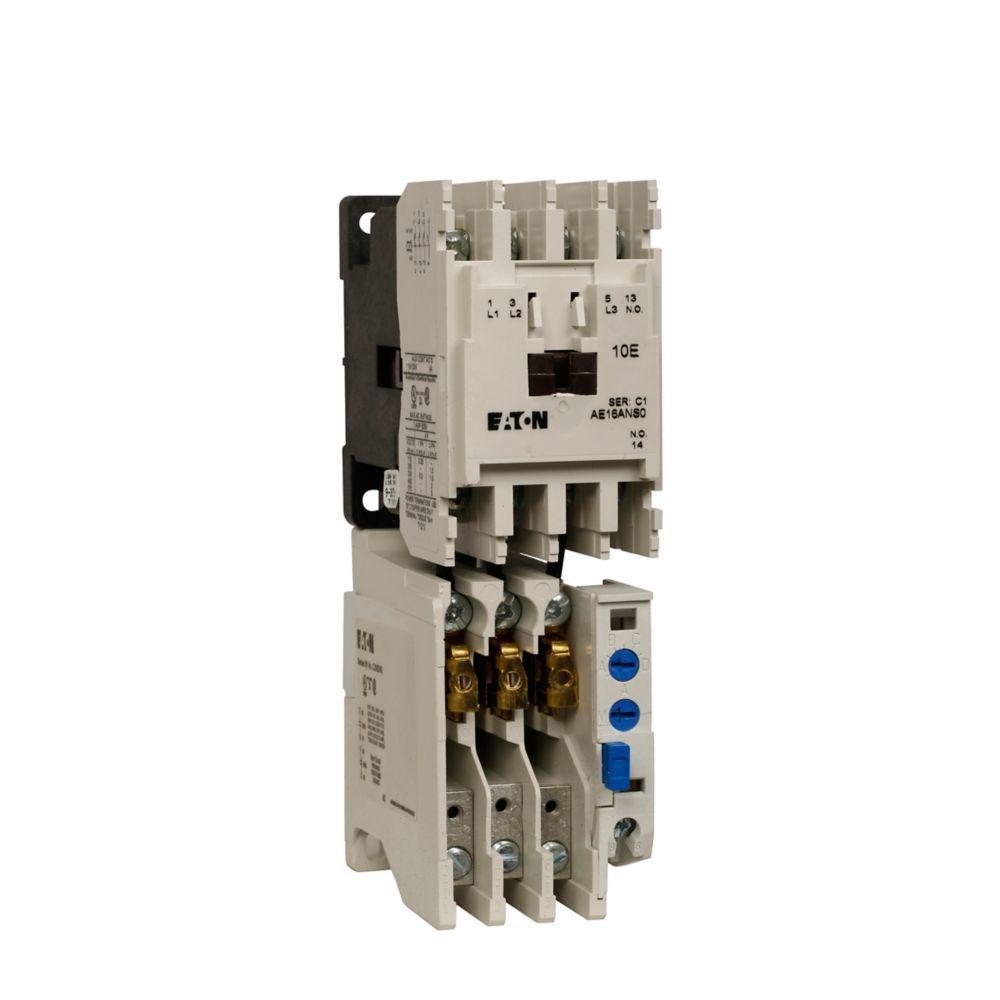

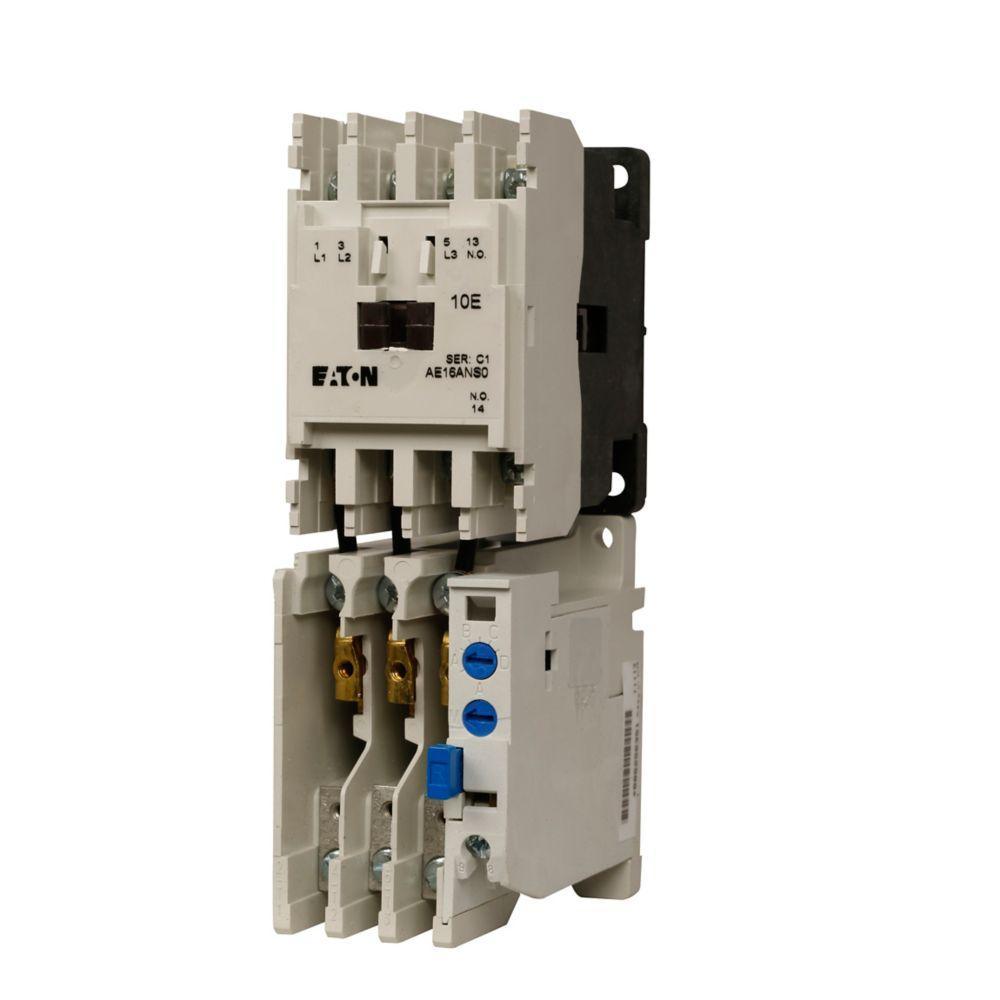

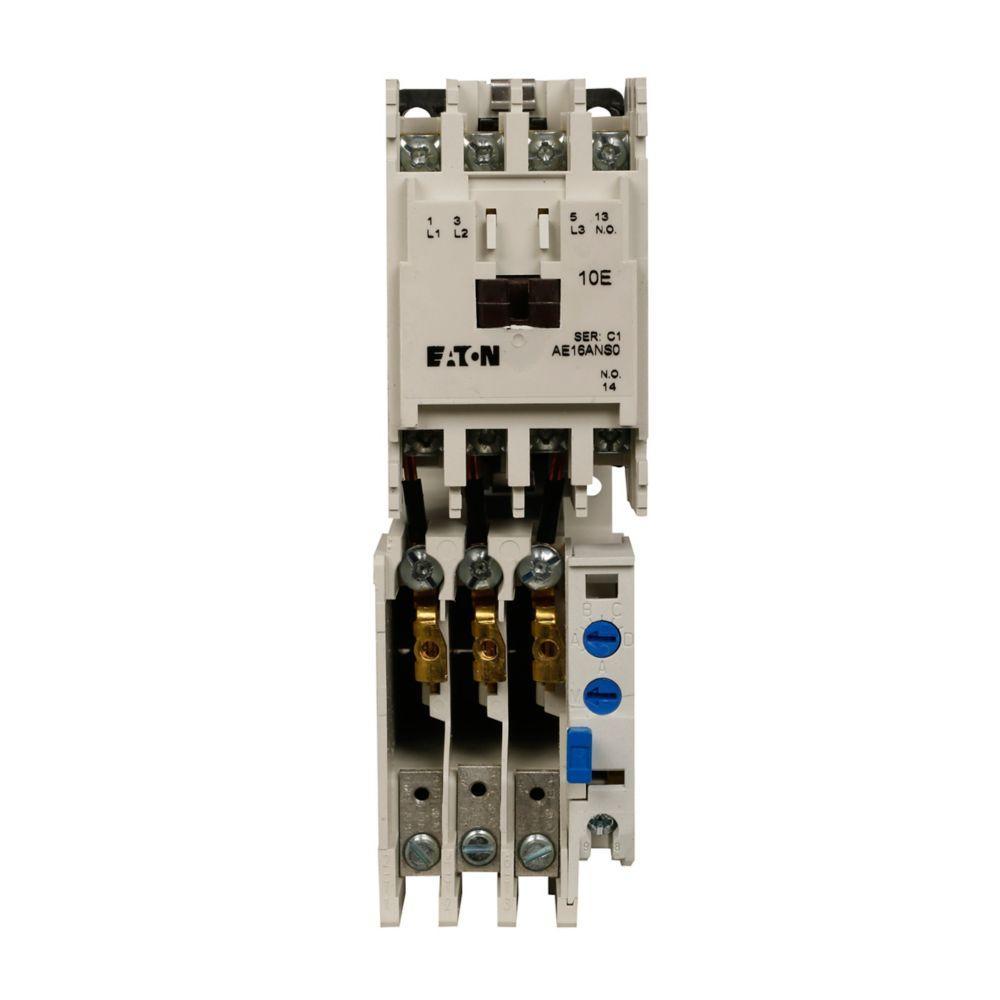

Eaton AE16ANS0TC Non-Reversing IEC Starter 24V

Product Description

The EATON AE16ANS0TC Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and feature a full line of snap-on accessories common to both IEC and NEMA devices.

• Designed to meet or exceed NEMA, UL, CSA, VDE, BS and other international standards and listings
• Horizontal or vertical mounting on upright panel for freedom application
• Screw type power terminals have captive, backed-out self-lifting pressure plates with +/- screws - reduced wiring time

Product Highlights

EATON IEC starter with a compact design, suitable for motor loads in applications where running over current protection is either not required or is provided separately.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16ANS0TC
• Country of Origin: US

Technical Specifications

• Amperage Rating: 9 A
• Frequency Rating: 50/60 Hz
• Type: Non-Reversing Starter
• Coil Voltage: 24V 60/50Hz
• Number of Poles: 3
• Enclosure Type: Open
• Product Name: Eaton XT IEC Electronic Motor Starter
• Catalog Number: AE16ANS0TC
• UPC: 782113970899
• Product Length/Depth: 8 in
• Product Height: 6 in
• Product Width: 4 in
• Product Type: Electronic motor starter
• Accessories: Electronic motor starter
• Item: Motor Starter
• Construction Standard: I.E.C. 600V AC
• Size: IEC Size A
• UL Cont. Amps: 7A
• Phase: 3
• Hp 1-Phase 115V: 0.25 Hp
• Hp 1-Phase 230V: 0.5 Hp
• Hp 3-Phase 200V: 1.5 Hp
• Hp 3-Phase 230V: 1.5 Hp
• Hp 3-Phase 460V: 3 Hp
• Hp 3-Phase 575V: 5 Hp
• Overload Relay: Interchangeable Heater
• Auxiliary Contacts: (1) NO Side Mounted
• Manufacturer Part Number: AE16ANS0TC
• Manufacturer: Eaton
• Product Series: Freedom
• Family Series: Eaton Starters, Freedom Series
• Description: Eaton Contactor, IEC OPEN 3P STR SZ A 24V COIL - FOR REPLACEMENT ONLY
• Style: Open
• Industry Standard: IEC
• Poles: 3
• Voltage: 24 VAC
• Nominal Voltage: 24 VAC
• General Purpose (AC1): 20 A
• Coil Type: Magnetic
• Mounting: Surface
• Approvals: CSA, UL
