EATON ACD222URNM Non-Fused Pullout AC Disconnect, 120/240 VAC, 60 Amp, 10 HP

Product Description

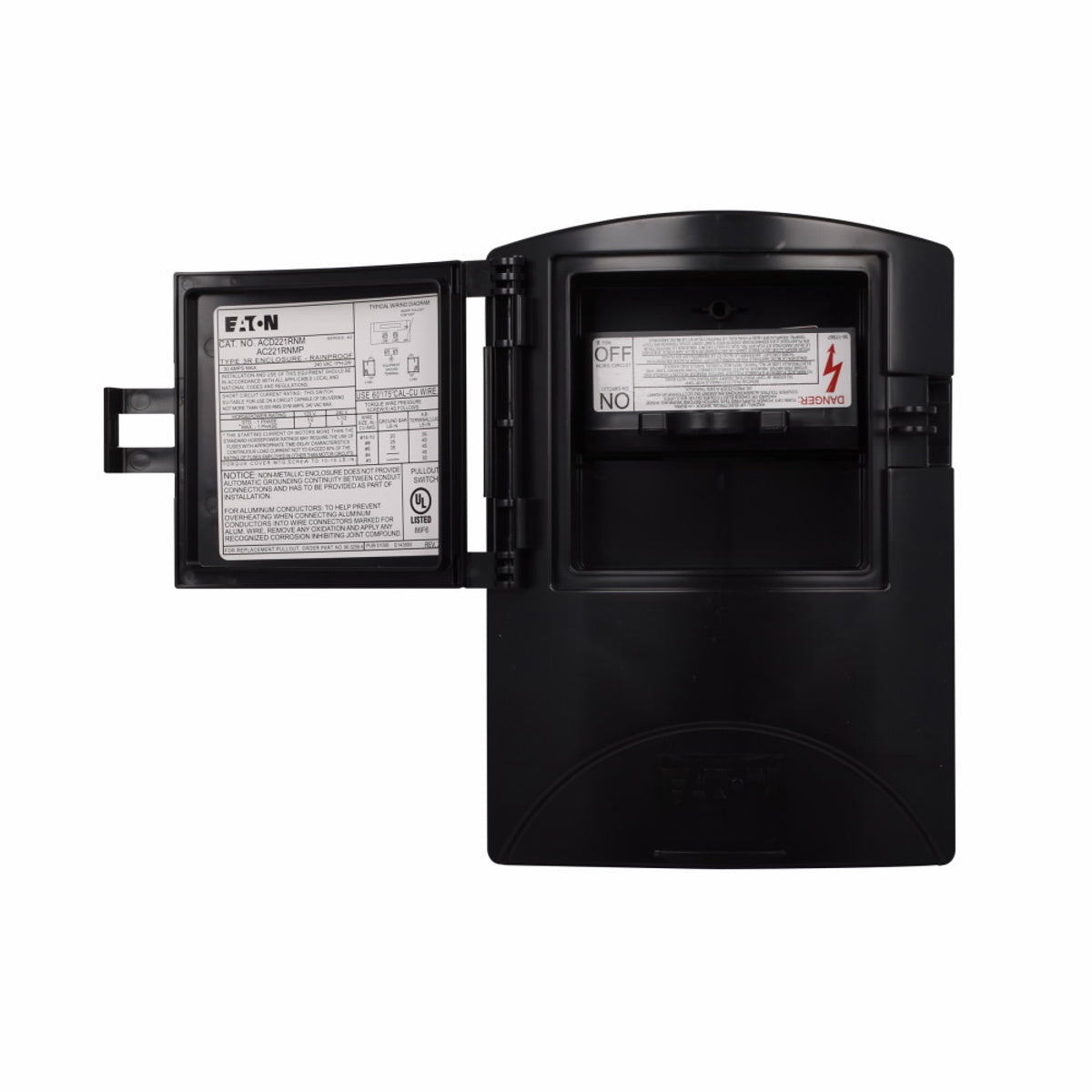

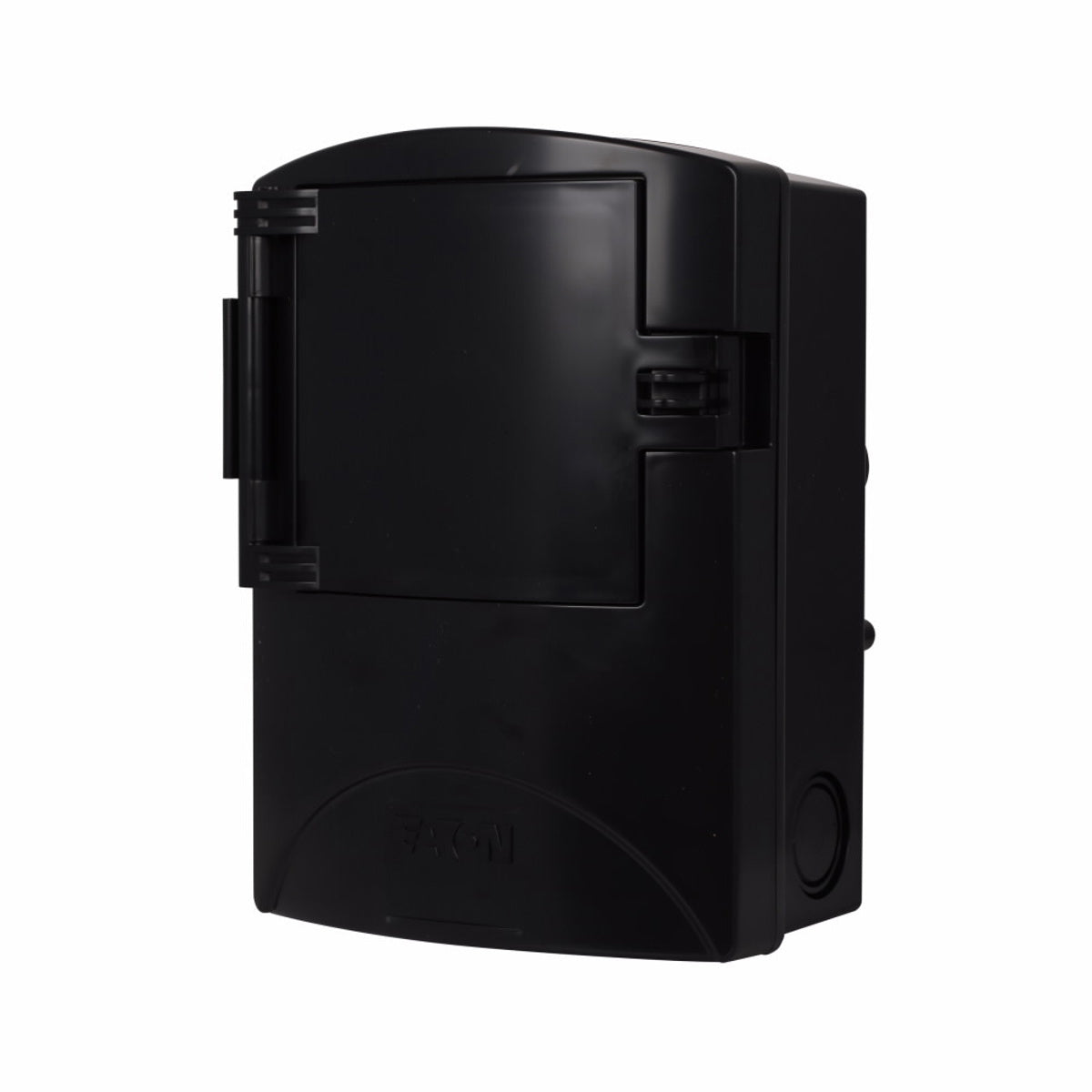

The EATON ACD222URNM is a non-fused pullout AC disconnect designed for 120/240 VAC systems. It has a rating of sixty amps and can handle up to ten horsepower at two hundred forty volts. This device is housed in a NEMA three R enclosure, suitable for outdoor use, and is built with polycarbonate material for durability.

• Rated for 60 Amps
• Handles up to 10 HP at 240 VAC
• Includes NEMA 3R enclosure for outdoor applications

Product Highlights

This disconnect allows technicians to safely disconnect power to HVAC units during maintenance and repairs, providing a visible means of isolation to enhance safety.

Product Information

Standard Information

• Catalog Number: ACD222URNM
• Manufacturer: EATON

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Horsepower Rating: Up to 10 HP
• Short Circuit Current Rating: 10 kA
• Temperature Rating: 60 to 75 deg C
• Dimensions: 5 in L x 3.5 in W x 8.63 in H
• Enclosure Type: NEMA 3R
• Material: Polycarbonate
