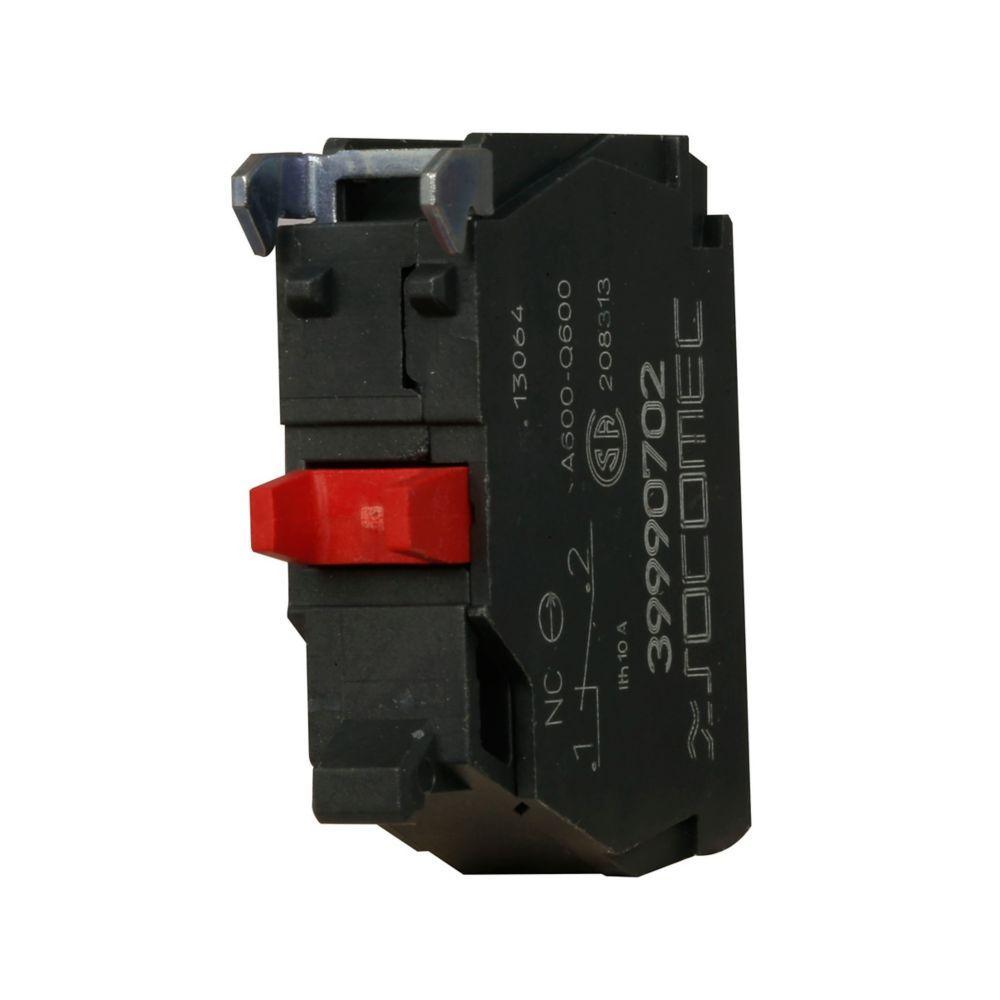

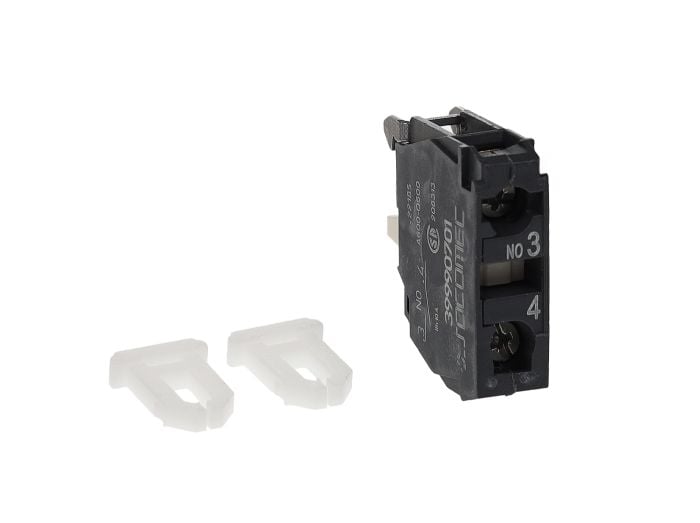

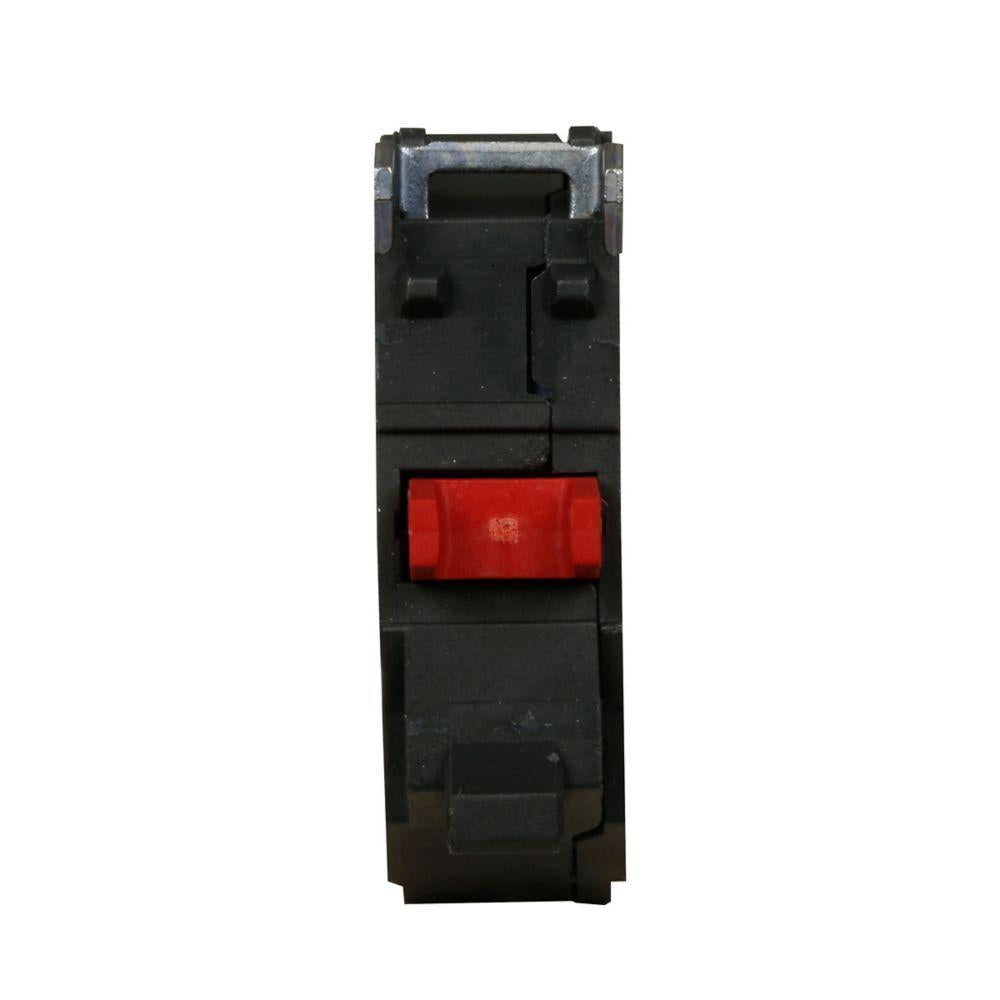

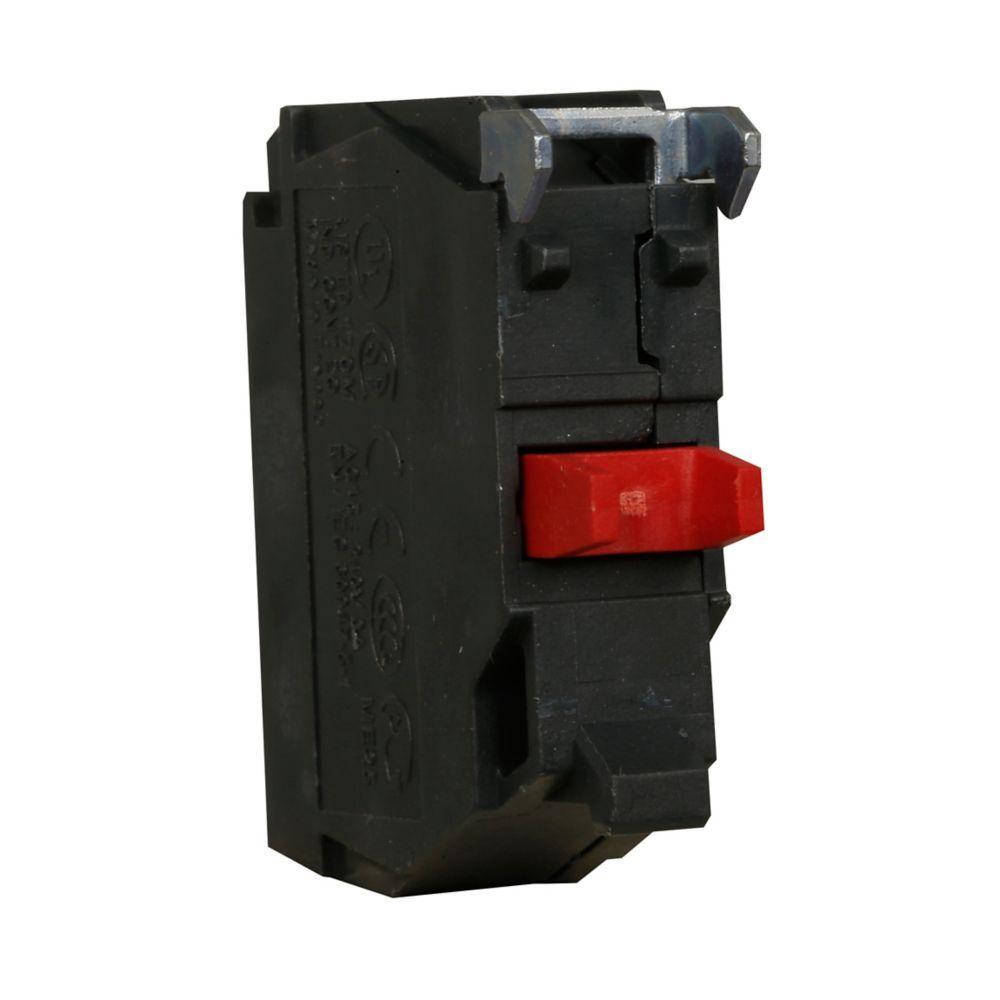

Eaton AC1NOR9 Auxiliary Contact 600 to 1200 A

Product Description

The Eaton AC1NOR9 is a standard auxiliary contact suitable for use with R9 Series F/G-Frame Rotary Disconnect Switches. Eaton's rotary disconnects offer a compact, economical, and high-quality choice for switching and isolation. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance.

• Early break/same make auxiliary contacts
• Requires use of ACHFG auxiliary contact holder for F and G-frame switches
• Auxiliary Contacts

Product Highlights

The Eaton AC1NOR9 auxiliary contact is rated for 600 V and 600 to 1200 A. It features 1NO contacts and is designed for use with R9 series disconnect switches.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AC1NOR9
• Country of Origin: France

Technical Specifications

• Suitable For Use With: R9 Series F/G-Frame Rotary Disconnect Switch
• Type: Standard
• Voltage Rating: 600 V
• Amperage Rating: 600-1200A
• Contacts: 1 NO
• Product Name: Eaton rotary disconnect auxiliary contact
• Catalog Number: AC1NOR9
• UPC: 786685404110
• Product Length/Depth: 2 in
• Product Height: 0.05 in
• Product Width: 2 in
• Product Type: Accessory
• AC type: Standard
• Contact configuration: 1 NO
• Series: R9
• Product Category: Auxiliary contacts
• Special features: Auxiliary Contacts
• Manufacturer: Eaton
• Accessory Type: Auxiliary Contact
• Max Voltage: 600 VAC/VDC
• Net Weight: 0.02 lbs
• Gross Weight: 0.03 lbs
• Country of Origin: France - Subject to change
• Kit Type: Disconnect Switch Auxiliary Contacts
• Switch Amps: 600A-1200A
• Voltage: 600V
• UL Rating: UL98 Open
• Accessories: Accessories
