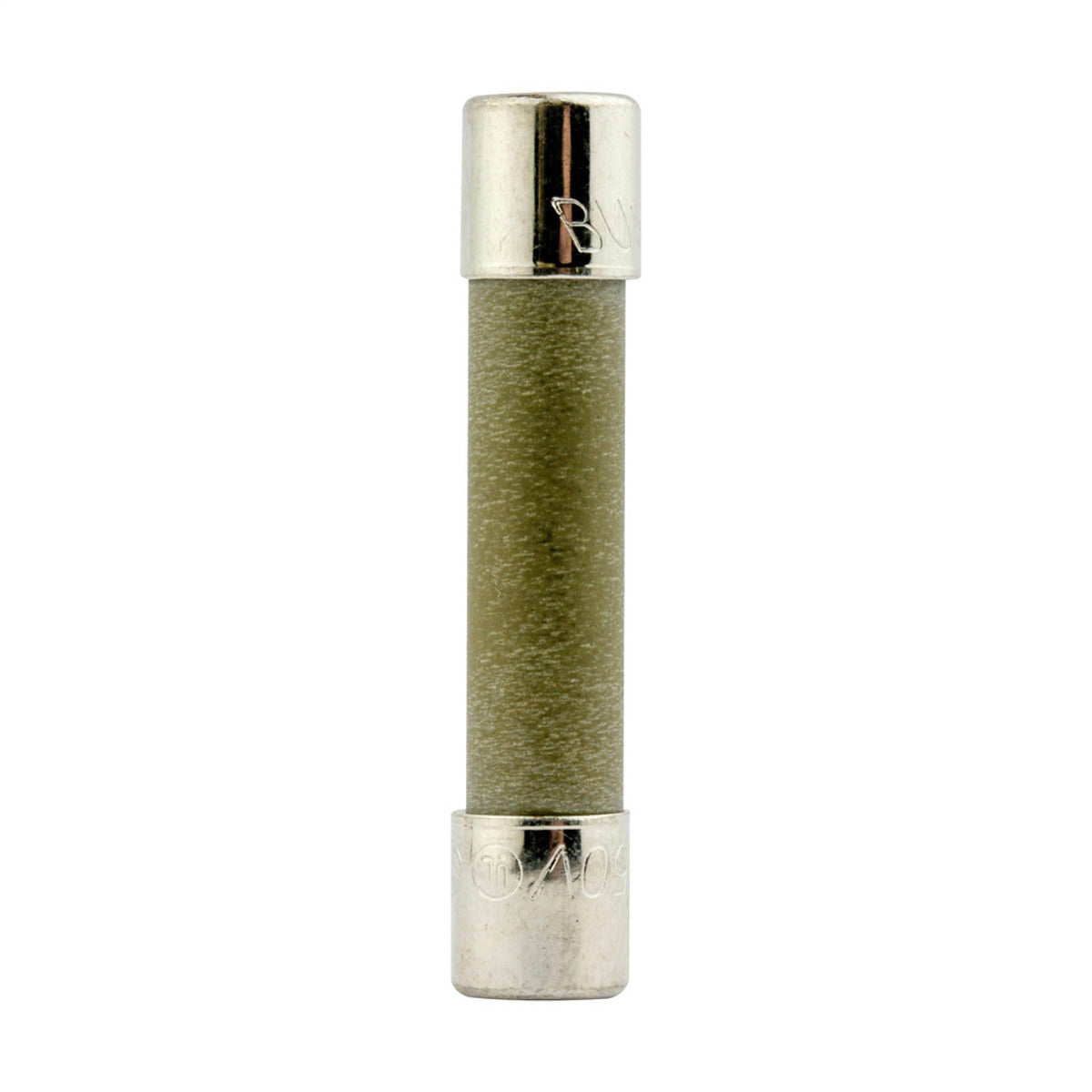

Eaton ABC-5-R Fast-acting Fuse 5A (Pack of 5)

EATON
Brand: EATON
SKU: ABC-5-R
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton ABC-5-R is a fast-acting fuse rated 5 A for overcurrent protection in electronic circuits. It is rated 250 VAC and 125 VDC with a self-certified 32 VAC note, and features a ceramic tube body with nickel-plated brass end caps and ferrule end-to-end connections. Typical electrical characteristics include low cold resistance and high interrupting capacity suitable for electronics, power conversion, and telecommunications applications.

  • Current rating: 5 A; voltage rating: 250 VAC and 125 VDC (32 VAC self certified)
  • Ceramic tube body, nickel-plated brass end caps, ferrule end connections; non-indicating
  • Interrupting rating: 200 A at 250 VAC; 10 kA at 125 VAC/DC; typical cold resistance 0.026 ohms

Product Highlights

Fast-acting 5 A ceramic fuse with high interrupting capacity and ferrule end terminations; pack quantity 5.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: ABC-5-R
  • Country of Origin: China
Technical Specifications
Brand
EATON
MPN
ABC-5-R
Series
ABC
Product Type
Fast-acting fuse
Current Rating
5 A
Voltage Rating (AC)
250 VAC
Voltage Rating (DC)
125 VDC
Additional Voltage Note
32 VAC (self certified)
Interrupting Rating
200 A at 250 VAC; 10 kA at 125 VAC/DC
Body Material
Ceramic tube
End Cap Material
Nickel-plated brass
Terminal Type
Ferrule (ferrule end x ferrule end)
Fuse Indicator
Non-indicating
Body Style
Cylindrical
Dimensions
Length 1.25 in; Diameter 0.25 in
Weight
2.05 g
Resistance (cold, DC)
0.026 ohms
Voltage Drop (typical)
0.22 mV
I2T (Typical pre-arc)
32.83
Response Time
Continuous 4 hr at 100%; 60 min at 135%; 120 sec at 200%
Approvals/Compliance
UL, CSA, IEC, CE, RoHS Compliant
Application
Electronic circuits; motor protection; power conversion; telecommunications; distribution
Pack Quantity
5
UPC
51712646284
