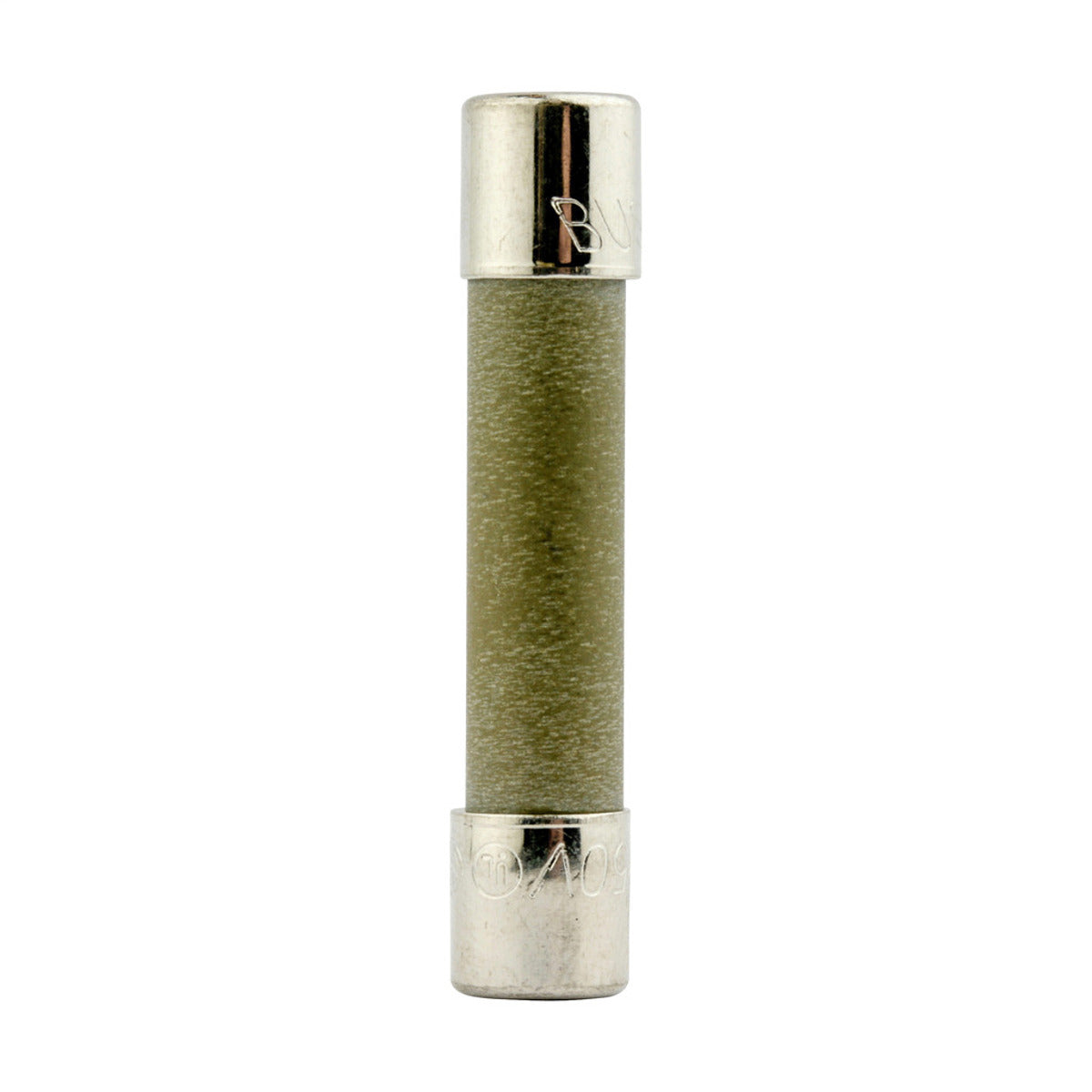

Eaton ABC-15-R ABC Series Fast-Acting Fuse 15 A (Pack 1)

Product Description

The EATON ABC-15-R is an ABC series fast-acting fuse rated 15 A with voltage ratings of 250 Vac, 125 Vdc and a self-certified 32 Vac for rapid overcurrent protection in electronic circuits. It uses a ceramic tube construction with ferrule end connections and nickel-plated brass end caps, and provides high interrupting capacity suitable for power distribution, power conversion, telecommunications, and industrial applications.

• 15 A fast-acting fuse with voltage ratings: 250 Vac, 125 Vdc, 32 Vac (self certified)
• Ceramic tube construction, ferrule end-to-end connections and nickel-plated brass end caps
• High interrupting capacity (10 kA at 125 V AC/DC; 750 A at 250 V AC) and agency approvals including UL, CSA, and CE

Product Highlights

Fast-acting 15 A ceramic fuse for electronic circuit protection with ferrule terminations, high interrupting rating, and multiple agency approvals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ABC-15-R
• Country of Origin: China

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: ABC-15-R
• Series: ABC series
• Product Type: Fast-acting fuse
• Current Rating: 15 A
• Voltage Rating: 250 V AC; 125 V DC; 32 V AC (self certified)
• Interrupting Rating: 10 kA at 125 V AC/DC; 750 A at 250 V AC
• Body Material: Ceramic tube
• End Cap Material: Nickel-plated brass
• Termination/Connection: Ferrule end x ferrule end
• Body Style: Cylindrical
• Construction: Non-indicating
• Diameter: 6.4 mm (0.25 in)
• Length: 32 mm (1.25 in)
• Product Weight: 2.5 g
• Cold Resistance (DC): 0.00553 ohms
• Voltage Drop (typical): 0.1 mV
• Pre-arc Melting (I2T, typical): 200.2
• Response Time: 4 hr at 100%; 60 min at 135%; 120 sec at 200%
• Approvals/Standards: UL 248-14; UL; CSA; CE; IEC; RoHS Compliant
• Country of Origin: CHN
• Package Quantity: 1
• UPC: 51712646192
