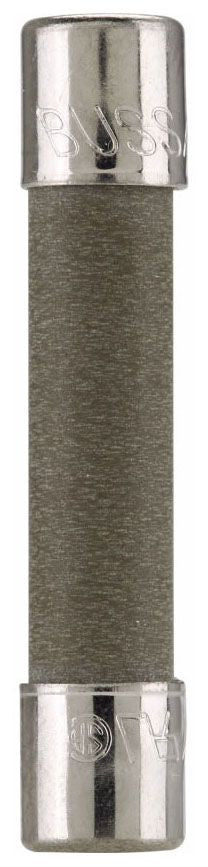

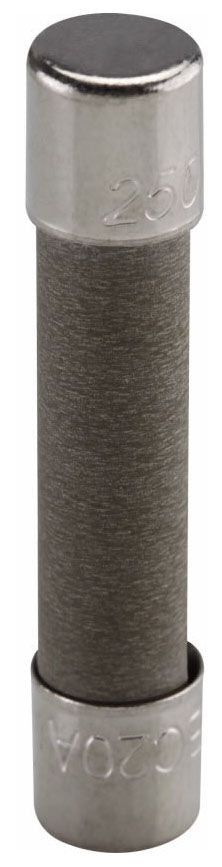

Eaton ABC-1-R BUSS Small Dim Fuse 250V Replacement Fuse

Product Description

The Eaton ABC-1-R is a fast-acting fuse designed for various electronic applications. It features a ceramic tube and is rated for voltage up to 250 volts AC and 125 volts DC. This fuse is suitable for protecting electronic circuits and has a current rating of 1 amp.

• Fast acting fuse with a voltage rating of 250V AC
• Interrupting ratings of 35 amps at 250 volts AC
• Non-indicating for electronic circuit protection

Product Highlights

The Eaton ABC-1-R fuse is designed for critical electronic applications ensuring reliability and safety in circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Country Of Origin: China

Technical Specifications

• MPN: ABC-1-R
• Voltage Rating: 250V AC, 125V DC
• Current Rating: 1 Amp
• Length: 1.25 inches
• Ferrule Diameter: 0.25 inches
• Interrupting Rating: 35 Amp at 250 Volt AC
• Approval: UL 248-14, CSA, CE
• End Cap Material: Nickel Plated Brass
• Response Time: 60 seconds at 135 percent, 120 seconds at 200 percent current
