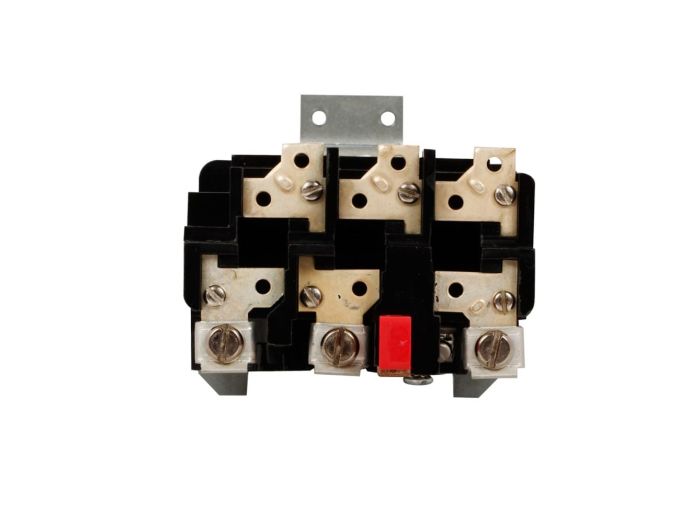

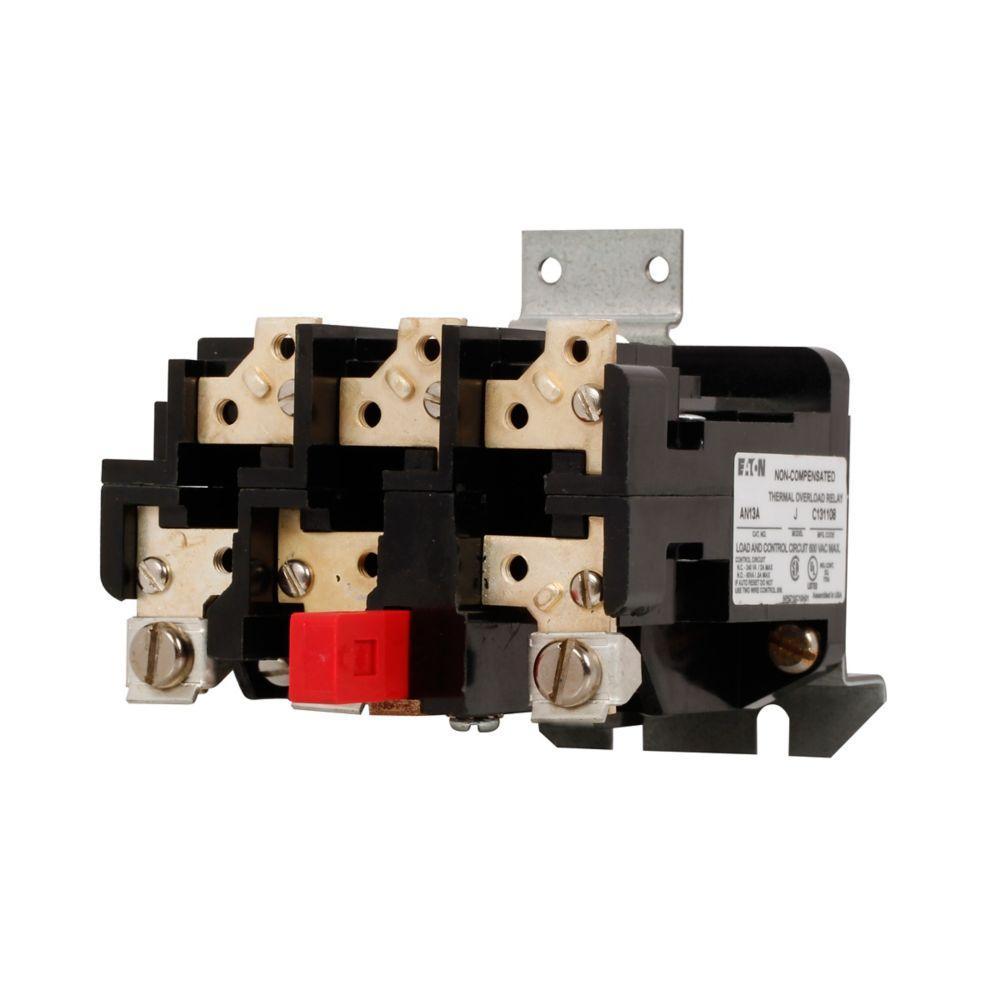

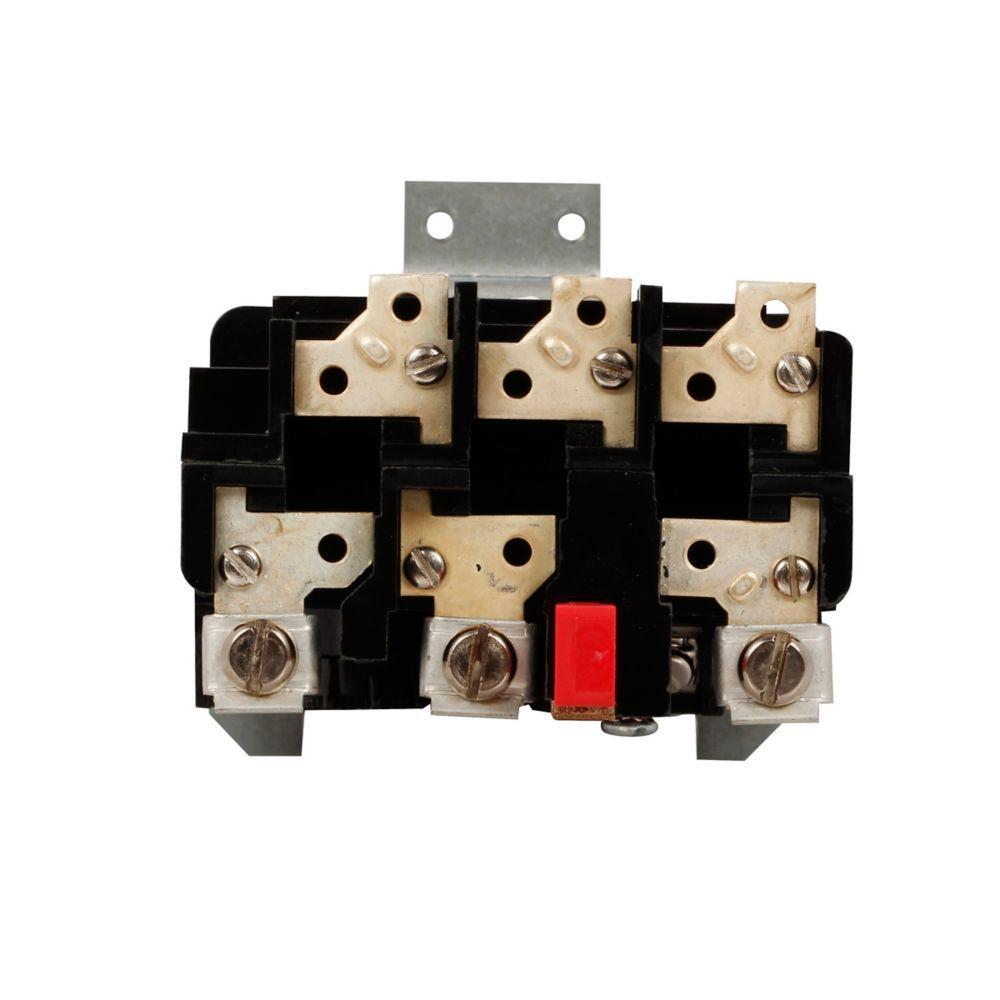

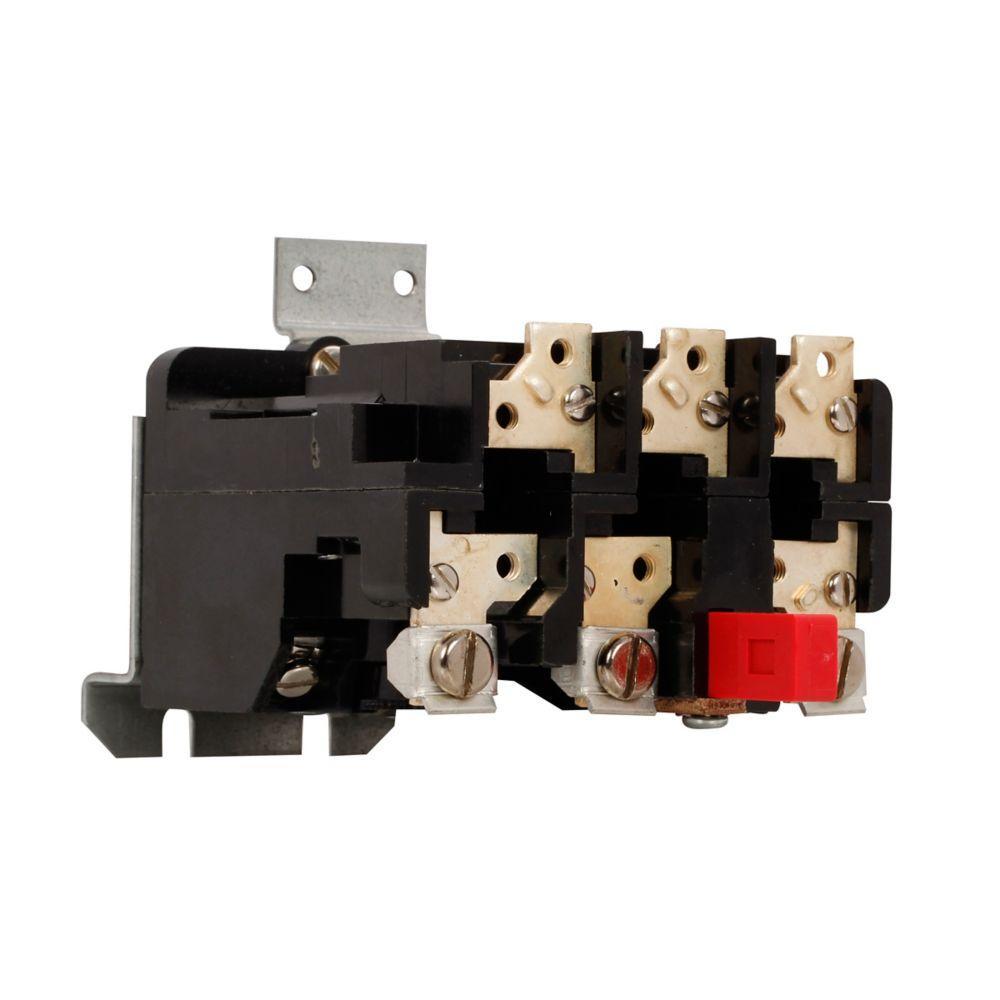

Eaton AA13AB A200 Type A Class 20 Thermal Overload Relay, 0.25/26.2 A, 1NC Contact

Product Description

The Eaton AA13AB type A overload relay is designed to protect industrial motors against overload conditions. This thermal overload relay uses a bi-metallic design, providing class 20 operation in either 1 or 3-phase applications. It features a 1NC contact form and a full load range of 0.25-26.2A.

• Heaters required
• Inverse time delay trip
• Adjustable trip rating +/-15%

Product Highlights

Protects industrial motors against overload conditions with class 20 operation. Features adjustable trip rating and field selectable manual/auto-reset.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AA13AB
• Country of Origin: US

Technical Specifications

• Mounting Type: Panel/Starter
• Number of Poles: 3
• Series: A200
• Terminal Type: Threaded
• Type: Type A Class 20
• Amperage Rating: 0.25/26.2 A
• Contact Form: 1NC
• Certifications: UL Listed CSA Certified
• Product Type: Overload relay
• Design: NEMA
• Trip Type: Thermal Type A, Class 20
• Current Rating: 0.25-26.2 A
• Poles: 3
• Output Contacts: 1NC
• Trip Class: Class 20
• Reset Type: Automatic, Manual
• Connection Type: Screw Terminals
• Relay Poles: Three Pole
• Relay Throws: Single Throw Normally Closed
• Manufacturer: Eaton
• Component: Overload Relay
• Relay Mounting: Starter
• Enclosure Type: NEMA 5
