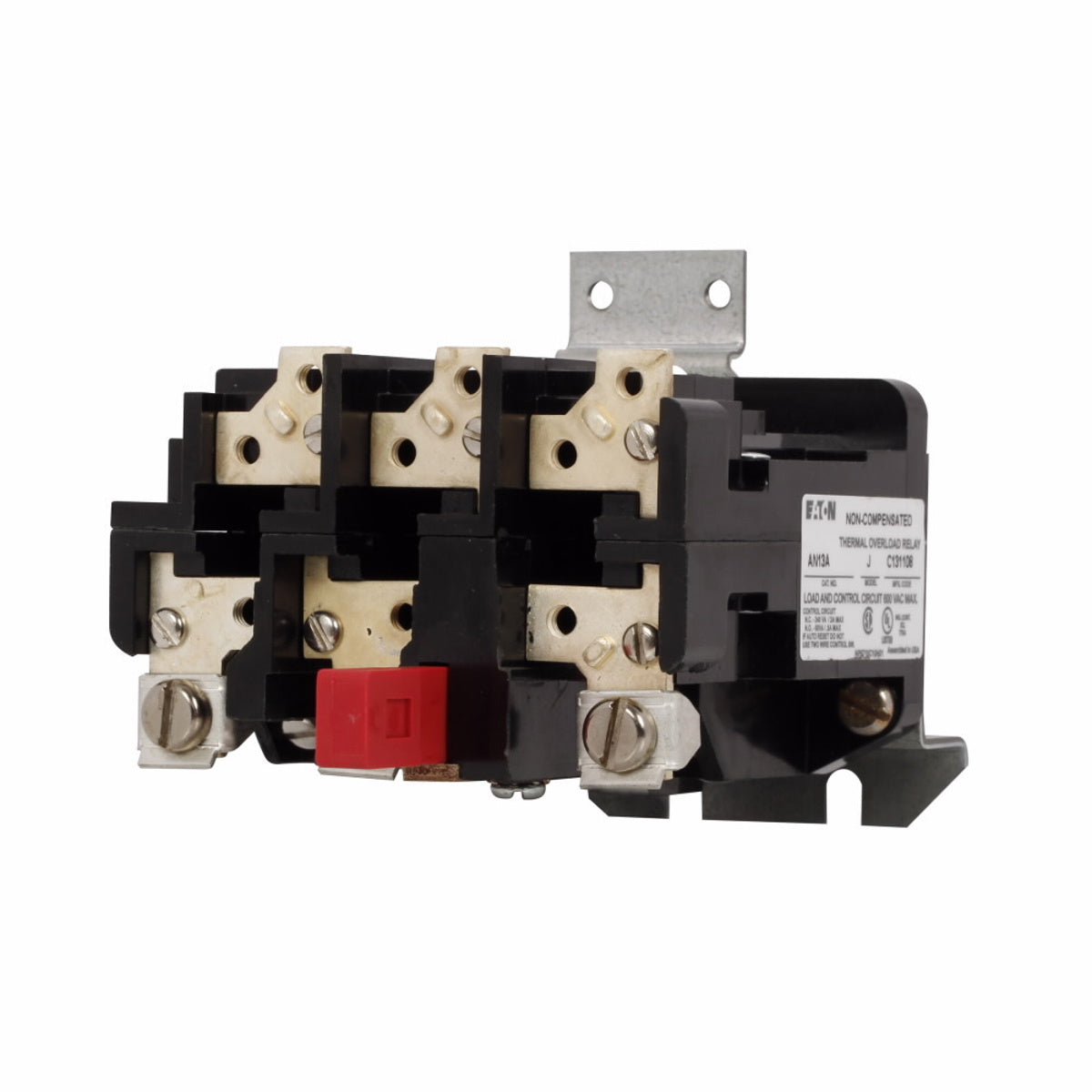

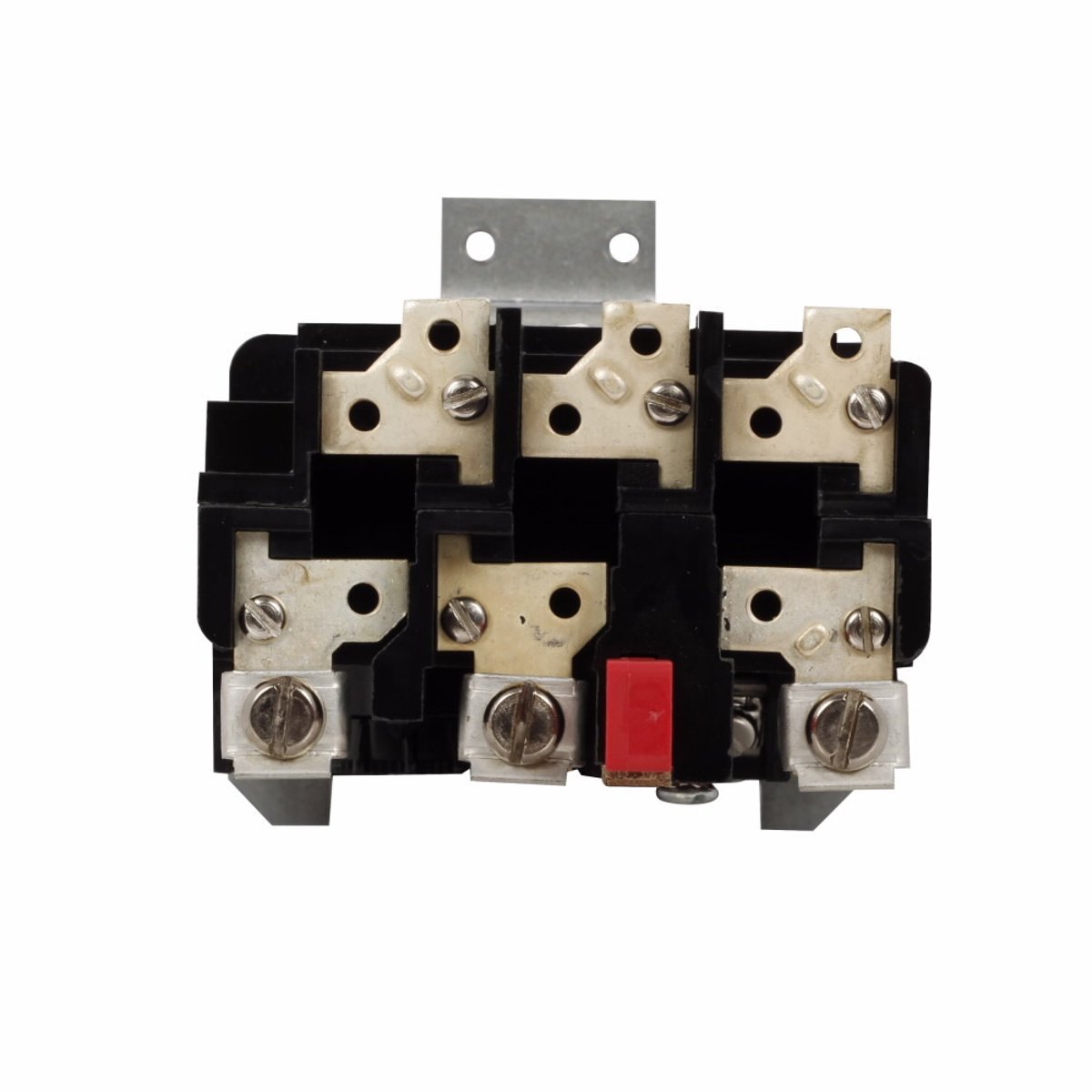

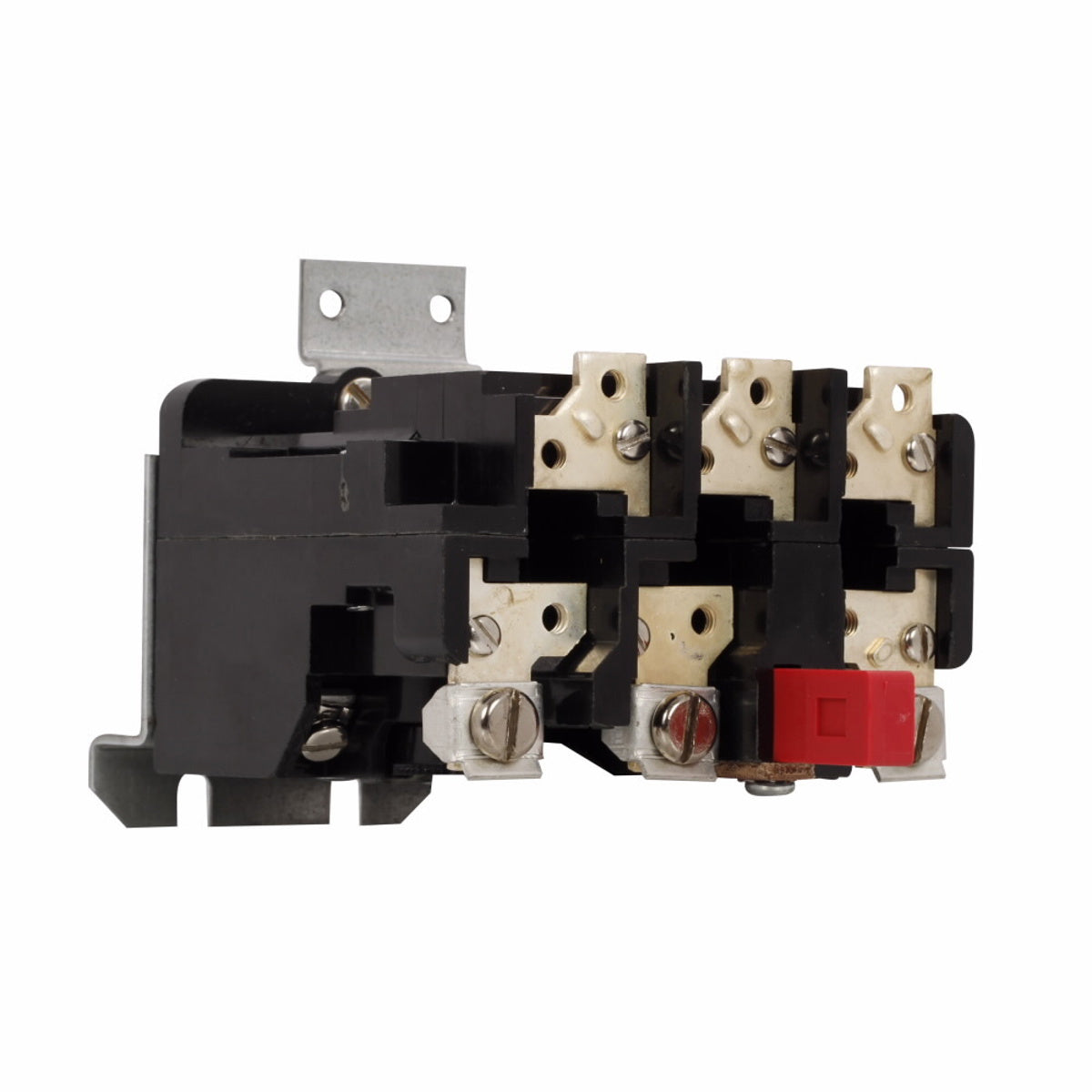

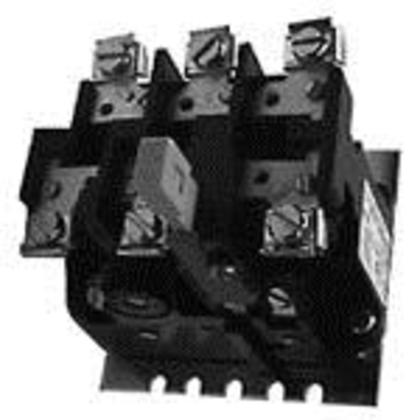

Eaton AA13A Freedom NEMA overload relay, 0.25 to 26.2 A

Product Description

The Eaton AA13A Freedom NEMA overload relay is designed to protect industrial motors against overload conditions. This thermal overload relay features a bi-metallic design, providing class 20 operation in 1 or 3-phase applications. It has a full load range of 0.25 to 26.2A and is ambient compensated.

• Field selectable manual/auto-reset
• Inverse time delay trip
• Adjustable trip rating +/-15%

Product Highlights

Protects industrial motors against overload conditions with a bi-metallic design and class 20 operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AA13A
• Country of Origin: United States

Technical Specifications

• Catalog Number: AA13A
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Application: Ind Facilities & Factories - Facility - Other
• Standard: CSA Certified,UL Listed
• UPC: 786678223919
• GTIN: 00786678223919
• Item Type: Overload relay
• Mounting Type: Panel
• Number of Poles: 3
• Series: A200
• Terminal Type: Threaded
• Type: Type A Class 20
• Amperage Rating: 0.25 to 26.2 A
• Contact Form: 1NC
• Contact Current Rating: 13 A
• Current Rating: 13 A
