Product Description

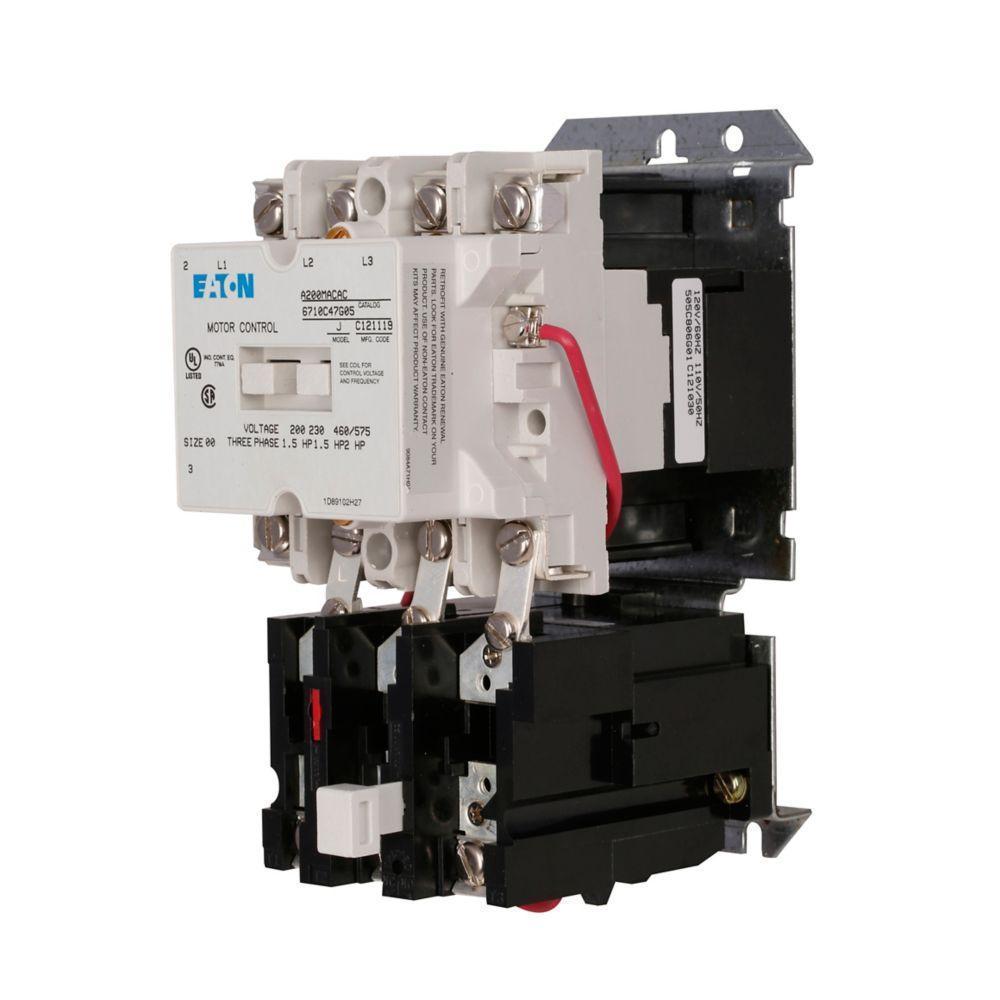

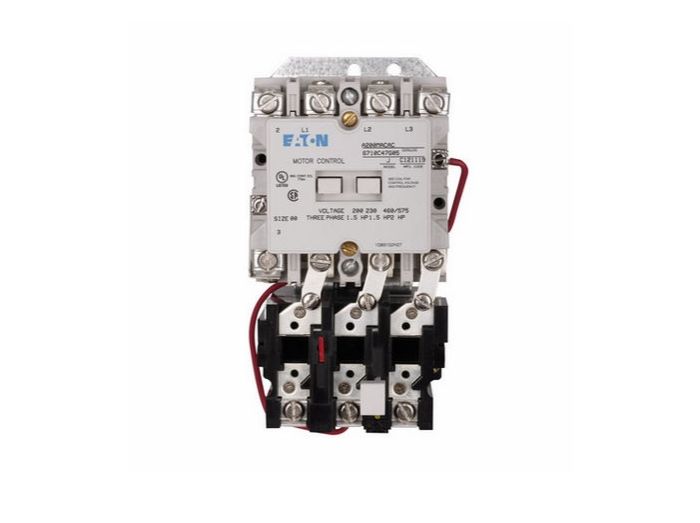

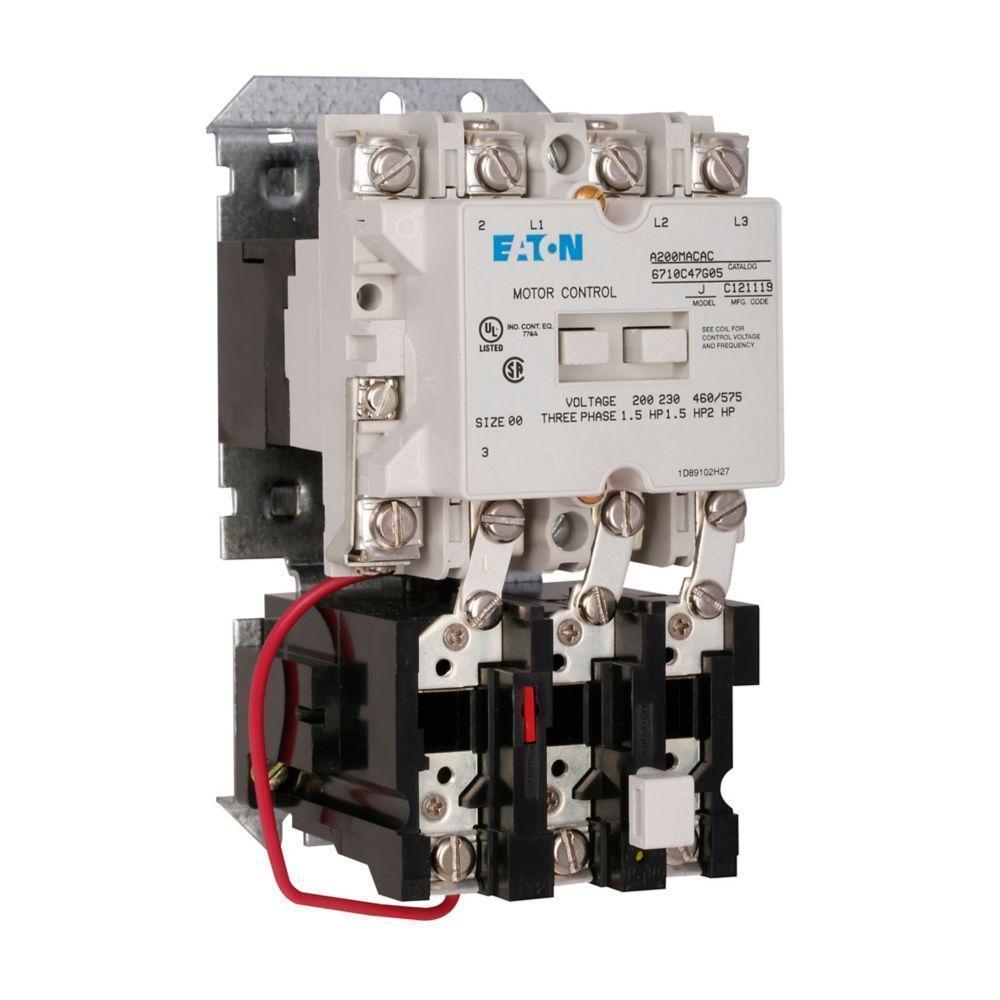

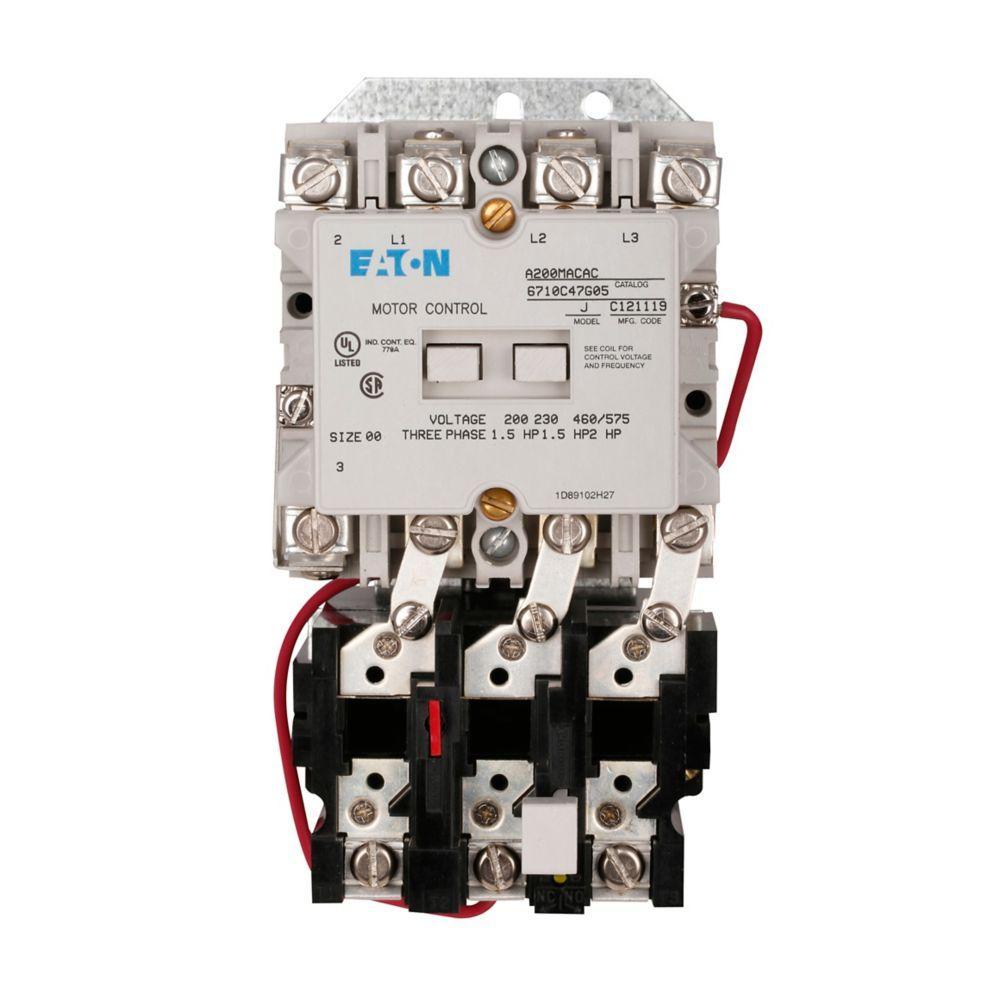

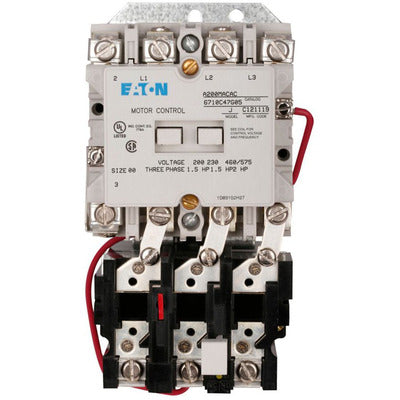

The EATON A200MACB is a Class A200 non-reversing starter that utilizes a Type B three-pole overload relay, with optional Type A for auto reset applications. Moving and stationary contacts are front accessible for easy maintenance. It is UL listed, CSA certified and suitable for use with stationary machinery and equipment.
- Straight through wiring for ease of installation
- Accessory mounting cavities reduce panel space requirements
- Ambient compensated overload relays offer superior motor protection
Product Highlights
This magnetic non-reversing starter features screw connections, a bi-metal overload relay, and 1NO-1NC auxiliary contacts. It operates at 60 Hz and is designed for a 200/208 VAC coil.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: A200MACB
-
Country of Origin: US
Technical Specifications
-
Amperage Rating: 9 A
-
Auxiliary Contact Rating: 1NO-1NC
-
Connection Type: Screw
-
Frequency Rating: 60 Hz
-
Motor Power: 2 hp
-
Operating Temperature: -4 to 140 deg F
-
Overload Relay: Bi-Metal
-
Series: A200
-
Voltage Rating: 600 VAC
-
Type: Magnetic Non-Reversing
-
Coil Voltage: 200/208 VAC
-
Number of Poles: 3
-
Enclosure Type: NEMA 0
-
Max HP Rating: 1/3 hp at 115V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
-
Size: 0
-
Phase: 3
-
Product Length/Depth: 4.61 in
-
Product Height: 3.31 in
-
Product Width: 4.38 in
-
Certifications: UL Listed CSA Certified
-
Catalog Notes: For ambient compensated overload relay with auto-reset, add Suffix D.
-
Product Type: Motor control
-
Product Series: A200
-
Style: Open
-
Industry Standard: NEMA
-
Termination: Screw
-
NEMA Frame Size: 0
-
Mounting: Surface
-
Construction Standard: NEMA 600V AC
-
UL Cont. Amps: 9A
-
Hp 1-Phase 115V: 0.33 Hp
-
Hp 3-Phase 200V: 1.5 Hp
-
Hp 3-Phase 230V: 1.5 Hp
-
Hp 3-Phase 460V: 2 Hp
-
Hp 3-Phase 575V: 2 Hp
-
Overload Relay Type: Interchangeable Heater
-
Motor FLA: Refer to Heater
-
Auxiliary Contacts: (1) NO
-
Alternate Mfr Part Number: A200MACB
-
Brand: Eaton - Cutler Hammer
-
UNSPSC: 39121521
-
Application: Stationary Machinery, Equipment Outside Factory and Other Applications
-
Overload Series: Type B
