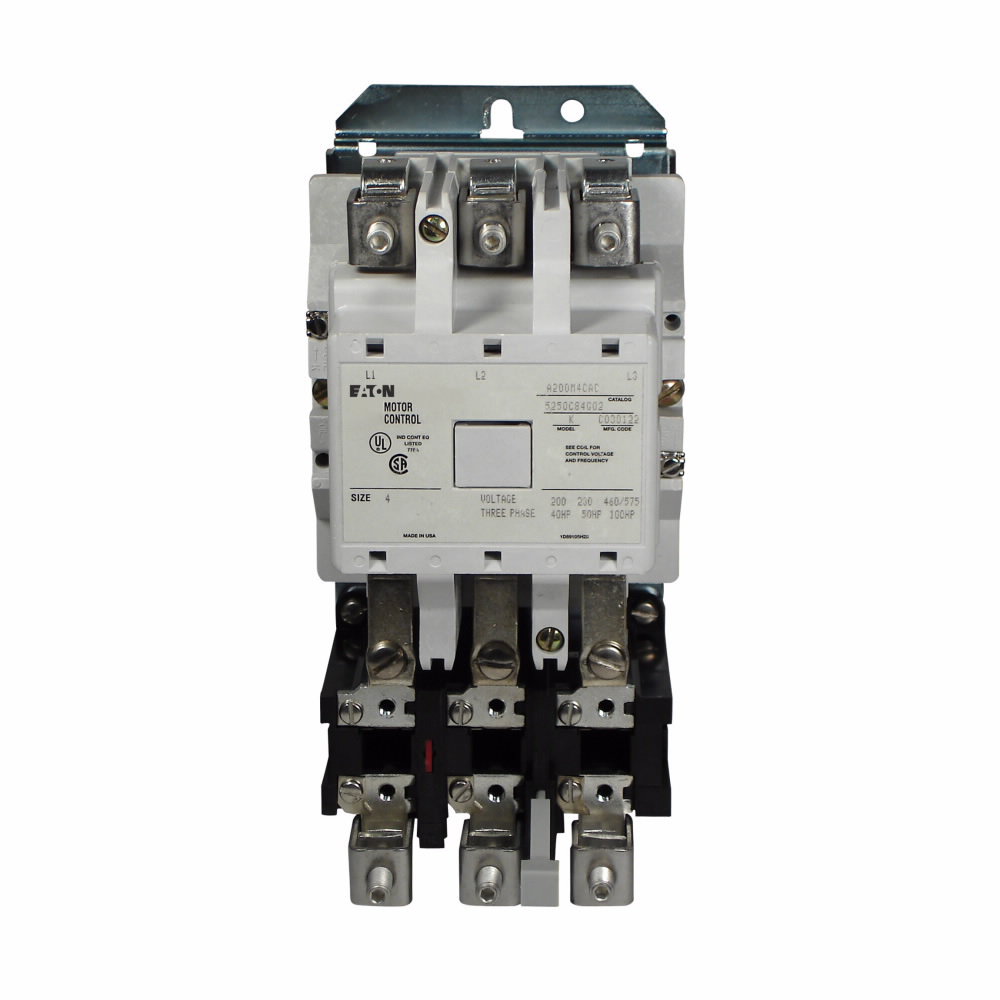

Eaton A200M4CB ETN A200M4CB A 200M4CB Motor Control Starter Non-Reversing Starter 200-208V/60 Hz Coil Voltage 135A

Product Description

The Eaton A200M4CB is a non-reversing motor control starter designed for reliable operation in industrial settings. With a coil voltage of 200-208V at 60 Hz and a current rating of 135A, this starter is ideal for various stationary machinery applications. It operates with three poles and is classified as size four, capable of running motors with up to 100 horsepower at 480V or 600V. The A200 series is known for its robustness and ease of maintenance.

• Non-reversing starter for reliable motor control
• Compatible with various voltage ratings, including 40 hp at 208V and 50 hp at 240V
• Front-accessible contacts for simple maintenance

Product Highlights

The Eaton A200M4CB meets industry standards and is UL recognized, ensuring safe and efficient operation in motor control applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: A200M4CB
• Weight: 9.3 lb
• Height: 4.63 inches
• Length: 6.75 inches
• Amperage: 135 Amp
• Horsepower: 100 hp
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Country of Origin: Dominican Republic
• Standards: CSA Certified, UL Listed
