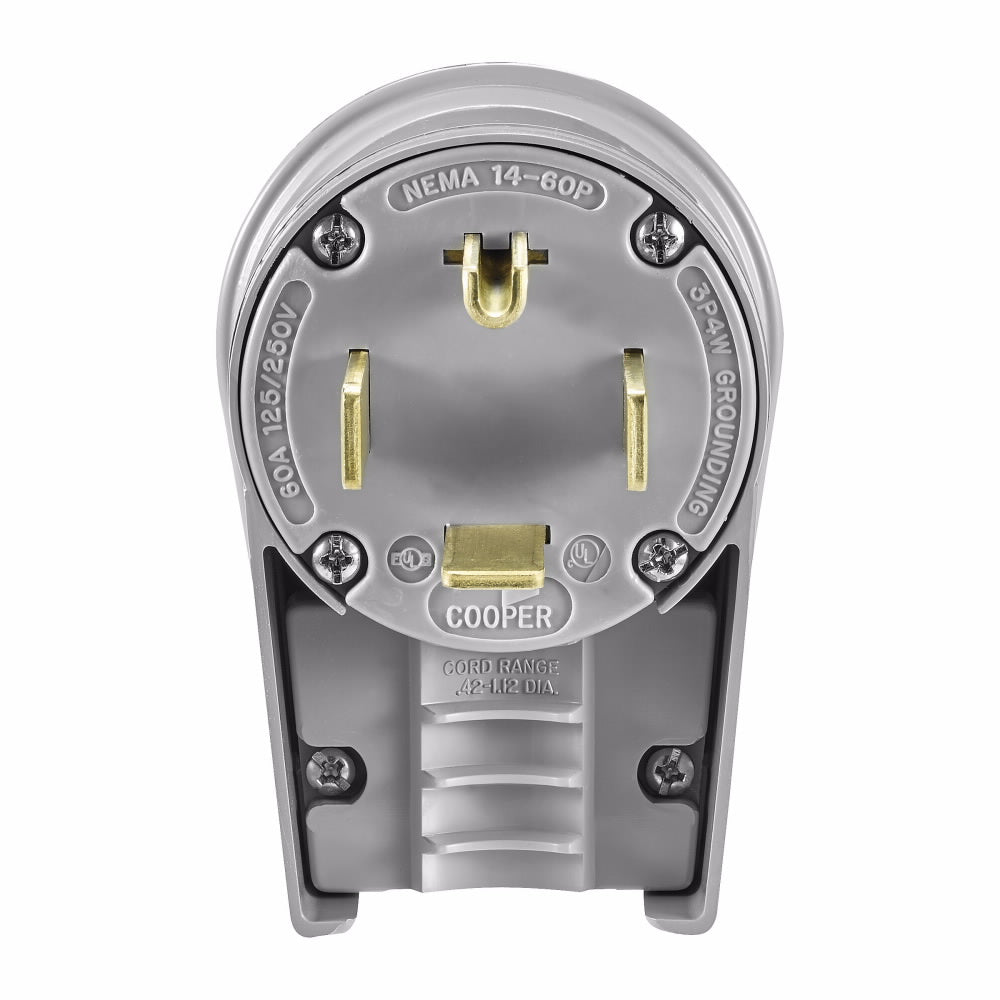

Eaton 9462AN CWD 3P 4W 60A 125/250V PLUG

Product Description

Eaton 9462AN is a straight blade plug designed for commercial and industrial uses. It supports 125/250 VAC and can handle current up to 60 A. This plug features three poles and four wires, complying with the NEMA 14-60P standard.

• Rugged thermoplastic construction for durability
• Compatibility with cord sizes ranging from 0.56 inches to 1.31 inches
• Temperature rating from -40 degrees Celsius to 75 degrees Celsius

Product Highlights

The Eaton 9462AN is ideal for high amperage applications, ensuring safe and reliable electrical connectivity in industrial settings.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: 9462AN

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 125/250 VAC
• Color: Gray
• Material: Thermoplastic
• Dimensions: 4.3 inches H x 3 inches W
• NEMA Rating: NEMA 14-60P
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 0.56 to 1.31 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Standards/Approvals: cULus Listed, Federal Specification 6221 02, UL Listed
• Terminal Type: Threaded
• Grade: Commercial/Industrial
