Eaton 93935-BOX cwd wallplate 2g decorator mid ss

Product Description

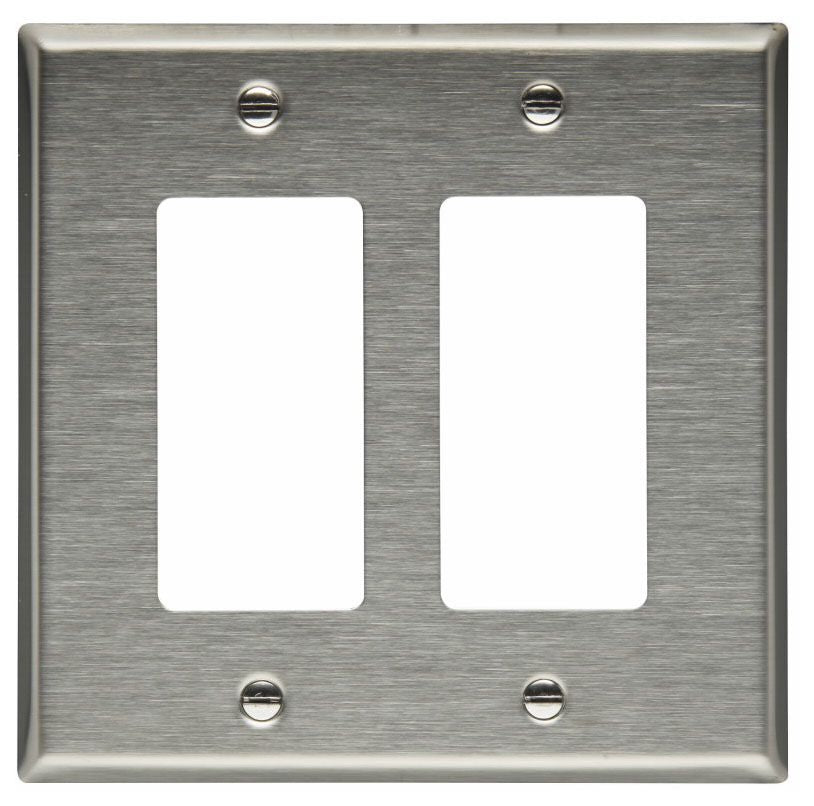

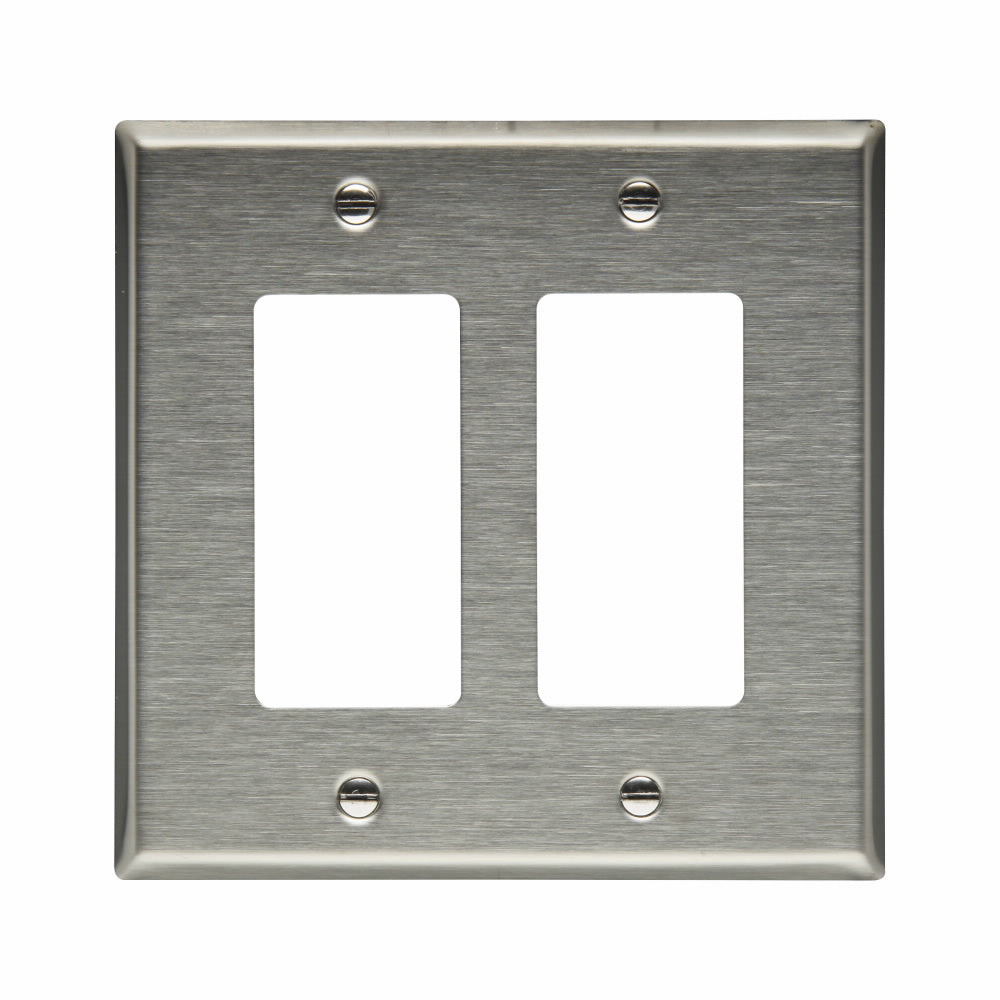

The EATON 93935-BOX Arrow Hart™ decorator wallplate is mid-sized with two gangs. Constructed from 302/304 stainless steel with a stamped construction and high gloss finish. It features two 2.64 in H x 1.31 in W decorator cutouts and is designed for surface mounting in commercial, industrial, and institutional applications.

• Constructed from durable 302/304 stainless steel.
• Features a removable protective film.
• Temperature rating of -40 to 158 deg F.

Product Highlights

This EATON decorator wallplate offers durability and a clean finish for various applications. Mounting screws are included for easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 93935-BOX
• Country of Origin: CHN

Technical Specifications

• Manufacturer Part Number: 93935-BOX
• Series: 93000
• Size: 4.87 in H x 4.94 in W
• Application: Commercial, Industrial, Non-Residential and Institutional Applications
• Construction: Stamped
• Cutout: 2.64 in H x 1.31 in W Decorator
• Material: 302/304 Stainless Steel
• Mounting: Surface
• Number of Gangs: 2
• Finish: High Gloss
• Includes: Mounting Screws
• Standards/Approvals: UL 514D|UL File No. E33216|cULus Listed|CSA C22.2 File No. 42.1|Federal Specification WP-455|UL 94 V-2 Flammability Rated
• Type: Mid-Sized
• Thickness: 0.032 in
• Temperature Rating: -40 to 158 Deg F
• Compliances: NAFTA, RoHS Compliant
• Certifications: UL Listed, CSA Certified
• Product Type: Decorator/GFCI Wallplate
• Product Length/Depth: 0.032 in
• Product Height: 4.87 in
• Product Width: 4.94 in
• Wallplate size: Mid-size
• Cover Type: Switch - Rocker
• Cover Design: Flat
• Gasket Included: No
