Eaton 93801-BOX cwd spec 1g dup ss plate

Product Description

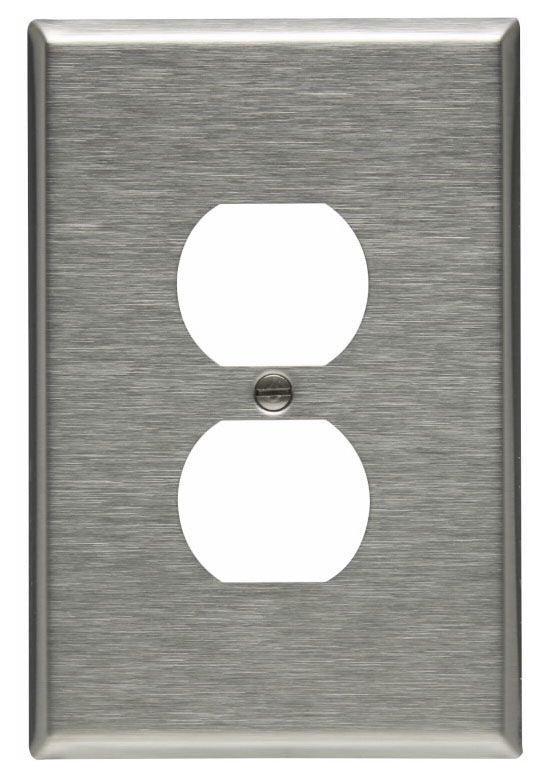

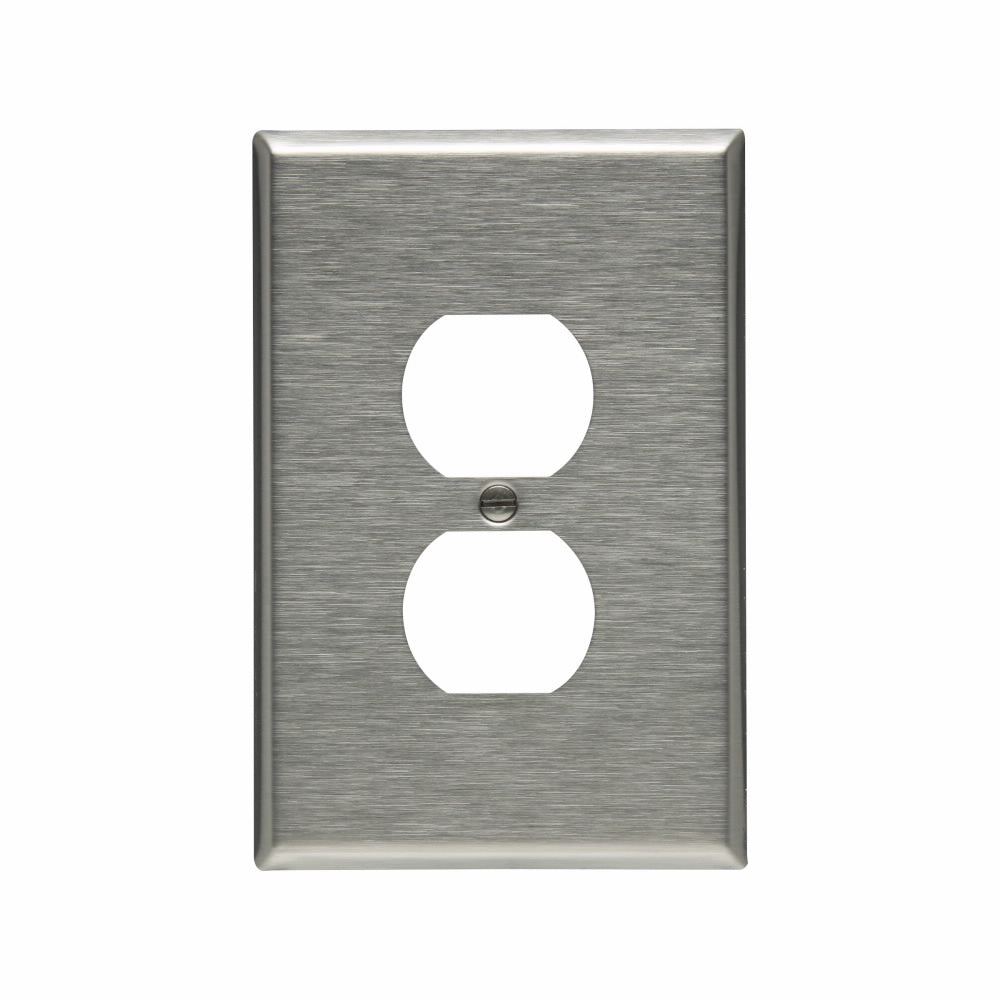

The EATON 93801-BOX Arrow Hart™ receptacle wallplate is oversized and part of the 93000 series. Constructed from 302/304 stainless steel with a brushed satin finish, it features a single gang with two ports and a duplex receptacle cutout. Designed for surface mounting, it measures 5-1/4 in H x 3-1/2 in W.

• Superior non-corrosive and non-magnetic properties
• Stainless steel alloy contains 18% chromium and 8% nickel for corrosion-resistance
• Horizontally satin brushed surface finish resists finger prints

Product Highlights

This EATON receptacle wallplate offers durability and a clean aesthetic for industrial and non-residential applications. It is UL and CSA certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 93801-BOX
• Country of Origin: CHN

Technical Specifications

• Application: Industrial and Non-Residential Applications
• Construction: Stamped
• Cutout: (1) 0.76 in H x 1.31 in W Duplex Receptacle
• Finish: Brushed Satin
• Manufacturer Part Number: 93801-BOX
• Material: 302/304 Stainless Steel
• Mounting: Surface
• Number of Gangs: 1
• Series: 93000
• Size: 5-1/4 in H x 3-1/2 in W
• Standards/Approvals: UL 514D|UL File No. E92003|CSA C22.2 File No. 42.1
• Type: Oversized
• Thickness: 0.032 in
• Temperature Rating: -40 to 158 Deg F
• Compliances: NAFTA RoHS Compliant
• Certifications: UL Listed CSA Certified
• Number of Ports: 2
